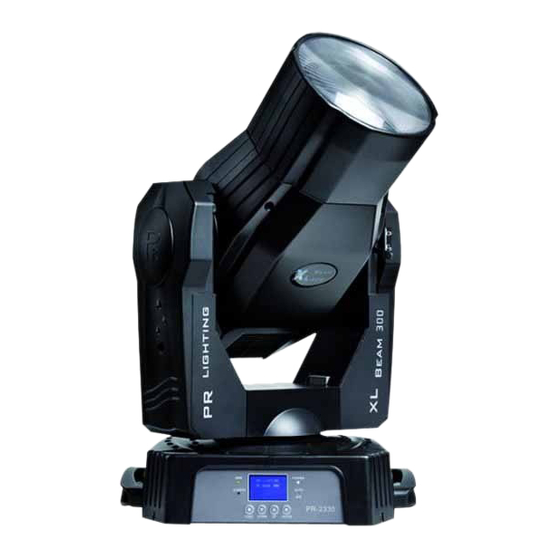

XL Beam 300
PR-2330/2330M
This product manual contains important information about the safe installation and use of this
projector. Please read and follow these instructions carefully and keep this manual in a safe place
for future reference.
PR LIGHTING LTD.
http://www.pr-lighting.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PR-2330 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PR Lighting PR-2330

Summary of Contents for PR Lighting PR-2330

  • Page 1 XL Beam 300 PR-2330/2330M This product manual contains important information about the safe installation and use of this projector. Please read and follow these instructions carefully and keep this manual in a safe place for future reference. PR LIGHTING LTD. http://www.pr-lighting.com...

  • Page 2: Table Of Contents

    INDEX SAFE USAGE OF THE PROJECTOR INSTALLING THE PROJECTOR FITTING THE LAMP POWER SUPPLY – MAINS CONTROL CONNECTIONS DMX TERMINATOR SETUP OPTIONS-PROJECTOR CONFIGURATION TO SET THE DMX START ADDRESS MASTER/SLAVE MODE STAND-ALONE MODE OPERATION MENU ERROR MESSAGES REPLACING GOBOS DMX PROTOCOL LED INDICATION MAINTENANCE LUBRICATION...

  • Page 3: Safe Usage Of The Projector

    SAFE USAGE OF THE PROJECTOR When unpacking and before disposing of the carton check there is no transportation damage before using the projector. Should there be any damage caused by transportation, consult your dealer and do not use the apparatus. The projector is for indoor use only, IP20.

  • Page 4: Fitting The Lamp

    INSTALL THE PROJECTOR Take 2 clamps and the safety cord out from the package and mount 2 clamps on the underside of fixture with 2 retainers attached to each clamp. Hang the fixture on the structure and fasten the screws attached to each clamp. (See the WARNING on the underside of the base as shown above) To pass the SAFETY CORD through 2 HOLES for safety! Always ensure that the projector is firmly anchored to avoid vibration and slipping whilst functioning.
  • Page 5 POWER SUPPLY-MAINS Connect the power cord as follows: L (live) =brown E (earth) =yellow/green N (neutral) =blue Use the plug provided to connect the mains power to the projector paying attention to the voltage and frequency marked on the panel of the projector. It is recommended that each projector be supplied separately so that they may be individually switched on and off.

  • Page 6: Dmx Terminator

    DMX TERMINATOR In the Controller mode, at the last fixture in the chain, the DMX output has to be connected with a DMX terminator. This prevents electrical noise from disturbing and corrupting the DMX control signals. The DMX terminator is simply an XLR connector with a 120Ω (ohm) resistor connected across pins 2 and 3, which is then plugged into the output socket on the last projector in the chain.

  • Page 7: Master/Slave Mode

    Press button UP and DOWN, you can set the address; Press button ENTER to confirm; In the same time. The GREEN LED will flash one time. It means the setting has been enabled. Press button FUNC, it will return to the upper menu one by one. STAND-ALONE MODE Operate the projector without connecting a controller, enable the master mode in the operation panel, the projector will run in Stand-Alone mode automatically.

  • Page 8: Operation Menu

    OPERATION MENU 1st LEVEL 2nd LEVEL 3rd LEVEL 4th LEVEL 5th LEVEL 6th LEVEL PR LIGHTING SERIES XL BEAM 300 PR LIGHTING PR LIGHTING DMX Address DMX Address PR LIGHTING PR LIGHTING Reset Reset Are you sure PR LIGHTING DMX Mode...
  • Page 9 PR LIGHTING Iris Invert PR LIGHTING Iris Invert PR LIGHTING Iris Invert PR LIGHTING Zoom Invert PR LIGHTING PR LIGHTING Zoom Invert Zoom Invert PR LIGHTING CYM Invert PR LIGHTING CYM Invert PR LIGHTING CYM Invert PR LIGHTING Defaults PR LIGHTING...
  • Page 10 Factory Setup PR LIGHTING Self Test PR LIGHTING Self Test PR LIGHTING Self Test PR LIGHTING PR LIGHTING Status = XX Lamp Status Control = XX PR LIGHTING PR LIGHTING Lamp Manual Turn Lamp On Control PR LIGHTING Turn Lamp Off...
  • Page 11 PR LIGHTING PR LIGHTING Magenta Magenta PR LIGHTING PR LIGHTING Color Color PR LIGHTING PR LIGHTING Iris Iris PR LIGHTING PR LIGHTING R Gobo Wheel R Gobo Wheel PR LIGHTING PR LIGHTING R Gobo Rotate R Gobo Rotate PR LIGHTING...
  • Page 12 PR LIGHTING PR LIGHTING R Gobo Wheel R Gobo Wheel PR LIGHTING PR LIGHTING R Gobo Rotate R Gobo Rotate PR LIGHTING PR LIGHTING Focus Focus PR LIGHTING PR LIGHTING Zoom Zoom PR LIGHTING Pan PR LIGHTING Coarse Pan Coarse 12/26...
  • Page 13 PR LIGHTING Pan PR LIGHTING Fine Pan Fine PR LIGHTING PR LIGHTING Tilt Coarse Tilt Coarse PR LIGHTING PR LIGHTING Tilt Fine Tilt Fine PR LIGHTING PR LIGHTING M-Speed M-Speed XXX（000~255） PR LIGHTING Reset Static Scn PR LIGHTING PR LIGHTING <Unlock>...

  • Page 14: Error Messages

    ERROR MESSAGES In the course of launch, XL Beam 300 examines automatically whether there are errors and if there are, it will display information as follows: Display Message Sensor Error M1 Motor 1 (Focus) error Sensor Error M2 Motor 2 (Rotating Gobo wheel) error Motor 5 (Gobo rotation) error Sensor Error M3 Sensor Error M6...

  • Page 15: Dmx Protocol

    DMX PROTOCOL Short Standard Extended FUNCTION DESCRIPTION mode mode mode 000-009 Black 010-020 Open Strobe 021-244 Strobe speed from slow to fast 245-255 Open Dimmer 000-255 Dimming from dark to light (0-100%) Dimmer Fine 000-255 Dimmer in 16 Bit precision 000-016 White 017-035...
  • Page 16 Gobo 7 113-127 128-150 Rotation speed from slow to fast 151-171 Reverse rotation from slow to fast Gobo shake 1 from slow to fast 172-183 184-195 Gobo shake 2 from slow to fast 196-207 Gobo shake 3 from slow to fast Gobo shake 4 from slow to fast 208-219 220-231...

  • Page 17: Led Indication

    LED INDICATION DMX signal OK Green No DMX signal Flash DMX signal error Yellow Setting the panel Blue Power Running slave mode or self test mode Red/Green Green Running master mode MAINTENANCE If the projector does not function, check the fuses on the power socket of the projector, they should only be replaced by fuses of the same specification.

  • Page 18: Troubleshooting

    TROUBLESHOOTING PROBLEM ACTION Check the fuse on the power socket. The projector doesn’t switch on Replace the lamp. The lamp comes on but the projector Make sure that the projector is correctly configurated. doesn’t respond to the controller Replace or repair the DMX cable. The projector only functions intermittently Make sure the fan is working and not dirty.

  • Page 19: Technical Data

    TECHNICAL DATA VOLTAGES: Electronical ballast（PR-2330）: 100V/120V/200V/220V/230V/240V AC，50/60Hz Magnetic ballast（PR-2330M）: 100V/120V/200V/220V/30V/240V AC，50/60Hz POWER CONSUMPTION: Electronical ballast（PR-2330）: 400W@220V Magnetic ballast（PR-2330M）: 470W@220V LAMP: PHILIPS MSD Gold 300/2 FastFit Colour Temperature 8000°K Lumen output 22000 lm Socket PGJX28, single ended Manufacturers Rated Lamp Life...
  • Page 20 LCD display menu in English Energy saving function of the ballast Adjustable fan speed Built-in analyzer for easy fault finding, error messages Input signal isolating protection HOUSING: Composite plastic, IP20 WEIGHT: Electronical ballast（PR-2330）: 17Kg Magnetic ballast（PR-2330M）: 24Kg SIZES: See at below 20/26...
  • Page 21 LIGHT OUTPUT: 21/26...
  • Page 22 M4-1 M4-2 M5-1 M5-2 FOCUS GOBOS GOBO ROTATING STROBE-1 STROBE-2 FROST-1 FROST-2 COLOUR IRIS MAGENTA YELLOW CYAN TILT AC Plug Filter POWER-SW Delay Fuse ELECTRONIC TRANSFORMER ELECTRONIC ELECTRONIC BALLAST BALLAST View of input side View of Control side GROUND TO IGNITOR 6 7 8 9 10 A1 A2 TILT...
  • Page 23 M4-1 M4-2 M5-1 M5-2 FOCUS GOBOS GOBO ROTATING STROBE-1 STROBE-2 FROST-1 FROST-2 COLOUR IRIS MAGENTA YELLOW CYAN TILT AC Plug Filter POWER-SW Delay Fuse 240V 230V 230V 220V 24VAC 200V 120V 100V Transformer 50Hz 60Hz Ballast CAP1 CAP2 50Hz 60Hz Ballast Thermostat Ignitor...

  • Page 24: Component Order Codes

    COMPONENT ORDER CODES NAME PART NO. QUANTITY REMARK 192010132 24V 100W POWER SUPPLY 040030039 21V 100W/230V 320W TRANSFORMER**** THERMOSTAT 190010065 75℃ 040070089 MHM 300A5ZC(with 040090055) BALLAST 040070047 230V 50/60Hz BALLAST**** 040090016 230V 50/60Hz IGNITOR**** 040090055 IGN40C 04-P IGNITOR 100050069 MSR Gold 300/2 LAMP 290151252 HTD-612-3M...
  • Page 25 25/26...
  • Page 26 PR LIGHTING LTD. 1582 Xingye Avenue, Nancun Panyu Guangzhou, 511442 China TEL: +86-20-3995 2888 FAX: +86-20-3995 2330 P/N: 320020022 Last Revision: 20100303 26/26...
