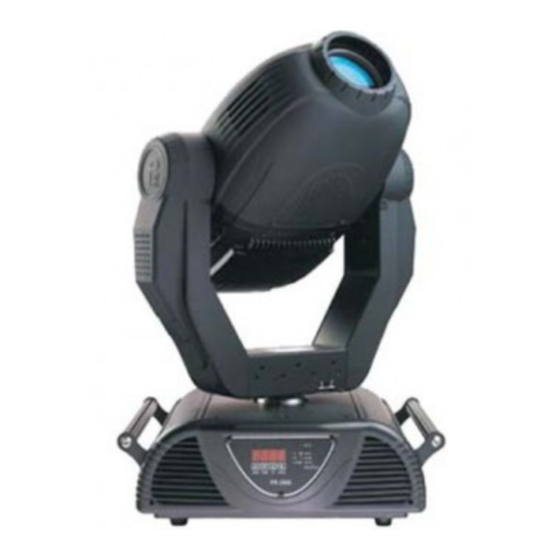

PILOT 1200
PR-2900
This product manual contains important information about the safe installation and
use of this projector. Please read and follow these instructions carefully and keep this
manual in a safe place for future reference.
PR LIGHTING LTD.
No. 571, Yingbin Road, Dashi Panyu, Guangzhou, 511430 China
h t t p : / / w w w . p r - l i g h t i n g . c o m
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for PR Lighting PR-2900
Summary of Contents for PR Lighting PR-2900
- Page 1 Please read and follow these instructions carefully and keep this manual in a safe place for future reference. PR LIGHTING LTD. No. 571, Yingbin Road, Dashi Panyu, Guangzhou, 511430 China h t t p : / / w w w . p r - l i g h t i n g . c o m...
-
Page 2: Table Of Contents
Ω clamps(Options)(2PCS) INTRODUCTION Thank you for purchasing our product PILOT 1200, PR-2900. This product manual contains important information about the safe installation and use of this projector. Please read and follow these instructions carefully and keep this manual in a safe place for future reference. -
Page 3: Safe Usage Of The Projector
SAFE USAGE OF THE PROJECTOR When unpacking and before disposing of the carton check there is no transportation damage before using the projector. Should there be any damage caused by transportation, consult your dealer and do not use the apparatus. The projector is for indoor use only, IP20. -
Page 4: Installing The Projector
INSTALLING THE PROJECTOR SAFETY WARNING CORD To pass 2 SAFETY CORDS through 4 HOLES for safety! SAFETY CORD (2PCS) HOLE SCREWS (1PCS PER CLAMP) CLAMPS (2PCS) RETAINERS HANDLES (2PCS PER CLAMP) (2PCS) SAFETY WARNING CORD To pass 2 SAFETY CORDS through 4 HOLES for safety! HOLE 4 HOLES FOR... -
Page 5: Control Connections
POWER SUPPLY - MAINS Connect the power cord as follows: L (live) =brown E (earth) =yellow/green N (neutral) =blue Use the plug provided to connect the mains power to the projector paying attention to the voltage and frequency marked on the panel of the projector. It is recommended that each projector be supplied separately so that they may be individually switched on and off. -
Page 6: Dmx Terminator
DMX TERMINATOR In the Controller mode, at the last fixture in the chain, the DMX output has to be connected with a DMX terminator. This prevents electrical noise from disturbing and corrupting the DMX control signals. The DMX terminator is simply an XLR connector with a 120Ω (ohm) resistor connected across pins 2 and 3, which is then plugged into the output socket on the last projector in the chain. -
Page 7: Functions Display
FUNCTIONS DISPLAY DISPLAY ADDR. SET ADDR. ADDR. 001 PAN ANTI-CLOCKWISE ROTATION SWITCH TILT ANTI-CLOCKWISE ROTATION SWITCH PAN\TILT 16 BIT PRECISION SWITCH CODER SWITCH(PHOTOCOUPLER POSITIONING) COLOUR FILTER LINEAR SWITCH FIXED GOBO WHEEL LINEAR SWITCH (RESERVED) LAMP SWITCH (RESERVED) (RESERVED) SLAVE IN MASTER/SLAVE MODE (RESERVED) MASTER MODE 1 (CONTINUE) - Page 8 (RESERVED) MASTER MODE 2 (RESERVED) MASTER MODE 3 (RESERVED) MASTER MODE 4 DISPLAY TIME HOUR eg."H001" MEANS 1 HOUR 8/20 Pilot 1200 manual.doc...
-
Page 9: Errors Display
ERRORS DISPLAY In the course of launch, PILOT 1200 examines automatically whether there are errors and if there are, it will display information as follows: INFORMATION ERRORS Er02 Sensor 1 temperature too high Er04 Lamp error Er05 EEPROM error Er06 Sensor 2 temperature too high Er09 Gobo rotation reset error... -
Page 10: Dmx Control Channel Functions
DMX CONTROL CHANNEL FUNCTIONS The PILOT 1200 uses 22 DMX channels. They are listed in the following table. CHANNEL DESCRIPTION 000-009 Shuttering 010-024 White 025-039 Strobe 1 040-054 Strobe 2 055-069 Strobe 3 070-084 Strobe 4 085-099 Strobe 5 100-114 Strobe 6 115-129 Strobe 7... - Page 11 078-083 Colour filter 5 084-089 Colour filter 5/colour filter 6 090-095 Colour filter 6 096-101 Colour filter 6/colour filter 7 102-107 Colour filter 7 108-113 Colour filter 7/white 114-121 Rotation speed 1 (fastest) 122-129 Rotation speed 2 130-137 Rotation speed 3 138-145 Rotation speed 4 146-153...
-
Page 12: Led Display
144-151 Rotation speed 4 152-159 Rotation speed 5 160-167 Rotation speed 6 168-175 Rotation speed 7 176-183 Rotation speed 8 (slowest) 184-191 Stop rotating 192-199 Reverse rotation speed 8 (slowest) 200-207 Reverse rotation speed 7 208-215 Reverse rotation speed 6 216-223 Reverse rotation speed 5 224-231... -
Page 13: Maintenance
MAINTENANCE If the projector’s lens becomes damaged or broken it should be replaced. If the lamp becomes damaged or deformed in any way it must be replaced. If the light from the lamp appears dim this would normally indicate that it is reaching the end of its life and it should be changed at once, aged lamps run to the extremity of their life might explode. -
Page 14: Troubleshooting
TROUBLESHOOTING PROBLEM POSSIBLE CAUSE ACTION The projector doesn’t switch -The power supply is not Check the fuse on the power present socket. -The lamp doesn’t work Replace the lamp. The lamp comes on but the -Wrong DMX configuration Make sure that the projector is projector doesn’t respond to and/or start address correctly configurated. -
Page 15: Technical Data
TECHNICAL DATA VOLTAGES: 200/220/230/240V AC, 50Hz or 60Hz POWER CONSUMPTION: 1628W@230V LAMP: Type: HTI 1200W/S discharge lamp Colour Temperature: 6000ºK Socket: SFc10-4 Manufacturers Rated Lamp Life: 750 Hours COLOURS: CYM colour mixing system 1 wheel with 7 fixed Dichroic colours plus white With variable speed bidirectional rainbow effect COLOUR TEMPERATURE CORRECTION: 2 colour temperature correction filters... - Page 16 OTHER FUNCTIONS: Adjustable Pan & Tilt speed, Projector usage time display, lamp time display. HOUSING: Metal and composite plastic (IP20) WEIGHT: 54Kg. SIZES: See Drawings 16/20 Pilot 1200 manual.doc...
-
Page 17: Electrical Diagram
ELECTRICAL DIAGRAM 17/20 Pilot 1200 manual.doc... -
Page 18: Component Order Codes
COMPONENT ORDER CODES NAME PART NO. REMARK 040030054 200/240V TRANSFORMER 040030056 220/230V THERMOSTAT 190010035 KSD020 120/15A/250V CAPACITOR 140010043 70µF/370V BALLAST 040070059 230V/50-60Hz, 575W IGNITOR 040090036 575~1200W 6~8KV LAMP 100050013 HMI 1200W/S PAN&TILT DRIVE BELT1, 2, 3 290151221 HTD459-3M-6 “O” Belt 290151302 100x3.1 FANS... - Page 19 CHANGING THE OPERATION VOLTAGE AND/OR FREQUENCY To be carried out by qualified engineers only The power input setting of the PILOT 1200 may be changed to suit the supply in your area that the unit is to be operated. The voltage and frequency are pre-set at the factory and marked on the exterior of the unit.
- Page 20 PR LIGHTING LTD. No. 571, Yingbin Road, Dashi, Panyu, Guangzhou, China Post-Code: 511430 TEL: +86-20-8478 1888 FAX: +86-20-8478 6023 P/N: 321010221 Last Revision: 10:08:2004 20/20 Pilot 1200 manual.doc...
