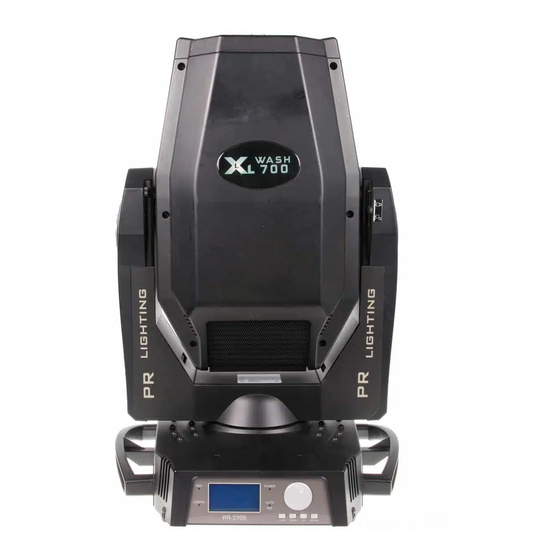

XL WASH 700
PR-2705
This product manual contains important information about the safe installation and use of this
projector. Please read and follow these instructions carefully and keep this manual in a safe place
for future reference.
PR LIGHTING LTD.
http://www.pr-lighting.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XL WASH 700 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PR Lighting XL WASH 700

Summary of Contents for PR Lighting XL WASH 700

  • Page 1 XL WASH 700 PR-2705 This product manual contains important information about the safe installation and use of this projector. Please read and follow these instructions carefully and keep this manual in a safe place for future reference. PR LIGHTING LTD.
  • Page 2 INDEX SAFE USAGE OF THE PROJECTOR INSTALLING THE PROJECTOR FITTING THE LAMP POWER SUPPLY – MAINS CONTROL CONNECTIONS DMX TERMINATOR SETUP OPTIONS-PROJECTOR CONFIGURATION TO SET THE DMX START ADDRESS OPERATION MENU ERROR MESSAGES DMX PROTOCOL LED INDICATION MAINTENANCE LUBRICATION KEEPING THE PROJECTOR CLEAN TROUBLESHOOTING TECHNICAL DATA ELECTRICAL DIAGRAM...

  • Page 3: Safe Usage Of The Projector

    SAFE USAGE OF THE PROJECTOR When unpacking and before disposing of the carton check there is no transportation damage before using the projector. Should there be any damage caused by transportation, consult your dealer and do not use the apparatus. The projector is for indoor use only, IP20.

  • Page 4: Install The Projector

    INSTALL THE PROJECTOR SAFETY CORD WARNING (2PCS) To pass 2 SAFETY CORDS through the TRUSS for safety! TRUSS CLAMPS (2PCS) HANDLES (2PCS) Take 2 clamps and 2 safety cords out from the package and mount 2 clamps on the underside of fixture with 2 retainers attached to each clamp.

  • Page 5: Power Supply-Mains

    Note: care should be taken to ensure that none of the pins touch the metallic body of the plug or each other. The body of the plug is not connected in any way. The XL WASH 700 accepts digital control signals in protocol DMX512 (1990).

  • Page 6: Dmx Terminator

    TO SET THE DMX START ADDRESS Each XL WASH 700 must be given a DMX start address so that the correct projector responds to the correct control signals. This DMX start address is the channel number from which the projector starts to “listen” to the digital control information being sent out from the controller.

  • Page 7: Operation Menu

    OPERATION MENU 1st LEVEL 2nd LEVEL 3rd LEVEL 4th LEVEL PR LIGHTING XL SERIES DMX Address=001 XL 1200 WASH DMX Address DMX Address (001-512) Reset Reset Are You Sure? DMX Mode Standard 16 DMX Mode DMX Mode Extended 16 DMX Mode...
  • Page 8 Defaults Defaults Defaults Restore Defaults Display On Always Display Mode Display Off After Delay Disp Dim Level Disp Dim Level Disp Dim Level Disp Dim Level Disp Dim Level Disp Dim Level Display Dimming Display Options Disp Dim Level Disp Dim Level Disp Dim Level Disp Dim Level Disp Dim Level...

  • Page 9: Error Messages

    ERROR MESSAGES In the course of launch, XL WASH 700 examines automatically whether there are errors and if there are, it will display information as follows: Display Message Sensor Err S1-M1 Colour wheel 1 (1# drive board motor 1) error...

  • Page 10: Dmx Protocol

    DMX PROTOCOL Short Standard Extended FUNCTION DESCRIPTION mode mode mode 000-010 Black 011-025 Open Strobe 026-225 Strobe speed from slow to fast 226-255 Open 000-007 Black Dimmer 008-255 Dimming from dark to light (0-100%) Dimmer Fine 000-255 Dimmer in 16 Bit precision 000-016 White 017-035...
  • Page 11 140-145 Rainbow rotation speed 3 146-151 Rainbow rotation speed 4 152-157 Rainbow rotation speed 5 158-163 Rainbow rotation speed 6 164-169 Rainbow rotation speed 7 170-175 Rainbow rotation speed 8 176-181 Rainbow rotation speed 9 182-187 Rainbow rotation speed 10 188-195 Stop in current position Rainbow reverse rotation speed...
  • Page 12 188-195 Stop in current position Rainbow reverse rotation speed 196-201 1(slowest) 202-207 Rainbow reverse rotation speed 2 208-213 Rainbow reverse rotation speed 3 214-219 Rainbow reverse rotation speed 4 220-225 Rainbow reverse rotation speed 5 226-231 Rainbow reverse rotation speed 6 232-237 Rainbow reverse rotation speed 7 238-243...

  • Page 13: Led Indication

    LED INDICATION DMX signal OK Green No DMX signal Flash DMX signal error Yellow Setting the panel Blue Power Running self test mode Red/Green Green Reserved MAINTENANCE If the projector’s lens becomes damaged or broken it should be replaced. If the lamp becomes damaged or deformed in any way it must be replaced.

  • Page 14: Troubleshooting

    TROUBLESHOOTING PROBLEM ACTION Check the fuse on the power socket. The projector doesn’t switch on Replace the lamp. The lamp comes on but the projector Make sure that the projector is correctly configurated. doesn’t respond to the controller Replace or repair the DMX cable. The projector only functions intermittently Make sure the fan is working and not dirty.

  • Page 15: Technical Data

    TECHNICAL DATA VOLTAGES: 100V/120V/200V/220V/230V/240V AC，50/60Hz POWER CONSUMPTION: 820W@220V LAMP: PHILIPS MSR 700 SA/2 DE Colour Temperature 7500°K Socket SFc10-4，double ended Manufacturers Rated Lamp Life 750 Hours replacement OSRAM SharXS HTI 700 W/D4/60 Colour Temperature 6000°K Socket SFc10-4，double ended Manufacturers Rated Lamp Life 750 Hours replacement COLOURS: Smooth CYM colour mixing system with macros...

  • Page 16: Beam Angle

    BEAM ANGLE: 10°narrow angle mode 15°～42° CONTROL: DMX512, 3 pin interfaces 14 channels in short mode, 17 channels in standard mode, and 23 channels in extended mode. Self-test mode OTHER FUNCTIONS: Adjustable Pan & Tilt speed Fixture and lamp usage time display LCD display with English and Chinese language menu Energy saving function of the ballast Built-in analyzer for easy fault finding, error messages...
  • Page 17 SIZES: See at below LIGHT OUTPUT: 42° （ lux ） 5880 1470 15° （ lux ） 28590 7148 3170 1780 1140 10° （ lux ） 66690 16660 7400 4160 2660 42° 10° 15° DISTANCE (m) 0.89 1.77 2.66 3.55 4.43 10°...
  • Page 18 DMX-SENS2 DMX-SENS1 LED4 LED1 LED3 LED2...

  • Page 19: Component Order Codes

    COMPONENT ORDER CODES NAME PART NO. QUANTITY REMARK POWER SUPPLY 190010098 MAINS FILTER 193020008 20A 115/250VAC THERMOSTAT 190010035 120℃ 16A/250V 16A 250V/20A 125VAC SWITCH 190010050 040070081 MHS700A5Z RC BALLAST IGNITOR 040090043 575~1200W LAMP 100050061 MSR 700 SA/2 DE TILT DRIVE BELT 290151241 HTD-750-3M PAN DRIVE BELT...
  • Page 20 PR LIGHTING LTD. 1582 Xingye Avenue, Nancun Panyu Guangzhou, 511442 China TEL: +86-20-3995 2888 FAX: +86-20-3995 2330 P/N: 321010254 Last Revision: 28:05:2007 20/20...
