PR Lighting PR-2203 XR 200 Manual

Hide thumbs

Advertisement

Table of Contents

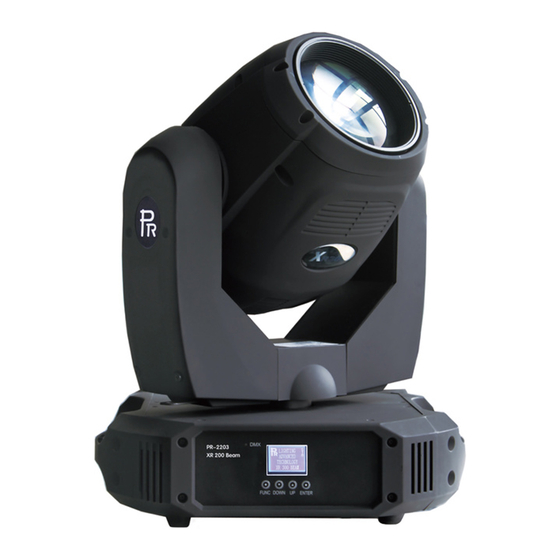

XR 200（BEAM）
PR-2203
This product manual contains important information about the safe installation and use of this
projector. Please read and follow these instructions carefully and keep this manual in a safe place
for future reference.
PR LIGHTING LTD.
http://www.pr-lighting.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PR-2203 XR 200 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PR Lighting PR-2203 XR 200

Summary of Contents for PR Lighting PR-2203 XR 200

  • Page 1 XR 200（BEAM） PR-2203 This product manual contains important information about the safe installation and use of this projector. Please read and follow these instructions carefully and keep this manual in a safe place for future reference. PR LIGHTING LTD. http://www.pr-lighting.com...

  • Page 2: Table Of Contents

    INDEX SAFE USAGE OF THE PROJECTOR INSTALLING THE PROJECTOR FITTING LAMP POWER SUPPLY – MAINS CONTROL CONNECTIONS DMX TERMINATOR SETUP OPTIONS-PROJECTOR CONFIGURATION TO SET THE DMX START ADDRESS STAND-ALONE MODE MASTER/SLAVE MODE OPERATION MENU REPLACING GOBOS DMX PROTOCOL INDICATION OF LED DIGITAL TUBE MAINTENANCE LUBRICATION KEEPING THE PROJECTOR CLEAN...
  • Page 3 SAFE E USAGE E OF THE E PROJE ECTOR When unpa acking and bef fore disposing g of the carton n check if there e is no transpo ortation damag ge before usin ng the projecto Should ther re be any dam mage caused b by transportat ion, consult yo...

  • Page 4: Fitting The Lamp

    INSTALL THE PROJECTOR SAFETY CORD WARNING CLAMP To pass 1 SAFETY CORD through 2 holes for safety CONTROL PANEL HANDLE Take 2 clamps and 1 safety cords out from the package and mount 2 clamps on the underside of fixture with 4 retainers attached to each clamp.
  • Page 5 POWER SUPPLY-MAINS Connect the power cord as follows: L (live) =brown E (earth) =yellow/green N (neutral) =blue Use the plug provided to connect the mains power to the projector paying attention to the voltage and frequency marked on the panel of the projector. It is recommended that each projector be supplied separately so that they may be individually switched on and off.

  • Page 6: Dmx Terminator

    DMX TERMINATOR In the Controller mode, at the last fixture in the chain, the DMX output has to be connected with a DMX terminator. This prevents electrical noise from disturbing and corrupting the DMX control signals. The DMX terminator is simply an XLR connector with a 120Ω (ohm) resistor connected across pins 2 and 3, which is then plugged into the output socket on the last projector in the chain.

  • Page 7: Operation Menu

    Press button ENTER to confirm; after powered next time, It will display latest values. Press button FUNC, it will return to the upper menu one by one. STAND-ALONE MODE Operate the projector without connecting a controller, enable the master mode in the operation panel, the projector will run in Stand-Alone mode automatically.
  • Page 8 FACT （Factory Default Settings?） TRmd (Parameters transmitted(2)?) TImE XXXX (Lighting Fixture Use Time) (Time displayed) INFO TLAM XXXX (Information) (Lamp Use Time) (Time displayed) X.X.X (Version No.) (Software Version No.) (Without Strobe) STOB STO1 (Strobe) (Strobe 1) STO2 (Strobe 2) TEST (White) (Test Modes)

  • Page 9: Replacing Gobos

    (DMX Mode) PR XX (Preset Memory,PR01-PR16) 0-255 (Strobe) 0-255 (Dimming) mENU (Operating Menu) 0-255 (Color Wheel) ET XX (User Memory,ET01~ET16） 0-255 (Fixed Gobo Wheel) 0-255 (Prism Wheel) 0-255 (Prism Rotation) 0-255 (Focusing) 0-255 (Pan) 0-255 (Tilt) CH10 0-255 (Pan and Tilt Speeds) CH11 0-255 Scene hold time...
  • Page 10 For the replacement of color wheels, it can be directly taken off by hands with due care. New color filters must be tightly glued in right direction to the color wheel.. Gobo Replacement: Gobo wheel is taken off in the same direction as color wheel after it is taken off by hand. After the new gobos are tightly inserted into the gobo wheel in the right direction and fixed gobo wheels installed, then the color wheel should be re-installed.

  • Page 11: Dmx Protocol

    DMX PROTOCOL Short Standard FUNCTION DESCRIPTION mode mode Strobe Open 000-015 Strobe from Slow to Fast 016-255 Dimmer From dark to bright 000-255 000-095 White 096-103 Color 1 104-111 Color 2 112-119 Color 3 120-127 Color 4 128-135 Color 5 136-143 Color 6 144-151...
  • Page 12 128-135 Gobo 16 Gobo 17 136-143 144-159 Rotation （From slow to Fast） Reverse Rotation （From slow to 160-175 Fast） 176-183 Shake 1（From Fast to slow） 184-191 Shake 2 （From Fast to slow） 192-199 Shake 3（From Fast to slow） 200-207 Shake 4（From Fast to slow） 208-215 Shake 5（From Fast to slow）...

  • Page 13: Keeping The Projector Clean

    INDICATION OF LED DIGITAL TUBE DMX signal OK Decimal point of the first digital tube No DMX signal Master / slave signal is OK Decimal point of the third digital tube No master / slave signal When setting master mode Decimal point of the fourth digital tube When setting slave mode Parameters that LED digital tubes display...

  • Page 14: Troubleshooting

    TROUBLESHOOTING PROBLEM ACTION Check the fuse on the power socket. The projector doesn’t switch on Replace the lamp. The lamp comes on but the projector Make sure that the fixture’s start address is right doesn’t respond to the controller Replace or repair the XLR singal cable. Make sure the fan is working well or fans and their filters not The projector only functions intermittently blocked...

  • Page 15: Technical Data

    TECHNICAL DATA VOLTAGES: 100V/200V/220V/230V/240V AC，50/60Hz POWER CONSUMPTION: 280W@220V LAMP: PHILIPS MSD Platinum 5R Colour Temperature 8000°K Manufacturers Rated Lamp Life 2000 小时 Color s: 1 Color Wheel 14 dichroic colour filters plus white variable speed and bi-directional rainbow effect linear colour changing is available GOBOS: 1 Fixed gobo wheel : 17 interchangeable gobos+ white...
  • Page 16 10 channels in short mode, 14channels in standard mode Self-test mode OTHER FUNCTIONS: Adjustable Pan & Tilt speed Fixture and lamp usage time display Modular construction for easy maintenance DMX512 wireless receiver DMX512 wireless transmitter (optional) HOUSING: Composite plastic, IP20 Power driven water proof cover, optional, water proof system control by DMX, IP44 WEIGHT: 16Kg...
  • Page 17 17/20...
  • Page 18 VLED VLED...

  • Page 19: Component Order Codes

    COMPONENT ORDER CODES NAME PART NO. QUANTITY REMARK 5R Ballast 040070109 100070026 5R Lamp 200W Power Switch 190010110 190010116 400W Power Switch 270041065 T20A250V 6.3*32mm Fuse 290151322 HTD-531-3M Pan Driver Belt Tilt Driver Belt 290151331 HTD-399-3M 290151255 HTD-270-3M Prism Wheel Belt 290151310 72MXL Focusing Belt...
  • Page 20 PR LIGHTING LTD. 1582 Xingye Avenue, Nancun Panyu Guangzhou, 511442 China TEL: +86-20-3995 2888 FAX: +86-20-3995 2330 P/N: 320020086 Version: 20120628 (Preliminary） 20/20...
