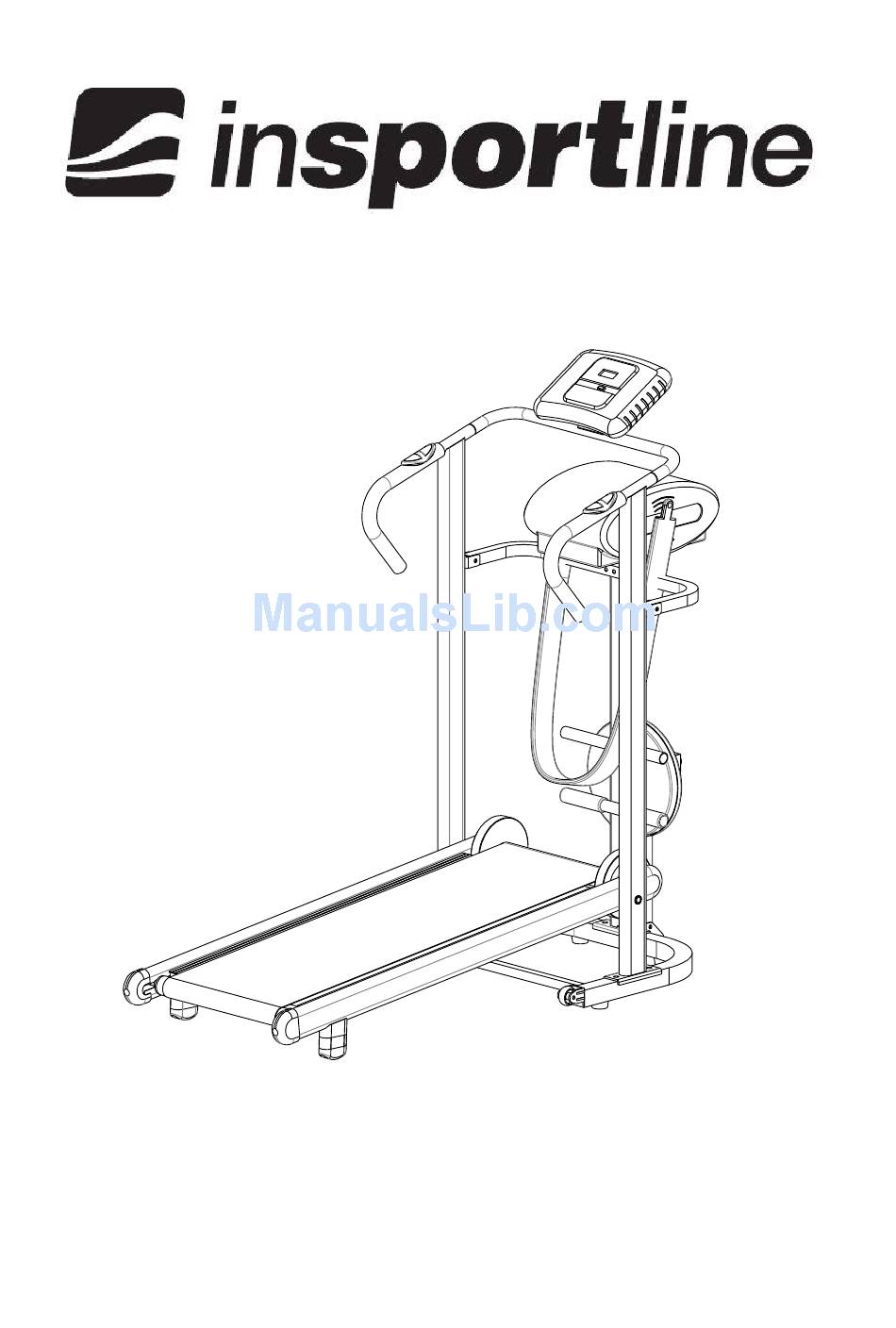

- Page 1 USER MANUAL – EN IN 6934 Treadmill inSPORTline Bajamo IMPORTANT: Read all instructions carefully before using this product. Retain this Owner’s manual for future reference.
- Page 2 CONTENTS WARNING..............................3 SAFETY TIPS ..............................3 ASSEMBLY INSTRUCTION ........................4 PARTS LIST ............................... 4 ASSEMBLY INSTRUCTIONS FOR TREADMILL ..................5 FOLDING ................................7 THE MAINTENANCE AND THE ADJUSTMENT OF THE MACHINE ..........8 Záložka není TERMS AND CONDITIONS OF WARRANTY, WARRANTY CLAIMSChyba! definována.
-
Page 3: Safety Tips
1. WARNING Exercise programs of any kind present an inherent danger to the participant. Serious or fatal injury can occur. Consult your doctor before beginning any exercise program. All equipment and accessories are intended to be used by adults only in the manner shown / illustrated / described. -
Page 4: Assembly Instruction
3. ASSEMBLY INSTRUCTION The parts of this machine are as follows, open the packing box, and take out the following parts. PARTS LIST Description Spec. Description Spec. Main frame Handgrip cover Base Twister Vertical tube(L) Connect post Vertical tube(R) Massage frame Meter Post Massager Meter... - Page 5 ASSEMBLY INSTRUCTIONS FOR TREADMILL A flat area of 4’ x 3’ will be required to properly assemble the treadmill. Adjustable Wrench and M8 and M10 Allen Wrench will be required to complete the assembly. Step 1: 1. Open the packing box, take out the above parts, and then put them on the flat floor.
- Page 6 Press the handgrip cover (12) to the vertical tube. Step 5: Please fix the connecting tube (14) to the vertical tube with inner hex cylinder head bolt M8 x 40 (17) and loose-proofed nut (19) and then fasten the massage frame (15) to the base (2) with hexagonal bolt M10 x20 (7) and flat washer (8).
- Page 7 Step 7: Connect the twister (13) to the base (2) with inner hex cylinder head bolt M8 x57 (18), loose-proofed nut (19) and spring pin (20). Step 8: Dismount the bolt from the adjustable post (21) first and then fix it to the mainframe (1) with inner hex cylinder head bolt M8 x40(17) and loose-proofed nut (19).
- Page 8 4. THE MAINTENANCE AND THE ADJUSTMENT OF THE MACHINE Adjustment of the Machine: Before delivery of the product, the worker and the QC have adjusted the running belt to the best condition. If running belt deviate, you can adjust it through the Belt Adjustment Bolt. You can adjust the running belt left or right toward the center position by adjust the Belt Adjustment Bolt clockwise or anticlockwise.
