USER MANUAL – EN

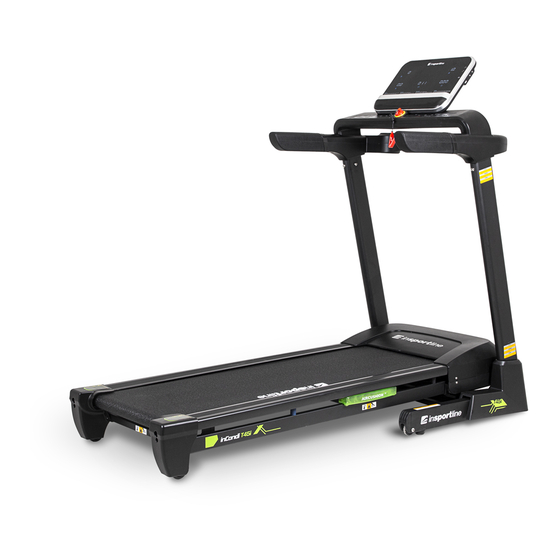

IN 21320 Treadmill inSPORTline inCondi T45i

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the inCondi T45i and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Insportline inCondi T45i

Summary of Contents for Insportline inCondi T45i

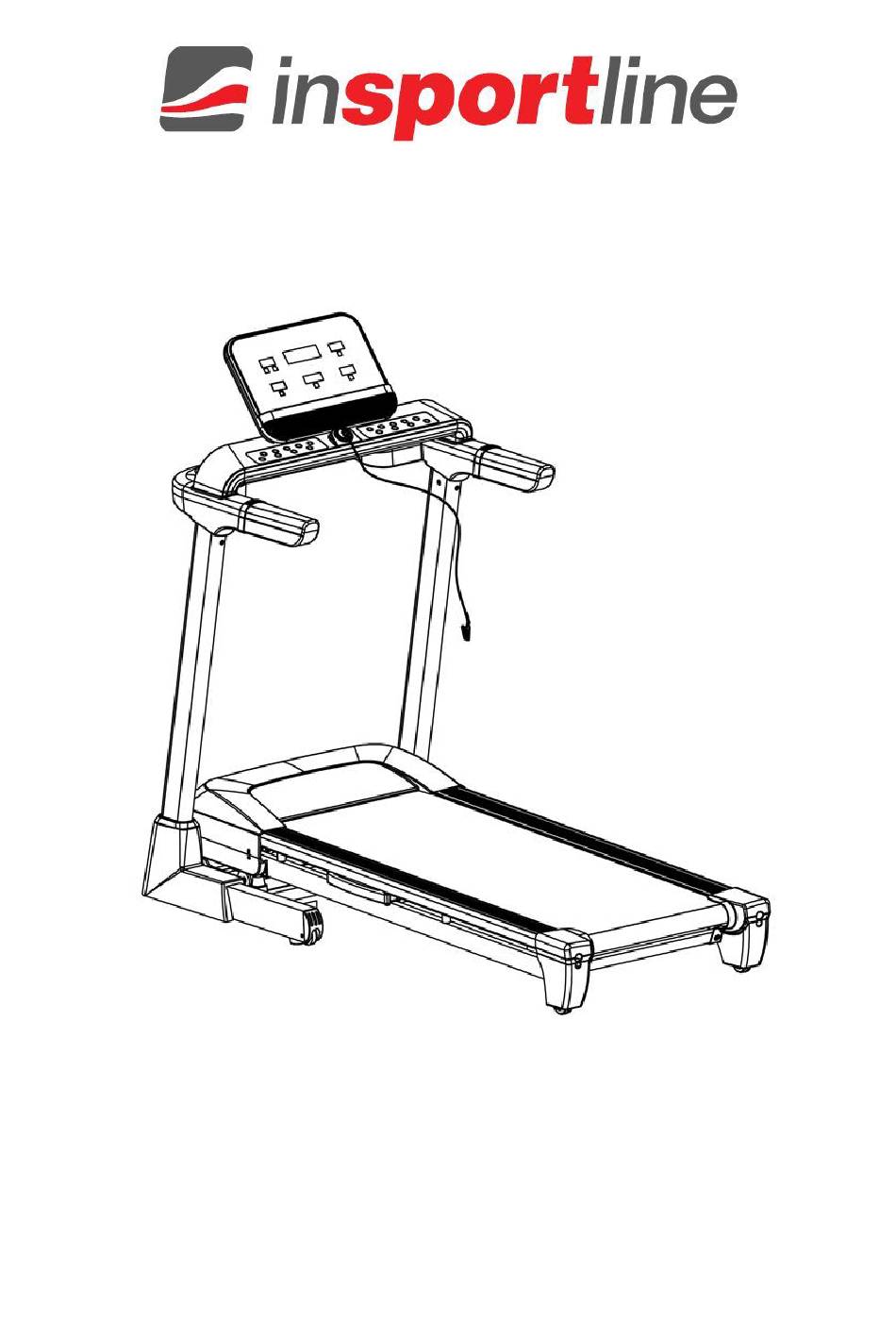

  • Page 1 USER MANUAL – EN IN 21320 Treadmill inSPORTline inCondi T45i...

  • Page 2: Table Of Contents

    CONTENTS SAFETY INSTRUCTIONS ........................3 ASSEMBLY ............................. 4 TRANSPORTATION ..........................17 CONSOLE ............................. 18 MAINTENANCE GUIDE ........................21 ADJUSTING THE RUNNING BELT....................21 LUBRICATING THE TREADMILL ..................... 22 TROUBLESHOOTING .......................... 22 DIAGRAM .............................. 24 PARTS LIST ............................25 ENVIRONMENT PROTECTION ......................27 TERMS AND CONDITIONS OF WARRANTY, WARRANTY CLAIMS ..........

  • Page 3: Safety Instructions

    SAFETY INSTRUCTIONS • Read the manual carefully and keep it for future reference. • Always clip the safety key to your clothes or belt before starting exercising. • Move naturally, forward. Do not look on your feet. Only for one person can use the product on the same time.

  • Page 4: Assembly

    • Do not expose to direct sunlight. • Do not please in areas with high humidity (pools, sauna etc.) • Continuous use cannot be longer than 2 hours. • If the treadmill is not in use, remove the safety key. •...
  • Page 5 Safety key Console holder with handlebars Allen bolt M8 x 50 Allen bolt M8 x 25 Allen bolt M8 x 15 Screw ST4,8 x 8 Ø8 Washer...
  • Page 6 STEP 1 Carefully pull out and check all contents from the box.
  • Page 7 STEP 2 Lift the posts (A06 and A07) and secure the posts with 2x bolts (E07), 4x washers (E28) and 2x bolts (E14).
  • Page 8 STEP 3 Slide the pillar covers (C27 and C28) onto the pillars (A06 and A07).
  • Page 9 STEP 4 Connect the cable (D06) from the post (A07) to the cable (D05) from the console bracket (D05). Attach the console bracket (E) to the posts (A06 and A07) with 4x bolts (E14) and 4x washers (E28). When connecting the cable, be careful not to pinch the cable between the console bracket and the post.
  • Page 10 STEP 5 Connect the cables from the console (C) to the console bracket (E). Be careful not to pinch the cables.
  • Page 11 STEP 6 Secure the console (C) to the console bracket (E) with 3x bolts (E12).
  • Page 12 STEP 7 Attach the cover (C07) with 2x screws (E23).
  • Page 13 STEP 8 Cut the tape.
  • Page 14 STEP 9 Attach the support bar (G) to the support with the washer (C29) and the bolt (E14).
  • Page 15 STEP 10 Attach the support bar (G) to the frame with the washer (C29) and the bolt (E14).
  • Page 16 STEP 11 Attach the safety key to turn on and use the treadmill.

  • Page 17: Transportation

    TRANSPORTATION Lift the treadmill by the rear part and secure with the bracket. Then tip and move the treadmill using the transport wheels. If the belt is heavy, ask another person for help.

  • Page 18: Console

    CONSOLE Button function: 1. INSTANT INCLINE: Press 3, 6, 9, 12 to quickly change incline.. 2. VOLUME - / PREVIOUS: Press to play previous song or hold to decrease volume. 3. VOLUME + / NEXT: Press to play next song or hold to increases volume. 4.
  • Page 19 Console function: 1. Speed: Displays the current speed. Use the speed adjustment buttons to adjust the speed. 2. Incline: Displays the incline. Use the incline adjustment buttons to adjust the incline. 3. Pulse: Displays the current heart rate. Grasp the sensors on the handles. The sensors start detecting the pulse after 5 seconds.
  • Page 20 LUBRICATION NOTIFICATION The treadmill automatically alerts the user. A warning is displayed after 300 km. The console will sound a beep every 10 seconds and the OIL will be displayed. Read the user manual before lubricating and then apply the lubricant to the center of the treadmill. After lubrication, press the STOP button for 3 seconds to turn off the alarm and notification.

  • Page 21: Maintenance Guide

    MAINTENANCE GUIDE General cleaning will help to prolong the life and improve performance on your treadmill. Keep the unit clean and maintained by dusting the components on a regular basis, cleaning the two exposed sides of the running belt to prevent dust from accumulating underneath the belt. Keep your running shoes clean so that dirt from the shoes does not wear the running belt.

  • Page 22: Lubricating The Treadmill

    LUBRICATING THE TREADMILL Lubricating the running belt & the running board is essential as the friction affects the life span and operations of the treadmill. Therefore, we suggest you to inspect the running belt regularly. WARNING: Always unplug the treadmill from the electrical outlet before cleaning, lubricating, or repairing the unit.
  • Page 23 Wires from the computer and Check wire connections from the bottom control board computer to the control board. properly connected. Computer not working If the transformer has become Transformer is damaged. damaged, contact customer service. Check wire connections from the E01 &...

  • Page 24: Diagram

    DIAGRAM...

  • Page 25: Parts List

    PARTS LIST Name Spec. Qty. Name Spec. Qty. Base frame Pulse base Main frame Handle bar Incline bracket Water bottle cage Console base bracket Safety key base Console fixed bracket Motor top cover Left upright tube Motor bottom cover Right upright tube Left back end cover Motor base bracket Right back end cover...
  • Page 26 Button board connecting M8*25 Bolt wire M8*20 Control board Bolt Communicate top signal Bolt M8*15 wire M6*55 Top signal wire Bolt M6*35 Middle signal wire Bolt M6*25 Bottom signal wire Bolt Hand pulse top signal M5*12 Bolt wire Hand pulse bottom signal Bolt M5*8 wire...

  • Page 27: Environment Protection

    Audio input and output Volume adjust wire connecting wire Speaker connecting Mp3 wire wire Power amplifier ST2.9*8 Screw connecting wire 1 Power amplifier connecting wire 2 ENVIRONMENT PROTECTION After the product lifespan expired or if the possible repairing is uneconomic, dispose it according to the local laws and environmentally friendly in the nearest scrapyard.
  • Page 28 Dělnická 957, Vítkov, 749 01 Headquaters: Warranty & Service: Čermenská 486, Vítkov 749 01 CRN: 26847264 VAT ID: CZ26847264 Phone: +420 556 300 970 E-mail: eshop@insportline.cz reklamace@insportline.cz servis@insportline.cz Web: www.inSPORTline.cz inSPORTline s.r.o. Headquaters, warranty & service center: Električná 6471, Trenčín 911 01, SK...
  • Page 29 CRN: 36311723 VAT ID: SK2020177082 Phone: +421(0)326 526 701 E-mail: objednavky@insportline.sk reklamacie@insportline.sk servis@insportline.sk Web: www.inSPORTline.sk...
