Installing the Rack Mounting Kit

Consider rack stability when deciding where to place the StorageLoader!

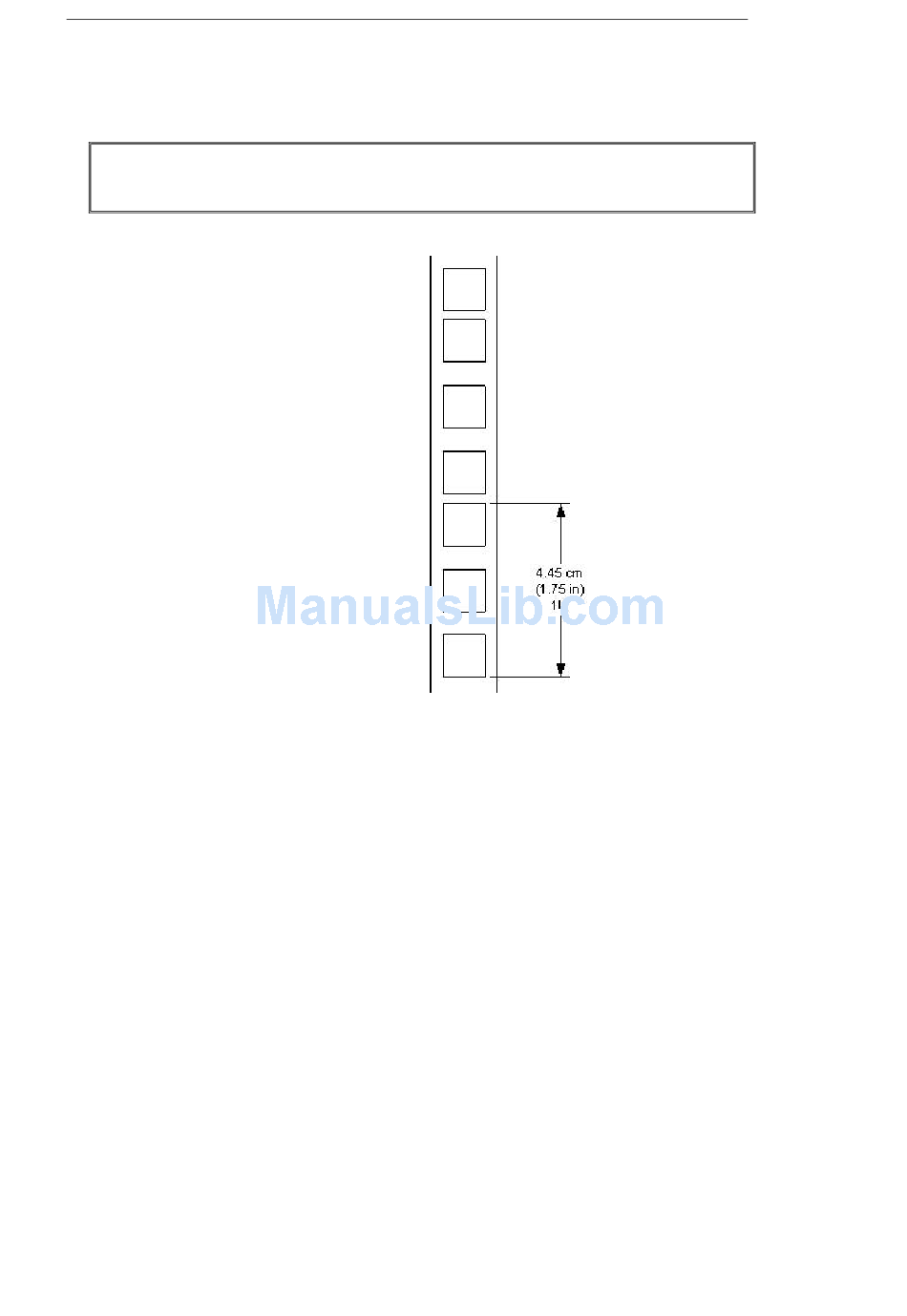

StorageLoader 1U uses 1U of
vertical rack space. The rails must
be installed in a full U position
(The bottom of the rails must be
aligned with the bottom of a U).

Installing the Rail Left Assembly

1. Measure the length between the rear rack mount rails and the front rack mount
rails. If the measurement is shorter than the StorageLoader, move the two sets of
screws M4x12, washers and nuts shown in the next figure.
2. Adjust the "Rail Left Assembly" to fit the measurement in step 1.
3. Use a 7 mm open-end wrench together with the screwdriver to tighten the two
M4x12 screws to fix the rail length.
NOTE! Using more than two screws will increase the stability of the Rack
Mounting Kit.
4. Place the "Rail Left Assembly" on the left side of the rack, between the rear rack
mount rail and the front rack mount rail.
5. Mount the "Rail Left Assembly" at desired height using one M6x12 screw in
front (upper hole in rail only) and two M6x12 screws backside.
