Rack Installation

This StorageLoader is designed for use in 19" rack system using 1U of rack space.
The weight of the unit and the length of the power cord and the SCSI cable restrict
the placement. We recommend that you mount the StorageLoader in a clean
environment and away from the floor.
Attention: The StorageLoader is designed to operate in a horizontal position. Do not
attempt to operate the StorageLoader in any other position than horizontally. Also be
sure that:
• The airflow around the front and back of the StorageLoader is not obstructed.
• There is a minimum of 60cm free space in front of the unit to allow the
operator to safely remove the magazines.
• The display and operator controls are easily accessed.
NOTE! The StorageLoader can be used both as a desktop unit and inside a 19" rack
enclosure using the special Rack Mounting Kit.
The Rack Mounting Kit includes the following items:
• Rail Left Assembly
• Rail Right Assembly
• Screw M6x12 (6 pieces)
• Screw M5x8 (2 pieces)
Recommended mounting tools:
• Folding rule or tape measure
• Screwdriver
• 7 mm open-end wrench
Back

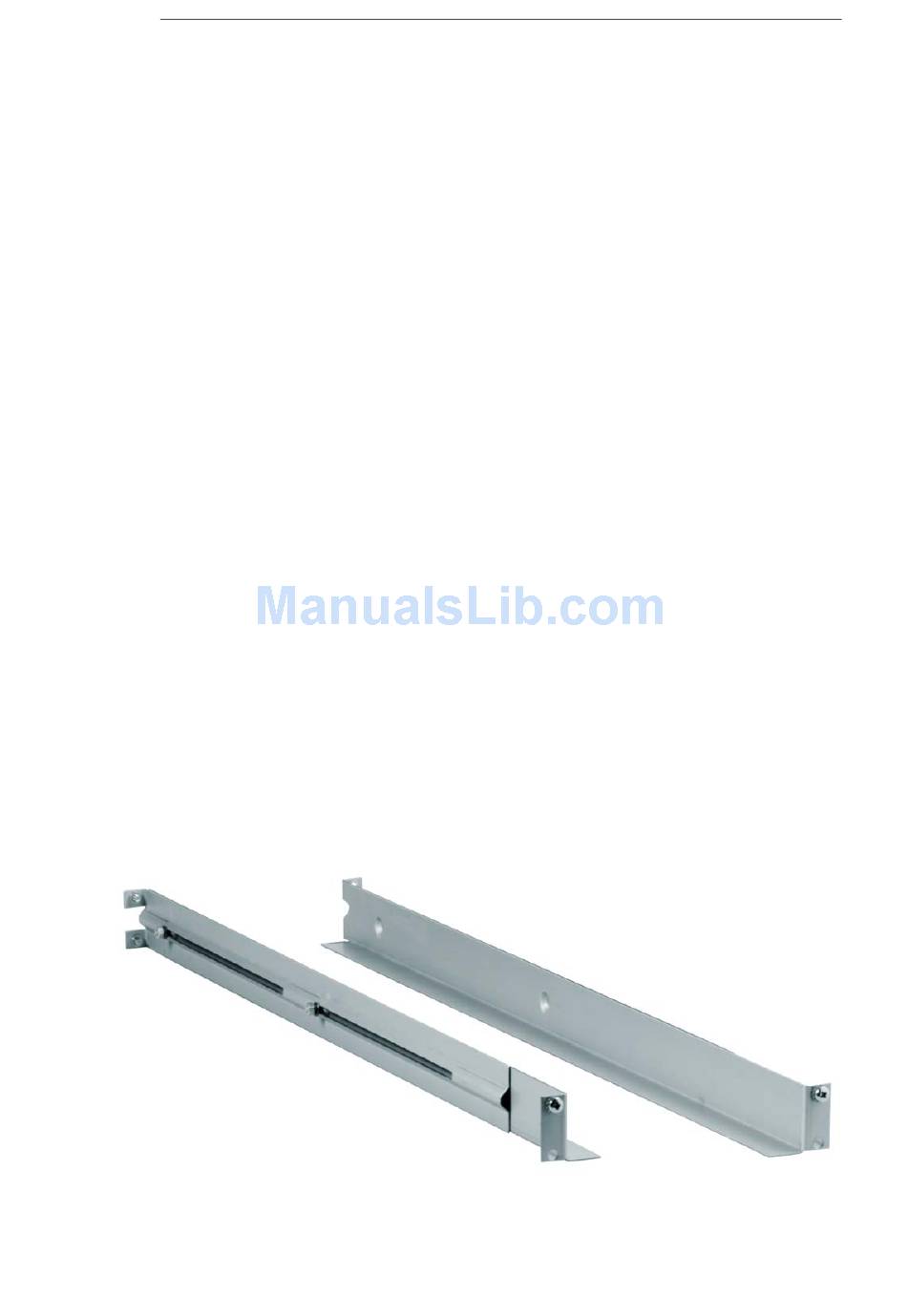

Rail Left Assembly
StorageLoader Quick Installation Guide
StorageLoader
Rail Right Assembly
Front
7
