Removing the Transport Lock

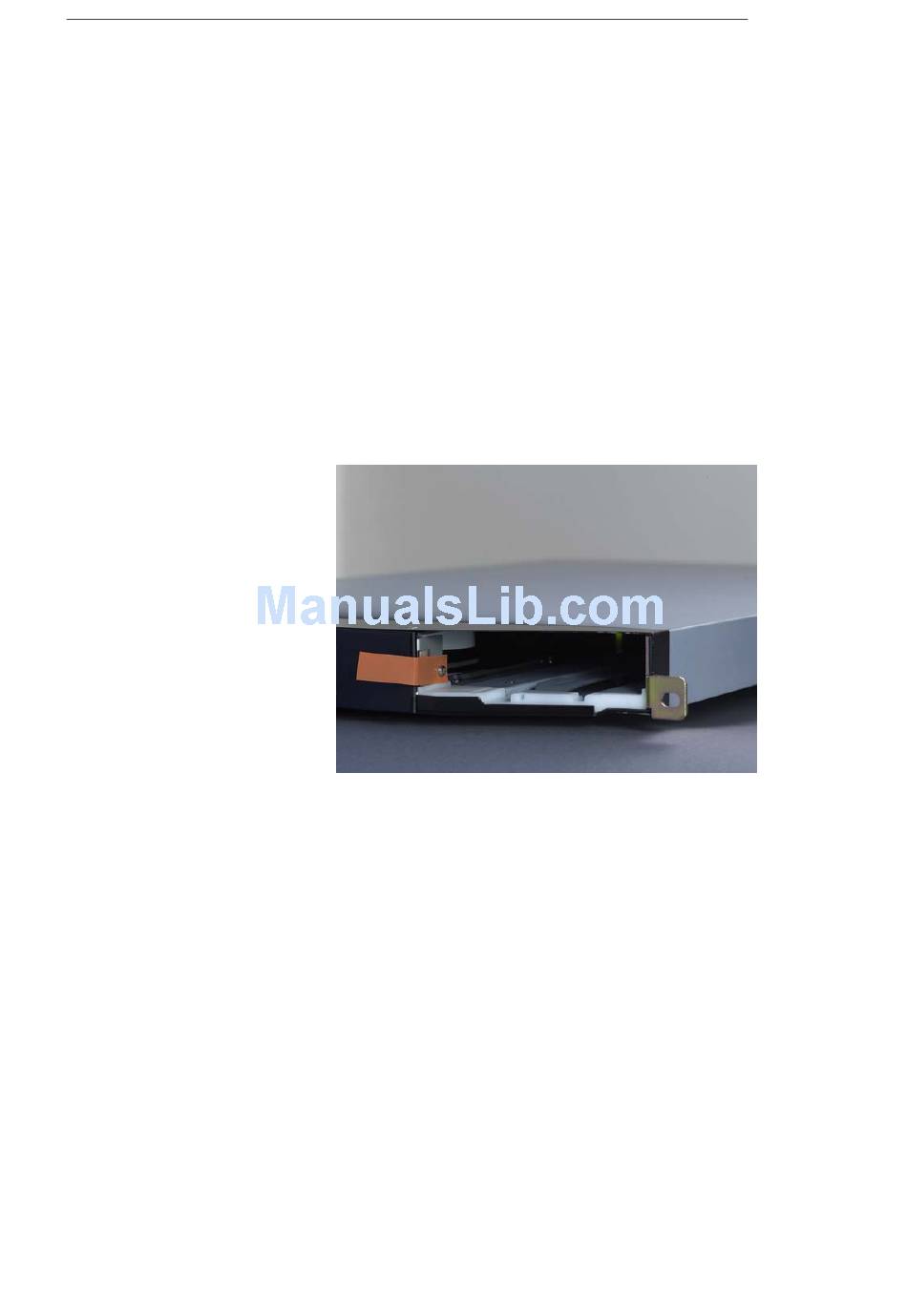

The robot mechanism is protected from damage during shipment with a screw
mounted through the display unit bracket into the robot assembly. The screw is
marked with a red plastic tab protruding between the right magazine and the front
panel assembly.
The locking screw must be removed before the StorageLoader can operate
normally.
The locking screw will be detected when the loader is powered on. The right
magazine will then be ejected and the display will show a message indicating that the
locking screw has been detected.
Pull the magazine carefully out and keep it in level with the loader. Use one hand
under the magazine to prevent the back of the magazine to fall down when it leaves
the magazine bay.
Remove the locking screw
with a Phillips
screwdriver.
Reinsert the magazine by
pushing it in until it snaps
into locked position.
The loader will now continue
its Power on Sequence.
NOTE! Keep the screw in a safe place. You will need it to lock the robot if you
need to ship it back to your StorageLoader supplier for service or repair.
IMPORTANT: The warranty does not cover damage to the loader, shipped without
the locking screw properly installed.
