InsTAllATIon - venTIng
section C – horizontal, Category III vent system
Installation
C1. This section applies to horizontally vented Category III
vent systems and is in addition to "Section A – General
Instructions – All Units".
C2. Horizontal vent systems terminate horizontally (sideways).
C3. All seams and joints must be sealed with metallic tape or
silastic suitable for temperatures up to 400°F. Wrap the
tape two full turns around the vent pipe. For single wall vent
systems, one continuous section of double wall vent pipe
may be used within the vent system to pass through the wall
to the listed vent cap. Under no circumstances should two
sections of double wall vent pipe be joined together within
one vent system due to the inability to verify complete seal of
inner pipes. Refer to instruction A10 in "Section A – General
Instructions – All Units" for attaching double wall pipe to
single wall pipe.
C4. Refer to Table 9.1 for total minimum and maximum vent
lengths, making the system as straight as possible. The
equivalent length of a 90° elbow is 6' for 5" diameter and
7' for 6" diameter.
C5. All horizontal Category III vents must be terminated with a
listed vent cap. The cap must terminate a minimum distance
beyond the exterior wall surface as shown in Figure 9.2 and
Table 9.1. The vent must be supported as shown in Figure
9.1. Precautions must be taken to prevent degradation of
building materials by flue products.
Table 9.1 - dimension Between vent Cap and
exterior Wall
vent Terminal
Selkirk, Starkap, or Constant Air-Flo 2433
Gary Metals 1092 or Modine 5H072285
Tjernlund VH1

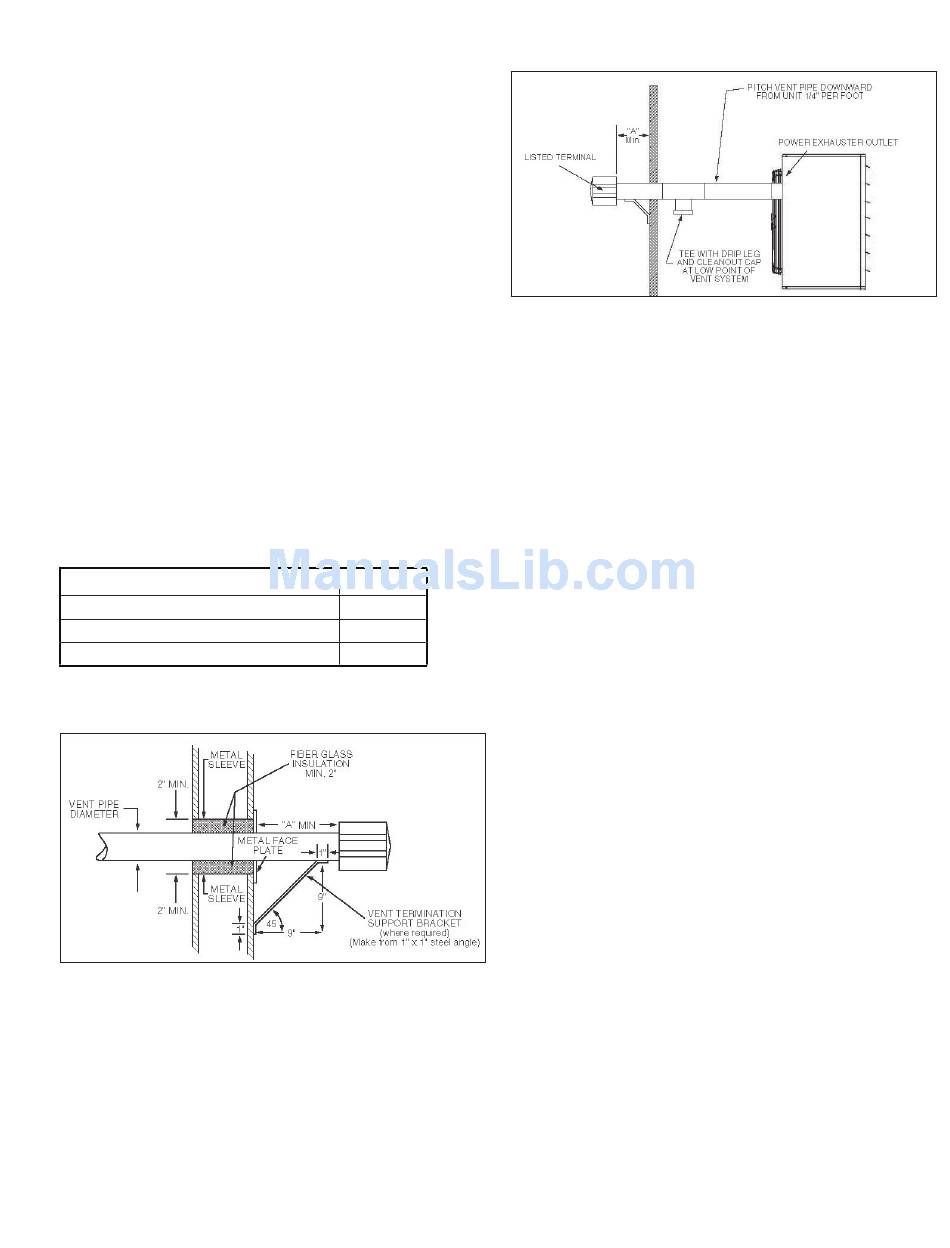

figure 9.1 - exhaust vent Construction Through
Combustible Walls and support Bracket
C6. When condensation may be a problem, the vent system shall
not terminate over public walkways or over an area where
condensate or vapor could create a nuisance or hazard or
could be detrimental to the operation of regulators, relief
openings, or other equipment.
C7. The venting system must be exclusive to a single unit, and
no other unit is allowed to be vented into it.
C8. When vented horizontally, maintain a 1/4" per foot rise away
from the heater and place a drip leg with clean out near the
unit as shown in Figure 9.2.
figure 9.2 - horizontal venting
C9. For a vent termination located under an eave, the distance
C10. Once venting is complete, proceed to the section titled
"A" min.
12"
6"
0"
6-580.7
of the overhang must not exceed 24". The clearance to
combustibles above the exterior vent must be maintained
at a minimum of 12". Consult the National Fuel Gas Code
for additional requirements for eaves that have ventilation
openings.
"Installation – Gas Connections".
