WARNING
1. Disconnect power supply before making
wiring connections to prevent electrical
shock and equipment damage.
2. Installation of wiring must conform with
local building codes, or in the absence
of local codes, the National Electric
Code, ANSI/NFPA 70 – latest edition.
Unit must be electrically grounded in
conformance to this code. In Canada,
wiring must comply with CSA C22.1,
Electrical Code.
3. The unit must be wired strictly in
accordance with the wiring diagram
furnished with the unit. Any wiring
different from the wiring diagram could
result in a hazard to persons and
property.
IMPORTANT
1. The use of this manual is specifically
intended for a qualified installation and
service agency. A qualified installation
and service agency must perform
all installation and service of these
appliances.
2. These instructions must also be used
in conjunction with the Installation and
Service Manual originally shipped with
the appliance, in addition to any other
accompanying component supplier
literature.
PLEASE BE SURE TO LEAVE IT WITH THE OWNER WHEN YOU LEAVE THE JOB.

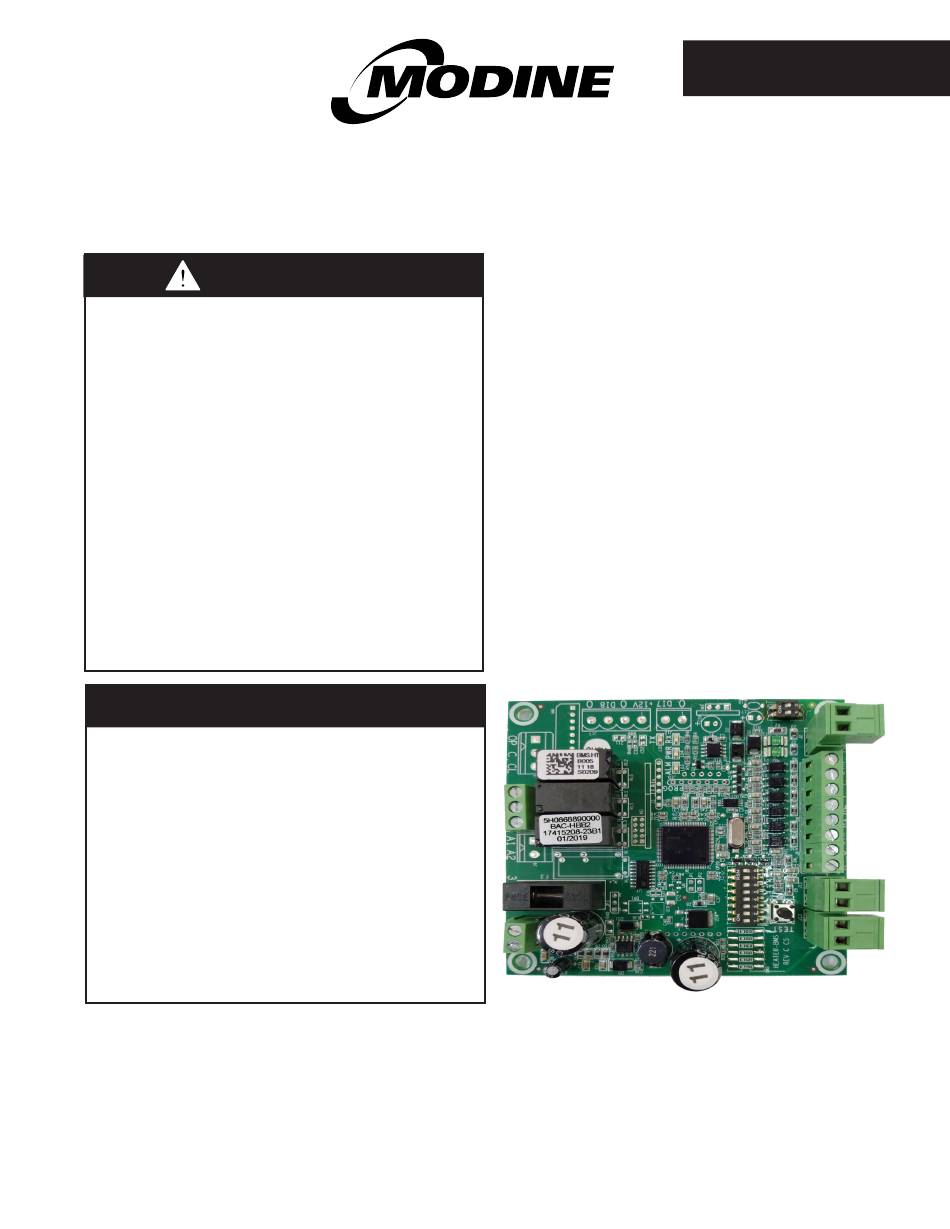

BMS CONTROL SYSTEM MANUAL
Models PTP/BTP,PTC/BTC,PTS/BTS,PDP/BDP
THIS MANUAL IS THE PROPERTY OF THE OWNER.
Inspection on Arrival
1. Inspect unit upon arrival. In case of damage, report it
immediately to transportation company and your local
Modine sales representative.
2. Check rating plate on unit to verify that power supply and
motor specification requirements meets available electric
power at the point of installation.
3. Inspect unit upon arrival for conformance with description of
product ordered (including specifications where applicable).
General Information
Installation and wiring of these electric unit heaters must
conform to all applicable local codes and the National Electric
Code. Wiring of these unit heaters should only be performed by
a qualified electrician.
Table of Contents
General Information ................................................................... 1
Features and Specifications ...................................................... 2
BMS Functions .......................................................................... 3
Wiring Connections Unit Mounting ......................................... 4,5
BMS Values Installation .......................................................... 6,7
Troubleshooting. ..................................................................... 8,9
6-520.3
5H0827570000
June, 2022
