Workgroup Switch Configuration

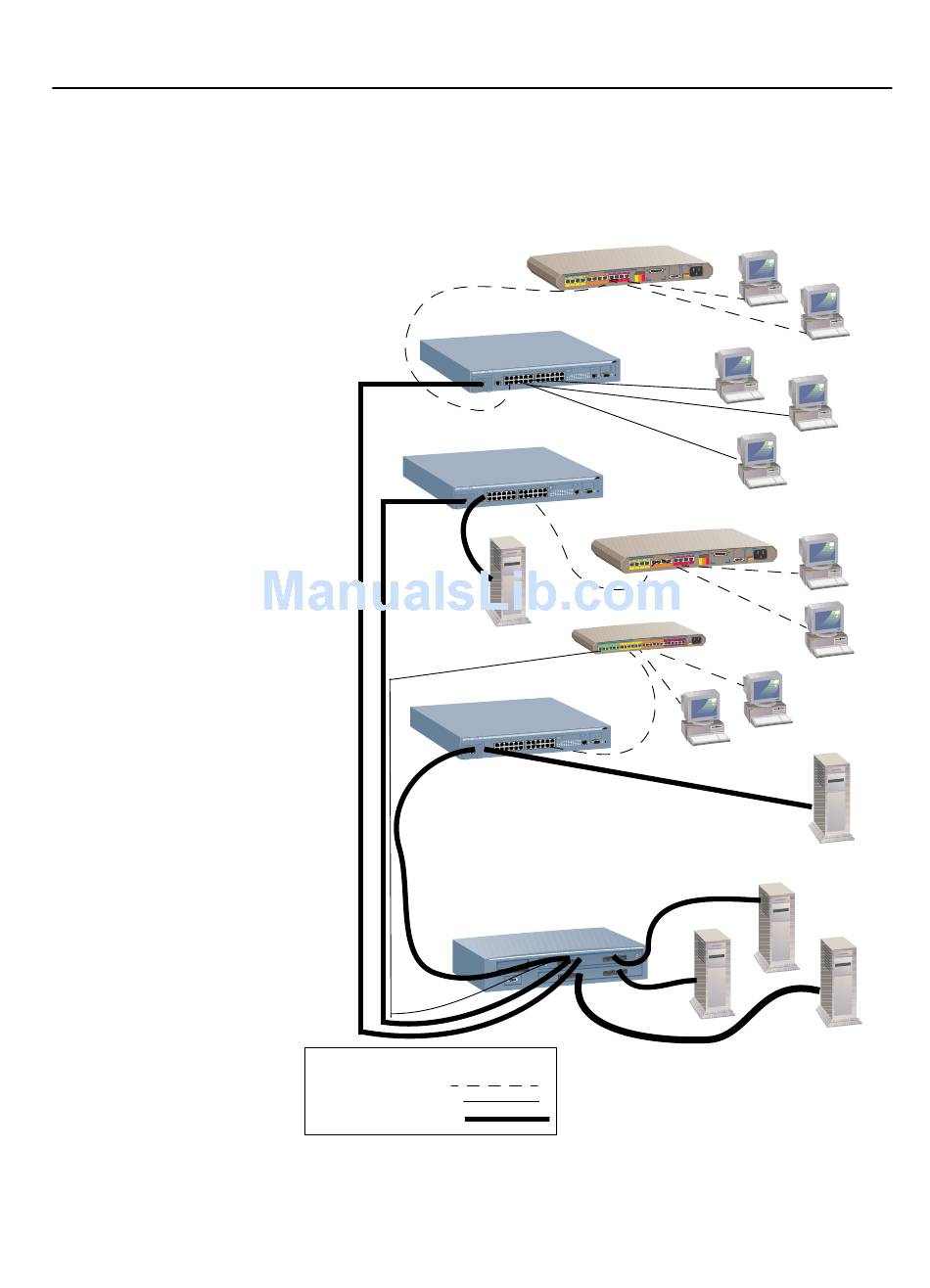

Figure 4-3 and Figure 4-4 show how cascaded AT-3726s and
AT-3714Fs respectively, fit into a large corporate network with a Fast
Ethernet infrastructure. A switch is located on each floor and servers
are centralized in one room.
AT- 3726
100 Mbps
AT- 3726
PORT B
100TX
100 Mbps
10BaseFL (2KM)
AT-3726
PORT B
Backbone
100TX
FORMULA 8200 TX/FX
Legend
Shared 10Mbps link
Dedicated 10Mbps link
Dedicated 100Mbps link
Figure 4-3 AT-3726 Switch in Department Configuration
