3. Attach the rack-mounting brackets to each side of the switch, using
the 6 flathead screws provided.
O R
P O R
T
K
R S -
T E R
2 3 2
M I N
A L P
O R T

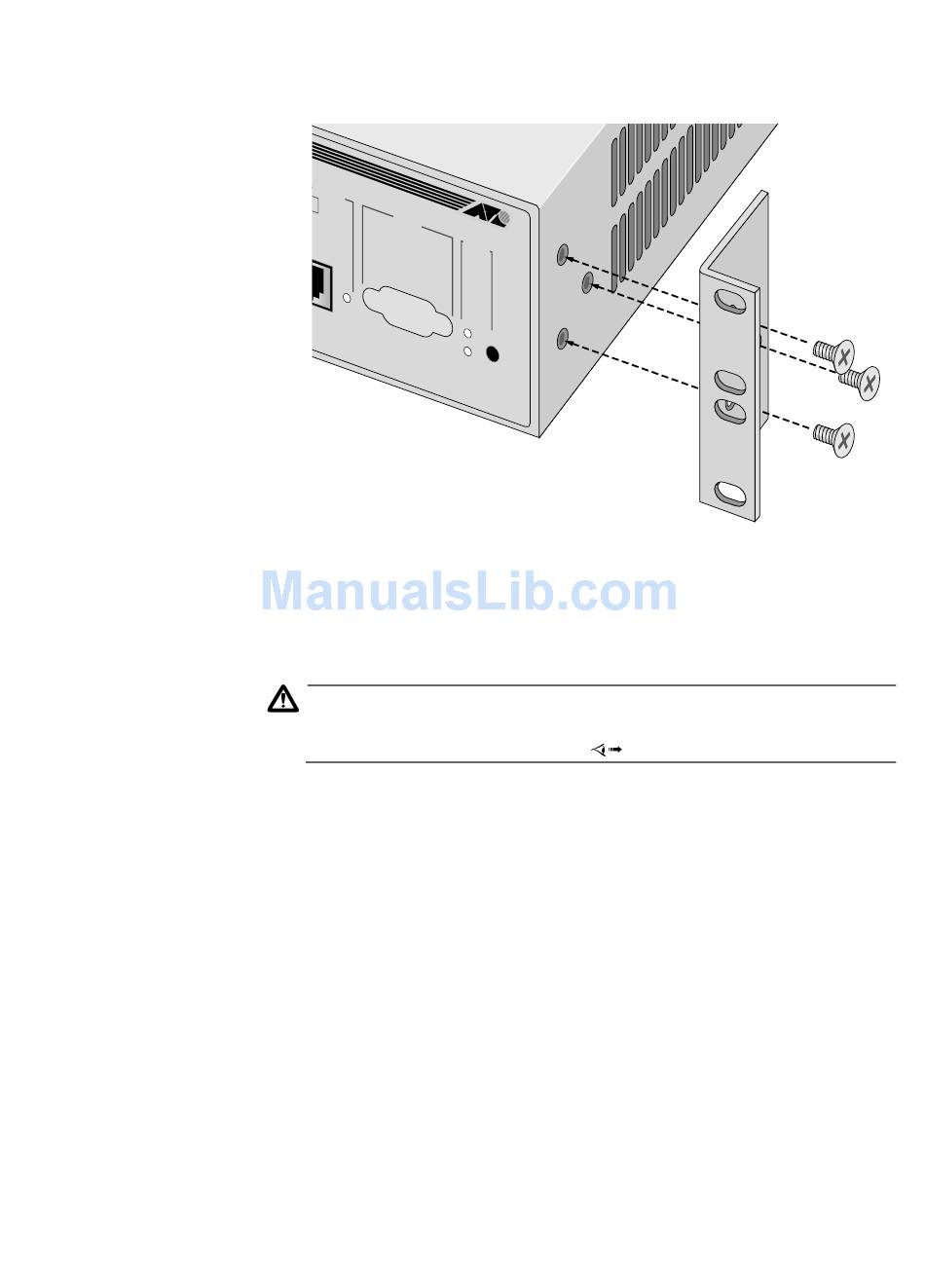

Figure 2-2 Attaching Rack-Mounting Brackets
4. Mount the unit in the rack.
5. Apply power to the unit as follows:
Caution
Power cord is used as a disconnection device. To de-energise equip-
ment disconnect the power cord.
Attach the power cord to the unit and plug it in the wall outlet.
Verify that the PWR LED lights green. See Table 2-1, LEDs
