  • Page 1: Installation Guide

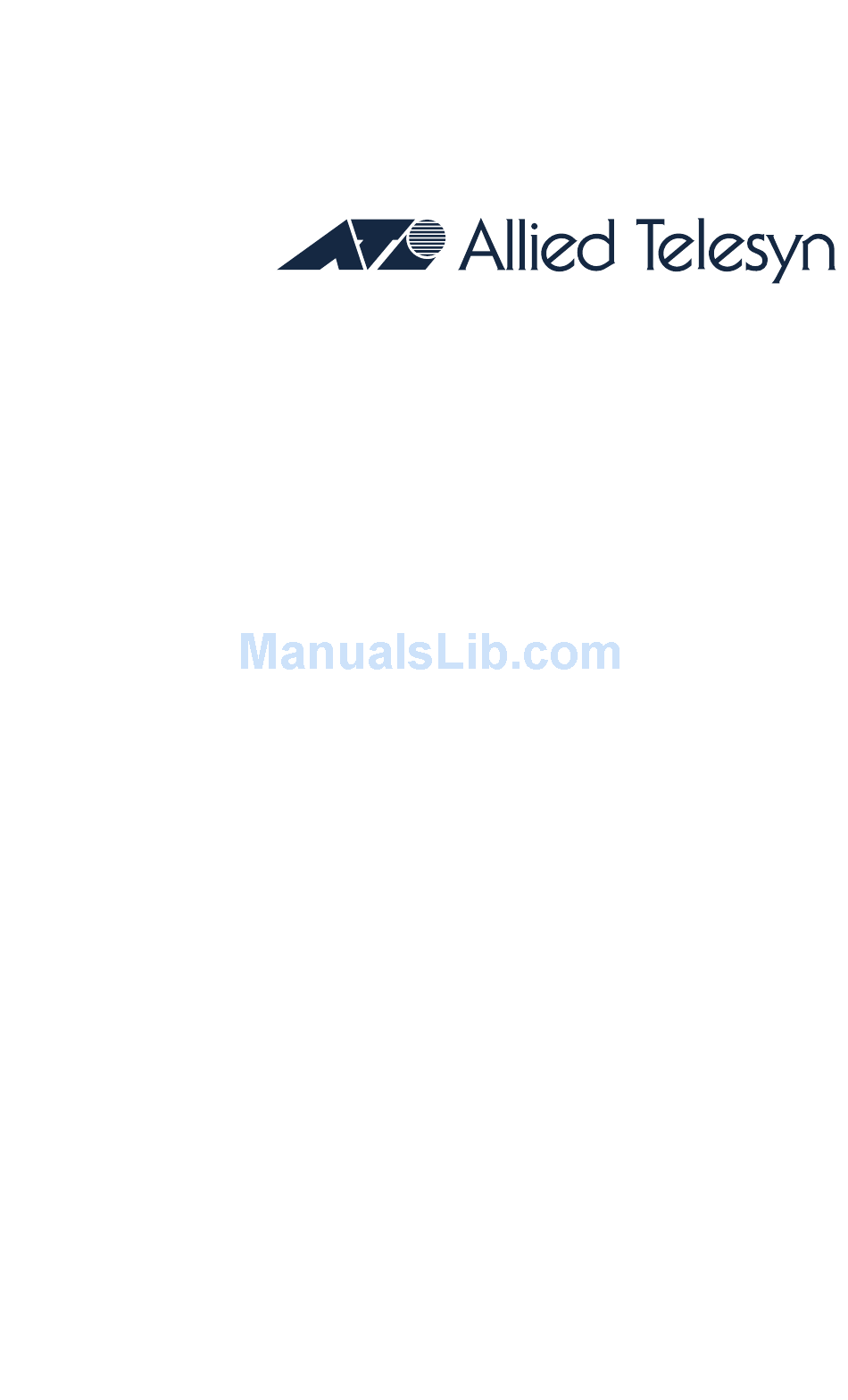

    AT-FS201, AT-FS202, AT-FS203 Fast Ethernet Switches Installation Guide PN 613-10761-00 Rev. A...
  • Page 2 Copyright ©1998 Allied Telesyn International, Corp. 950 Kifer Road, Sunnyvale CA 94086 USA All rights reserved. No part of this publication may be reproduced without prior written permission from Allied Telesyn International, Corp. Ethernet is a registered trademark of Xerox Corporation. All other product names, company names, logos or other designations mentioned herein are trademarks or registered trademarks of their respective owners.

  • Page 3: Electrical Safety And Installation Requirements

    Electrical Safety and Installation Requirements STANDARDS: This product meets the following standards U.S. Federal Communications Commission RADIATED ENERGY Note: This equipment has been tested and found to comply with the limits for a Class A digital device pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
  • Page 4 Electrical Safety and Installation Requirements NORMEN: Dieses Produkt erfüllt die Anforderungen der nachfolgenden Normen. Hochfrequenzstörung EN55022 Klasse A WARNUNG: Bei Verwendung zu Hause kann dieses Produkt Funkstörungen hervorrufen. In diesem Fall müßte der Anwender angemessene Gegenmaßnahmen ergreifen. Störsicherheit EN50082-1 ACHTUNG: Für dieses Produkt sind abgeschirmte Kabel erforderlich, damit den Richtlinien für Emission und Interferenzschutz entsprochen wird.
  • Page 5 AT-FS201, AT-FS202 and AT-FS203 Installation Guide EISEN: Dit product voldoet aan de volgende eisen. RFI Emissie EN55022 Klasse A WAARSCHUWING: Binnenshuis kan dit product radiostoring veroorzaken, in welk geval de gebruiker verplicht kan worden om gepaste maatregelen te nemen. Immuniteit...
  • Page 6 Electrical Safety and Installation Requirements STANDARDIT: Tämä tuote on seuraavien standardien mukainen. Radioaaltojen häirintä EN55022 Luokka A VAROITUS: Kotiolosuhteissa tämä laite voi aiheuttaa radioaaltojen häiröitä, missä tapauksessa laitteen käyttäjän on mahdollisesti ryhdyttävä tarpeellisiin toimenpiteisiin. Kestävyys EN50082-1 VAROITUS: Tämä tuote vaatii suojattuja kaapeleita toimiakseen emissio- ja häiriönsietostandardien mukaisesti. Jos tuotetta käytetään ilman suojattuja kaapeleita, käyttäjä...
  • Page 7 AT-FS201, AT-FS202 and AT-FS203 Installation Guide SIKKERHETSNORMER: Dette produktet tilfredsstiller følgende sikkerhetsnormer. RFI stråling EN55022 Klasse A ADVARSEL: Hvis dette produktet benyttes til privat bruk, kan produktet forårsake radioforstyrrelse. Hvis dette skjer, må brukeren ta de nødvendige forholdsregler. Immunitet EN50082-1 ADVARSEL: Dette produktet må...
  • Page 8 Electrical Safety and Installation Requirements ESTÁNDARES: Este producto cumple con los siguientes estándares. Emisión RFI EN55022 Clase A ADVERTENCIA: en un entorno doméstico, este producto puede causar radiointerferencias, en cuyo caso, puede requerirse del usuario que tome las medidas que sean convenientes al respecto. Inmunidad EN50082-1 ADVERTENCIA: Este producto exige cables protectores para ajustarse a las normas de emisión e inmunidad.

  • Page 9: Table Of Contents

    Table of Contents Electrical Safety and Installation Requirements ........iii Chapter 1 Description ...................... 1 Key Features....................... 3 Switch Performance ..................4 Connectors ....................4 LEDs ......................5 External AC-DC Power Adapter..............5 MDI/MDI-X Switch ..................6 Configuration Switches................6 Functional Description..................8 Frame Processing ..................
  • Page 10 Recommended Cables and Cable Specifications ........22 Technical Support and Service ..............23 Warranty....................23 Appendix B Technical Support Fax Order ..............25 Appendix C AT-FS201, AT-FS202 and AT-FS203 Installation Guide Feedback ..27 Appendix D Where To Find Us ..................29...

  • Page 11: Chapter 1 Description

    Chapter 1 Description The AT-FS201, AT-FS202, and AT-FS203 are self-learning, unmanaged dual- port Fast Ethernet switches with RJ45, ST, and SC connectors for 10/100Base-TX, and 100Base-FX LAN segments. The switches are based on store-and-forward switching architecture, providing error-free packet transfer.
  • Page 12 Description Figure 2 and Figure 3 show the AT-FS201/AT-FS202 and AT-FS203 rear panel respectively. PORT SPEED DUPLEX AUTO (Mbps) MODE BYTES PORT 12 V D C HALF 1522 FULL 1518 SPEED DUPLEX AUTO (Mbps) MODE BYTES HALF 1522 FULL 1518...

  • Page 13: Key Features

    AT-FS201, AT-FS202 and AT-FS203 Installation Guide Key Features The switches have the following key features: One 10/100Base-TX port and one 100Base-FX port ST connector for AT-FS201; SC connector for AT-FS202) Two 10/100Base-TX ports (RJ45 connectors) for Ethernet and Fast Ethernet connectivity (AT-FS203)

  • Page 14: Switch Performance

    For definitions of technical terms associated with Allied Telesyn’s products, refer to the Glossary on Allied Telesyn’s website at www.alliedtelesyn.com. Connectors The AT-FS201 and AT-FS202 have one RJ45 10/100Base-TX connector and one 100Base-FX connector (ST/SC), respectively. The AT-FS203 has two RJ45 10/100Base-TX connectors. See Figure 1.

  • Page 15: Leds

    AT-FS201, AT-FS202 and AT-FS203 Installation Guide LEDs The PWR LED in the upper right corner of the front panel shows that the switch is getting power. Status LEDs are located on the front panel next to each port. Table 1 lists and defines the LEDs.

  • Page 16: Mdi/Mdi-X Switch

    See Figure 6 and Figure 7. The 100Base-FX port must be set to either full- or half- duplex mode (AT-FS201 or AT-FS202). Each 10/100Base-TX port can be set independently to either auto-negotiate only (ON) or can be user-selectable (OFF). When set to user-configurable mode (OFF), the user can select the speed, either 10 Mbps or 100 Mbps and the duplex mode.
  • Page 17 HALF 1522 FULL 1518 SPEED DUPLEX AUTO (Mbps) MODE BYTES HALF 1522 FULL 1518 Figure 6 AT-FS201 and AT-FS202 DIP Switch PORT 1 2 1 2 SPEED DUPLEX AUTO (Mbps) MODE BYTES 12 V D C PORT HALF 1522 FULL...

  • Page 18: Functional Description

    Description Functional Description The AT-FS200 family of switches function as unmanaged dual-port switches or switches with automatic MAC Address Aging. Frame Processing The switches support store and forward switching at Fast Ethernet full-wire speed either in 10 or 100 Mbps, half- or full-duplex mode. Packets entering each port are stored in buffers.

  • Page 19: Chapter 2 Installation

    Chapter 2 Installation Package Contents Make sure the switch package contains the following items: AT-FS201, AT-FS202, or AT-FS203 Fast Ethernet Switch Four Protective Feet (for standalone use only) External AC-DC Power Adapter (North America, Continental Europe, or United Kingdom) This Installation Guide Warranty Card Contact your sales representative if any items are missing or damaged.

  • Page 20: Maximum Packet Size Pre-Installation Requirements

    Installation Maximum Packet Size Pre-installation Requirements The factory default setting 1518 bytes is the IEEE 802.3 packet size upper limit. Any packet exceeding this limit is considered illegal and, as a result, the switch will drop that illegally-sized packet as part of its error-handling operation.

  • Page 21: Setting The Configuration Switches For Speed And Duplex Mode

    HALF 1522 FULL 1518 SPEED DUPLEX AUTO (Mbps) MODE BYTES HALF 1522 FULL 1518 Figure 8 AT-FS201 and AT-FS202 DIP Switch PORT 1 2 1 2 SPEED DUPLEX AUTO (Mbps) MODE BYTES PORT 12 V D C HALF 1522 FULL...

  • Page 22: Configuring A 10/100Base-Tx Port

    Port 1. Plug the 10/100Base-TX twisted pair cable(s) into the RJ45 connector(s) (Port 1 for the AT-FS201 and ports 1 and 2 for the AT-FS203). 6. Verify that the near-end node transmitter (TX) is connected to the far end node receiver (RX) and vice versa on the fiber segment.
  • Page 23 IEEE 802.3 /802.3U 10Base T/ 10Base-T/ 100Base-TX 100Base-TX MDI-X MDI MDI-X PORT 1 PORT 2 Figure 10 MDI/MDI-X Switch Table 2 Configuration Switch Settings for AT-FS201 and AT-FS202 Port SPEED (Mbps) DUPLEX MODE AUTO-NEG BYTES HALF 1522 DOWN FULL 1518...

  • Page 24: Rack-Mount Chassis Installation

    Installation Rack-mount Chassis Installation To install the AT-FS200 family of switches and or media converters in the rack-mount chassis, refer to the “AT-MCR12 Media Converter Chassis Installation Manual” or visit Allied Telesyn’s website at http:// www.alliedtelesyn.com. Figure 11 shows the AT-MCR12 rack-mount chassis.

  • Page 25: Troubleshooting Techniques

    AT-FS201, AT-FS202 and AT-FS203 Installation Guide Troubleshooting Techniques Follow these troubleshooting techniques to test for a valid connection as well as to confirm the correct operation of the network. Note Whenever the speed and/or duplex mode are changed during or after power on, power off then power back on the switch to load the new configuration.

  • Page 26: Is The Link Led Lit

    Installation Is the LINK LED lit? The LINK LEDs light when a proper connection between the corresponding 10/100Base-TX or 100Base-FX port and the equipment connected to it is established. If this LED is not lit, check for the problems listed as follows and make corrections as necessary.

  • Page 27: Configurations

    AT-FS201, AT-FS202 and AT-FS203 Installation Guide Configurations Figure 12 shows a typical network configuration using the AT-FS203 switch with stackable hubs for making two small networks. Server AT-3624TR 10Base-T Hub AT-3624TR Hub AT-MR912TX Hub 100Base-TX AT-3624TR Hub AT-MR912TX Hub AT-FS203...
  • Page 28 Installation Figure 13 shows the AT-FS201 primarily performing media conversions, store- and-forward, and extends the length of your network cable distance on the fiber port to 2 km. Server AT-FS201 AT-8200 (2 km) Fiber 100 meters 10/100Base-TX Managed Switch 10/100 Managed Switch...

  • Page 29: Fast Switch System And Cable Specifications

    Appendix A Fast Switch System and Cable Specifications Table 4 lists the technical specifications for the fast switches. Table 4 Technical Specifications Physical Specifications Dimensions 10.5 cm L x 9.5 cm W x 2.5 cm H (4.12 in x 3.75 in 1.0 in) Weight 300 gm (10.5 oz) Operating temperatures...
  • Page 30 Fast Switch System and Cable Specifications Table 4 Technical Specifications (Continued) Transmitter Output Power 62.5/125 mM -16.8 dBm 100/140 mM 50/125 mM -20.3 dBm 85/125 mM Max. Cable Distance 10Base-T 100 m 100Base-TX 100 m 100Base-FX 2000 m (full-duplex) switch-to-switch, or 412 m (half-duplex) workstation-to-switch 425 m switch-to-Class 1 repeater Fiber Optical Interface...

  • Page 31: Pinout Assignments

    AT-FS201, AT-FS202 and AT-FS203 Installation Guide Pinout Assignments Figure 14 shows the switch’s 10/100Base-TX RJ45 connector with its pin assignments. Pin 1 Pin 8 Figure 14 RJ45 Pin Assignments Table 5 lists the 10/100Base-TX connector pins and their positions for the MDI-X and MDI switch.

  • Page 32: Recommended Cables And Cable Specifications

    Fast Switch System and Cable Specifications Recommended Cables and Cable Specifications The cable between the switch and the link partner (hub, workstation, etc.) must be less than 100 meters (328 ft) long. 10Base-T segments can use 22, 24 or 26-gauge TP cabling that complies with IEEE 802.3 10Base-T standard for Category 3, 4 or 5.

  • Page 33: Technical Support And Service

    Refer to the http://www.alliedtelesyn.com website for current world-wide office locations. Warranty The AT-FS201, AT-FS202 and AT-FS203 Fast Switches have a lifetime warranty. The power adapter has a one year warranty. Send in your warranty card to register your warranty.

  • Page 35: Technical Support Fax Order

    Appendix B Technical Support Fax Order Name ________________________________________________________________________ Company_____________________________________________________________________ Address______________________________________________________________________ City ___________________________State/Province__________________________________ Zip/Postal Code ______________________ Country__________________________________ Phone __________________________________ Fax__________________________________ Incident Summary Model number of Allied Telesyn product I am using __________________________________ Network software products I am using ____________________________________________ _____________________________________________________________________________ Brief summary of problem ______________________________________________________ _____________________________________________________________________________ Conditions (List the steps that led up to the problem.) _______________________________ _____________________________________________________________________________...

  • Page 37: At-Fs201, At-Fs202 And At-Fs203 Installation Guide Feedback

    Appendix C AT-FS201, AT-FS202 and AT-FS203 Installation Guide Feedback Please tell us what additional information you would like to see discussed in the guide. If there are topics you would like information on that were not covered in the guide, please photocopy this page, answer the questions and fax or mail this form back to Allied Telesyn.

  • Page 39: Where To Find Us

    Appendix D Where To Find Us For Technical Support or Service Location Phone Americas 1 (800) 428-4835 1 (918) 628-3222 United States, Canada, Mexico, Central America, South America Asia (+65) 3815-613 (+65) 3833-830 Singapore, Taiwan, Thailand, Malaysia, Indonesia, Korea, Philippines, China, India Australia (61) 2-943-5111 (61) 2-9438-4966...
