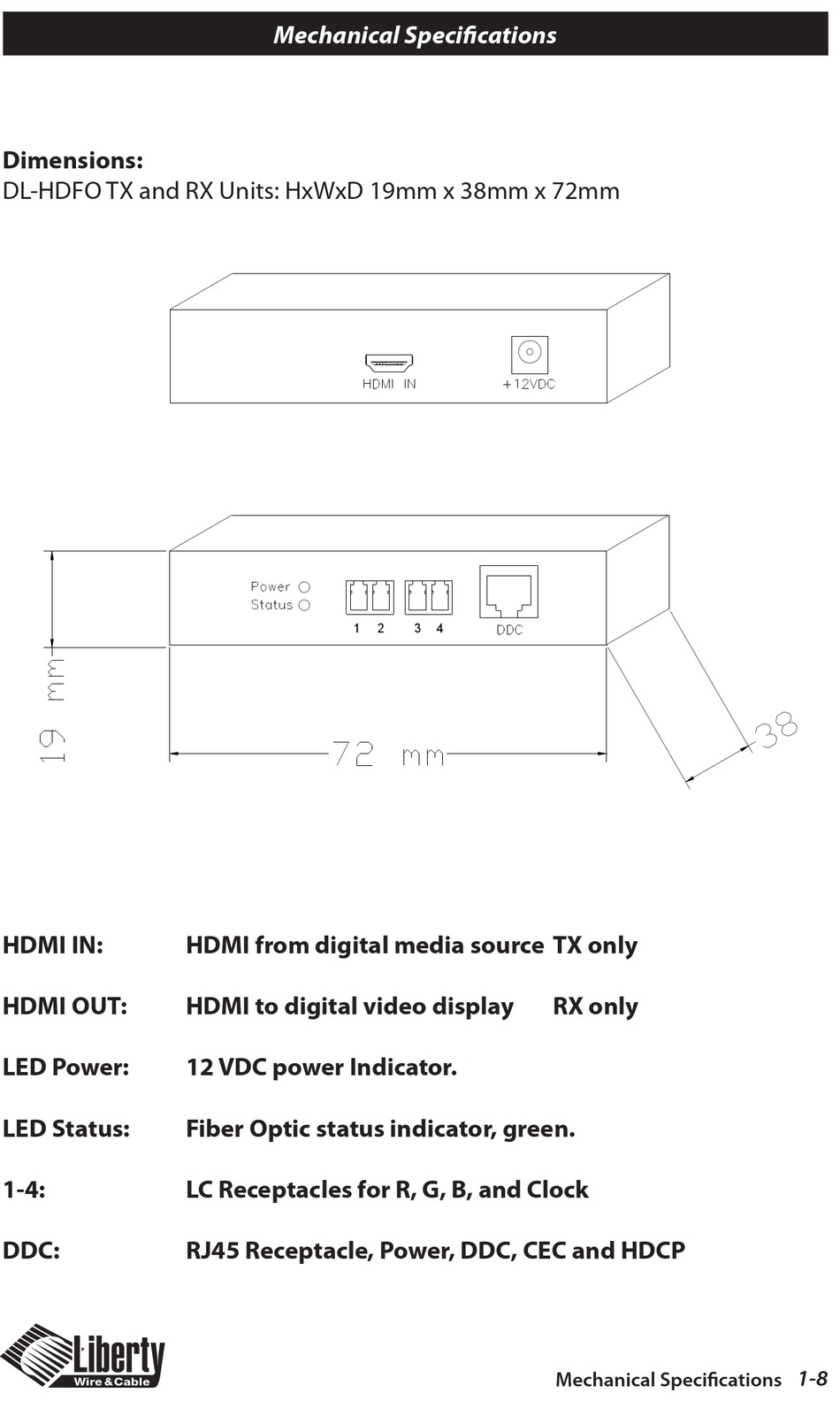

Dimensions:
DL-HDFO TX and RX Units: HxWxD 19mm x 38mm x 72mm
DL-HDFO TX and RX Units: HxWxD 19mm x 38mm x 72mm
HDMI IN:
HDMI from digital media source
HDMI OUT:
HDMI to digital video display
LED Power:
12 VDC power Indicator.
LED Status:
Fiber Optic status indicator, green.
1-4:
LC Receptacles for R, G, B, and Clock
DDC:
RJ45 Receptacle, Power, DDC, CEC and HDCP
Mechanical Specifications
HDMI from digital media source TX only
HDMI to digital video display
12 VDC power Indicator.
Fiber Optic status indicator, green.
LC Receptacles for R, G, B, and Clock
RJ45 Receptacle, Power, DDC, CEC and HDCP
Mechanical Specifications
4
1
2
3
TX only
RX only
RX only
Mechanical Specifications
