  • Page 1 DL-UHDRC70 Owners Manual Rev 171103 11675 Ridgeline Drive Phone: 719-260-0061 Colorado Springs, CO Toll-Free: 800-530-8998 80918 Fax: 719-260-0075...
  • Page 2 DL-UHDRC70 Owners Manual...
  • Page 3: Important Safety Instructions

    DL-UHDRC70 Owners Manual Important Safety Instructions » Please completely read and verify you understand all instructions in this manual before operating this equipment. » Keep these instructions in a safe, accessible place for future reference. » Heed all warnings. » Follow all instructions.
  • Page 4: Table Of Contents

    DL-UHDRC70 Owners Manual Table of Contents Product Overview ��������������������������������������������������������������������������������������������������������������������������������������� Package Contents ��������������������������������������������������������������������������������������������������������������������������������������� Front and Rear Panels ��������������������������������������������������������������������������������������������������������������������������������� Transmitter / Receiver Rear View ������������������������������������������������������������������������������������������������������������������ Transmitter / Receiver Front View ����������������������������������������������������������������������������������������������������������������� Installation Instructions ������������������������������������������������������������������������������������������������������������������������������ Quick Start ���������������������������������������������������������������������������������������������������������������������������������������������������� Connecting a Video Source ���������������������������������������������������������������������������������������������������������������������������...
  • Page 5: Product Overview

    HDMI clock stretching issues that are common in older cable set top boxes with older HDMI chipsets. The DL-UHDRC70 is sold only as a set. The individual transmitter and receiver are not compatible with other HDBaseT devices due to proprietary PoE circuitry.
  • Page 6: Front And Rear Panels

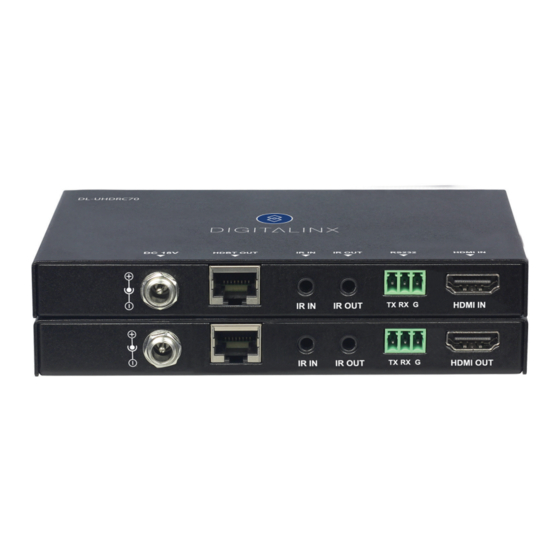

    DL-UHDRC70 Owners Manual Front and Rear Panels Transmitter / Receiver Rear View Transmitter DC 18V • Locking power port, connect DC18V power adapter (either power port can power entire set) HDBT OUT • Connects transmitter to receiver; supports PoC / bi-directional power IR In •...
  • Page 7: Transmitter / Receiver Front View

    DL-UHDRC70 Owners Manual Transmitter / Receiver Front View POWER • Power LED indicator; when LED is solid, the DL-UHDRC70 extender is receiving power from the power supply or from the remote extender via Category 6 cabling. STATUS • Status LED indicator; when LED flashes once per second, the HDBaseT processor is running.
  • Page 8: Installation Instructions

    Connect the display to the HDMI output on the DL-UHDRC70 receiver labeled HDMI OUT using an HDMI cable that is less than or equal to 5 meters in length. It is recommended to keep the DL-UHDRC70 receiver near the display input as it is not recommended that an active HDMI cable be used on the HDMI output on the DL-...
  • Page 9: Hdbaset Connection

    DL-UHDRC70 Owners Manual HDBaseT Connection Connect one end of a Category cable to the DL-UHDRC70 transmitter labeled TWISTED PAIR, then connect the other end of the Category cable to the DL-UHDRC70 receiver labeled TWISTED PAIR Twisted Pair Wiring TIA/EIA-568B Use TIA/EIA-568B wiring for Category 6...
  • Page 10: Connecting Ir Control

    Attach the IR emitter to the IR receiver of the display device, insert the TS 3.5 mm plug of the emitter to the IR OUT port of the DL-UHDRC70 receiver. Insert the TS 3.5 mm plug of the IR receiver (eye) to the IR IN port of the DL-UHDRC70 transmitter.
  • Page 11: Apply Power

    DL-UHDRC70 Owners Manual Apply Power Connect the included power supply to the transmitter or receiver and lock the power supply to the power connector by twisting the locking collar clockwise. It is not required that both the transmitter and receiver be...
  • Page 12: Application Diagrams

    DL-UHDRC70 Owners Manual Application Diagrams HDMI Extension / Bi-Directional IR Control IR Remote Disc Player IR Emitter (2) IR Eye (1) Power Outlet IR Eye (2) HDMI CATx IR Remote IR Emitter (1) Display...
  • Page 13: Hdmi Extension / Control System Ir Control

    DL-UHDRC70 Owners Manual HDMI Extension / Control System IR Control Control System / Switcher IR-AC CABLE HDMI CATx IR Emitter Display...
  • Page 14: Hdmi Extension / Control System Rs232 Control

    DL-UHDRC70 Owners Manual DL-UHDRC70 EXTENDER SET W/ RS232 HDMI Extension / Control System RS232 Control Laptop Control System HDMI CATx RS232 Display...
  • Page 15: Technical Specifications

    DL-UHDRC70 Owners Manual Technical Specifications VIDEO Video Input (Transmitter) (1) HDMI Video Output (Receiver) (1) HDMI Video I/O Connector (Transmitter / Receiver) (1) HDMI type A HDBaseT Connector (Transmitter / Receiver) (1) RJ45 HDBaseT Cable Requirements Solid core shielded Category 5e, Category 6 or greater with TIA/EIA-568B...
  • Page 16 Thank you for your purchase. For Technical Support please call our toll free number at 800-530-8898 or email us at supportlibav@libav.com www.libav.com is a brand of: 11675 Ridgeline Drive Colorado Springs, Colorado 80921 USA Phone: 719-260-0061 Fax: 719-260-0075 Toll-Free: 800-530-8998...
