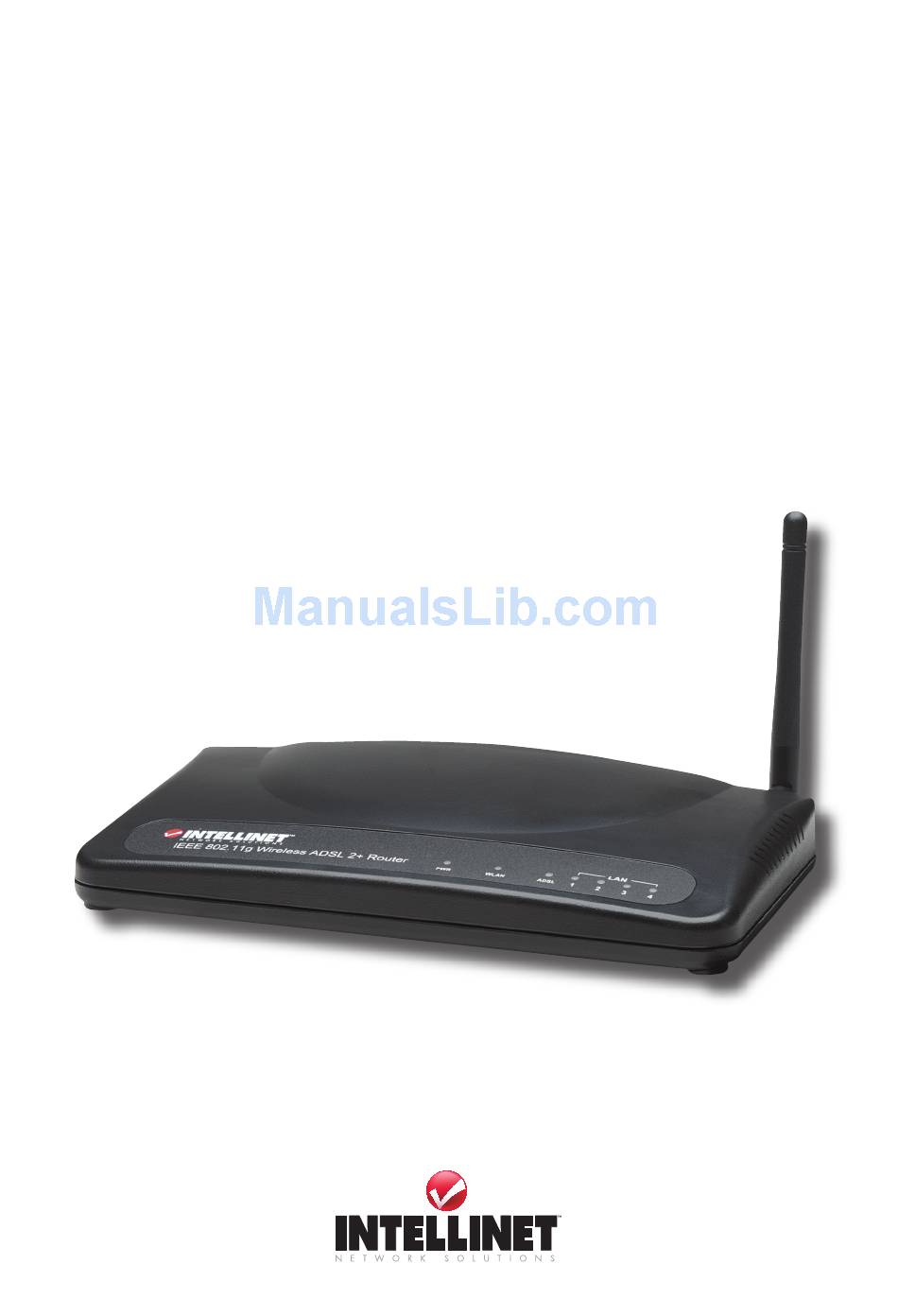

- Page 1 ADsl2+ broADbAnD moDem router user mAnuAl ModelS 523455 (Annex A) & 523950 (Annex b) InT-523455/523950-UM-0207-02...
-
Page 2: Table Of Contents
Contents section page 1. Introduction ...............5 2. Hardware ................6 Component descriptions................6 Front Panel, Rear Panel..............6 Setup/Installation..................7 3. Software/Setup Wizard ...........7 4. IP Address Settings ............8 Windows xP, Windows 2000 ..........9 Windows 95/98/Me, Windows nT ........10 5. Web Management Configuration ........11 Quick Start ................12 Interface Setup .............. -
Page 3: Fcc Regulatory Statements
fCC regulAtory stAtements FCC Part 68 This equipment complies with Part 68 of FCC Rules. on the bottom of this device is a label with the FCC registration number and ringer equivalence number (Ren) for this equipment. You must provide this information to the telephone company upon request. - Page 4 FCC Caution This equipment must be installed and operated in accordance with provided instructions, and a minimum of 20 cm spacing must be provided between computer- mounted antenna and a person’s body (excluding extremities of hands, wrists and feet) during wireless modes of operation. This device complies with Part 15 of FCC Rules.
-
Page 5: Introduction

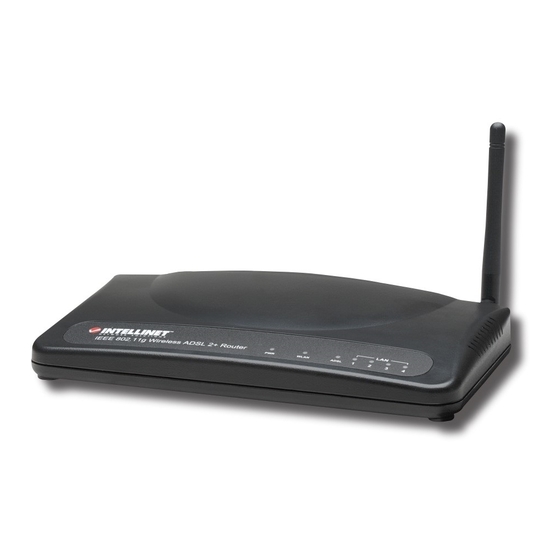

Thank you for purchasing this InTellIneT neTWoRK SolUTIonS Wireless ™ AdSl2+ broadband Modem Router, Model 523455 (Annex A) or Model 523950 (Annex b). An all-in-one modem, router, wireless access point, firewall and Fast ethernet 4-port switch, it allows you to access the Internet and download music, play interactive games online or surf the Web at double the speed previously available through AdSl2. -
Page 6: Hardware
2. hArDwAre Component DesCriptions Front Panel As listed below, the leds indicate the current status of the router. LED Mode Status PWR (green) Ready for operation. WlAn (yellow) The wireless lAn is disabled. blinking Wireless traffic is being transmitted/received. AdSl (green) Successful connection to an AdSl dSlAn. -
Page 7: Setup/Installation
setup/instAllAtion once you’re familiar with the front and rear panels of the Wireless AdSl2+ broadband Modem Router, the setup and installation of the device is easy. 1. From the AdSl port, connect the router to your AdSl network using the RJ- 1 1 telephone cable provided. -
Page 8: Ip Address Settings
3. The following instructions are based on the successive prompts that will appear. First, select the country in which the router is being installed, then click “next.” 4. Select your ISP. 5. If needed, enter the username and password provided by your ISP, then click “next.”... -
Page 9: Windows Xp, Windows 2000
Windows XP 1. Click “Start,” open the control panel and then double-click “network Connections.” The network Connections window will appear. 2. Right-click on the local Area Connection icon and select Properties. The local Area Connection window will appear. 3. Check the list of network Components. You should see Internet Protocol (TCP/IP) on your list. -
Page 10: Windows 95/98/Me, Windows Nt
Your PC will now obtain an IP address automatically from your router’s dHCP server. NOTE: Make sure the router’s dHCP server is the only one available on your lAn. Windows 95/98/Me 1. Click “Start” and select Settings, then click “Control Panel.” The Control Panel window will appear. -
Page 11: Web Management Configuration
4. In the Select network Protocol window, select the TCP/IP Protocol and click “oK” to install the TCP/IP protocol. You may need your Windows Cd to complete the installation. 5. After you install TCP/IP, go back to the network window. Select TCP/IP from the list of network Protocols, then click “Properties.”... -
Page 12: Quick Start
The Home Page screen appears, displaying seven instructional options: Quick Start, Interface Setup, Advanced Setup, Access Management, Maintenance, Status and Help. quiCk stArt The Quick Start section is designed to get you using the router as quickly as possible. before configuring the router, check with your ISP (Internet service provider) as to what kind of service is provided (examples shown below). -
Page 13: Interface Setup
interfACe setup Internet ATM VC Virtual Circuit: This is defined either as VPI (Virtual Path Identifier) or VCI (Virtual Channel Identifier). VPI: This is a virtual path that determines the way an ATM cell should be routed. The VPI is an 8-bit (in UnI) or 12-bit (in nnI) number that is included in the header of an ATM cell. - Page 14 for real-time VbR are voice with speech activity detection (SAd) and interactive compressed video. • nrtVbR (non-real-time Variable bit Rate) – This class allows users to send traffic at a rate that varies with time depending on the availability of user information. Statistical multiplexing is provided to make optimum use of network resources.
-
Page 15: Lan
Get IP Address: Choose “Static” or “dynamic IP Address.” If “Static IP” is selected, set the IP address, subnet mask and gateway obtained from your ISP. Static IP Address: enter the IP address assigned by your ISP. IP Subnet Mask: enter the subnet mask assigned by your ISP. Gateway: enter the gateway assigned by your ISP. - Page 16 ROUTER LOCAL IP IP Address: enter the IP address of the AdSl router for local access to the router’s Web page. by default, the IP address is 192.168.2.1. IP Subnet Mask: enter the subnet mask of the AdSl router. by default, the subnet mask is 255.255.255.0. Dynamic Route: dynamic routing allows routing tables in routers to change as the possible routes change.
-
Page 17: Wireless
Wireless WIRELESS LAN Access Point: Activate or deactivate the wireless function of the router. When activated, the router will be an access point for other wireless clients to connect. SSID: The SSId (up to 32 printable ASCII characters) is the unique name identified in a WlAn. - Page 18 exactly 5 ASCII characters (a-z and 0-9) or 10 hexadecimal digits (0-9, a-f) for each Key (1-4). WEP-128Bits: When “WeP- 1 28bits” is selected, you need to enter exactly 13 ASCII characters (a-z and 0-9) or 26 hexadecimal digits (0-9, a-f) for each Key (1-4).
-
Page 19: Advanced Setup
have specified can access the router. • deny Association – The wireless clients with the MAC address(es) you have specified will be denied access to the router. Mac Address #1-8: enter the MAC address(es) of the wireless client(s) to be filtered. ADvAnCeD setup Firewall Firewall: Selecting “enabled”... -
Page 20: Nat
Metric: This is the number of hops (routers) to pass through to reach the destination lAn. It must be between 1 and 15. Device: Show the interface that goes to the next hop (router), such as a lAn port. Use: This is the counter for access time. Edit: This is for editing the route, and is not shown for the system default route. - Page 21 NAT — network Address Translation (nAT) allows multiple users at your local site to access the Internet through a single public IP address or multiple public IP addresses. nAT provides firewall protection from hacker attacks and has the flexibility to allow you to map private IP addresses to public IP addresses for key services such as Web sites and FTP.
-
Page 22: Adsl
Virtual Server for: Shows the Virtual Server setting is for single or multiple IP addresses. Rule Index: Choose the rule number. Start Port Number: enter the start port number. End Port Number: enter the end port number. Local IP Address: It is recommended that a static IP address for the server be entered here. -
Page 23: Access Management
ADSL ADSL Mode: The default setting is “Auto Sync-Up.” This mode automatically detects the AdSl mode, including AdSl2+, AdSl2, G.dMT, T1.413 and G.lite. If you are not sure how to select the AdSl mode, contact your ISP. ADSL Type: Check with your ISP about the AdSl type of the dSlAM device they use. -
Page 24: Ip Filter
IP Filter To deny some users access to the router’s Web management, enter the IP addresses here. The default IP 0.0.0.0 allows any user to use the service to remotely manage the router. IP FILTER SET EDITING IP Filter Set Index: This is the item number to record the setting. Interface: Select which channel (PVC) to configure. -
Page 25: Snmp
Port Number: This is the port or port ranges that define the application. Protocol: This is the packet protocol type used by the application. Select “TCP,” “UdP” or “ICMP.” (For FTP service, for example, select “TCP.”) Rule Unmatched: Select action for traffic not matching the current rule. “Forward” is to let it pass through;... -
Page 26: Ddns
Auto-configured: This allows UPnP-enabled applications to automatically configure the router so that they can communicate through the router. For example, by using a nAT traversal, UPnP applications automatically reserve a nAT forwarding port in order to communicate with another UPnP-enabled device, eliminating the need to manually configure port forwarding for the UPnP-enabled application. -
Page 27: Time Zone
Username: The username of the router is “admin” by default. New Password: enter up to 30 characters for the new password. Confirm Password: enter the new password again to confirm the setting. TIME ZONE Time Zone allows the router to set its time (affecting functions like System log). Current Date/Time: Show the current date/time of the router. -
Page 28: System Restart
New Firmware Location: Type in the location of the new firmware or click “browse” to find it. Browse: Click “browse” to find the new firmware. Upgrade: Click “Upgrade” to begin the upgrade process. After the router is restarted, the process is completed. It might take several minutes — don’t turn off power to the router during upgrading. -
Page 29: System Log
SYSTEM LOG on this page, display system logs accumulated up to the present time. The logs can also be saved for future review. Web MAnAGeMenT ConFIGURATIon... -
Page 30: Statistics
STATISTICS This screen show the statistics of transmit and receive packets on the lAn port and the AdSl line. 6. troubleshooting Problem: The LAN LED on the front panel does not light up. 1. Check the ethernet cable connections between the router and PC or hub. 2. Check for faulty ethernet cables. 3. - Page 31 As shown above, the PC’s IP address is 192.168.2.111; its subnet mask is 255.255.255.0; and its MAC address is Physical Address...: 00-00-e2-82-C3-Ad. Problem: The login username or password is forgotten. 1. If the password has been changed, then forgotten, the default configuration file needs to be uploaded. This will erase all custom configurations and restore all of the factory defaults, including the password.
-
Page 32: Glossary
7. glossAry 10Base-T: An ethernet standard for local Area network (lAn). 10base-T uses a twisted-pair cable with a maximum length of 100 meters. AAL: ATM Adaptation layer defines the rules governing segmentation and reassembly of data into cells. different AAl types are suited to different traffic classes. ADSL: An Asymmetric digital Subscriber line is an asymmetrical data transmission technology with a high traffic rate downstream and a low traffic rate upstream. - Page 33 Idle Timeout: After there is no traffic to the Internet for a pre-configured amount of time, Idle Timeout automatically disconnects from it. ISP: The Internet Service Provider is a business that provides connectivity to the Internet for individuals, businesses and organizations. ISP Gateway Address: This is an IP address for the Internet router located at the ISP’s office.
- Page 34 protocol, the interpretation of their behavior is well-defined and can be made objectively, without confusion or misunderstanding. PVC: A Permanent Virtual Circuit is a connection-oriented, permanent leased- line circuit between end stations on a network over a separate ATM circuit. RFC: Request for Comments is a document series, begun in 1969, that describes the Internet suite of protocols and related experiments.
-
Page 35: Specifications
