- Page 1 ADsl2+ broADbAnD moDem router quick stArt guiDe Models 523455 (annex a) & 523950 (annex b) InT-523455/523950-QsG-0207-02...
- Page 2 If they do, you will be notified in advance to give you an opportunity to maintain uninterrupted telephone service. If you experience trouble with this device, contact your InTellIneT neTWoRK solUTIons dealer for repair/warranty information. The telephone company ™...
- Page 3 FCC Caution This equipment must be installed and operated in accordance with provided instructions, and a minimum of 20 cm spacing must be provided between computer- mounted antenna and a person’s body (excluding extremities of hands, wrists and feet) during wireless modes of operation. This device complies with Part 15 of FCC Rules.

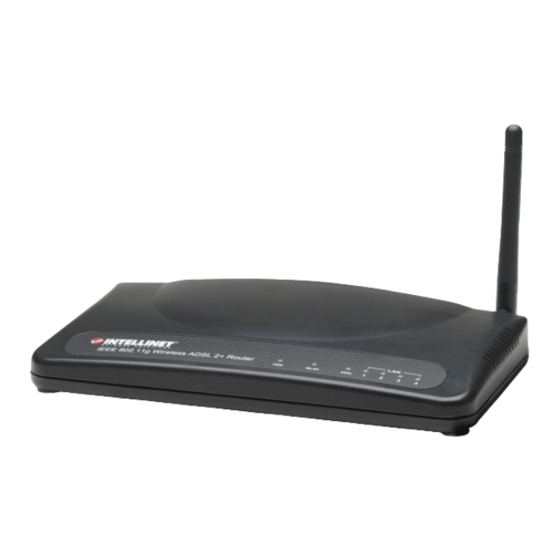

- Page 4 Thank you for purchasing this InTellIneT neTWoRK solUTIons Wireless ™ adsl2+ broadband Modem Router, Model 523455 (annex a) or Model 523950 (annex b). an all-in-one modem, router, wireless access point, firewall and Fast ethernet 4-port switch, it allows you to access the Internet and down- load music, play interactive games online or surf the Web at double the speed previously available through adsl2.
-
Page 5: Installation
instAllAtion pAckAge contents • Wireless adsl2+ broadband Modem Router • Power adapter • ethernet Cat5 RJ-45 cable, 1.0 m (3 ft.) • RJ- 1 1 telephone cable, 1.8 m (6 ft.) • Quick start guide • setup Cd with user manual and setup wizard connections NOTE: In addition to the items listed above in Package Contents, the minimum requirements necessary to configure and use the Wireless adsl2+ broadband... - Page 6 other dial-up devices. • It is recommended that the router first be configured with the ethernet cable connected prior to setting the wireless functions. NOTE: This setup wizard can be run in Windows 98se, Me, 2000 or xP. The following procedures represent Windows xP, but are similar for 98se/Me/2000. 1.
-
Page 7: Web Management Configuration
web mAnAgement configurAtion once the PC has obtained an IP address from the router, enter the default IP address 192.168.2.1 (the router’s IP address) into the PC’s Web browser and press “enter.” NOTE: If you are unfamiliar with how to obtain an IP address from the router, refer to the IP address setting section in the user manual. - Page 8 PPPoE VPI/VCI, VC-based/llC-based multiplexing, Username, Password (and service name). PPPoA VPI/VCI, VC-based/llC-based multiplexing, Username, Password. RFC1483 Bridged VPI/VCI, VC-based/llC-based multiplexing to use bridged Mode. RFC1483 Routed VPI/VCI, VC-based/llC-based multiplexing, IP address, subnet Mask, Gateway address and domain name system (dns) IP address (a fixed IP address). 1.
- Page 9 4. select the time zone; click “next” to continue. 5. select your Internet connection type (as directed by your IsP); click “next” to continue. 6. enter the data provided by your IsP. For details on each setting, see the Interface setup section in the user manual.
- Page 10 7 . Restart your adsl router. Click “next” to save the settings and restart the router.
-
Page 11: Specifications
specificAtions Standards Wireless • Ieee 802.3 (10base-T ethernet) • Chipset: Ralink 2561sT • Ieee 802.3u (100base-Tx Fast ethernet) • Wireless frequency range: 2.4 – 2.484 GHz • Ieee 802.11b (11 Mbps Wireless lan) • Modulation technologies: • Ieee 802.11g (54 Mbps Wireless lan) - 802.11b: direct sequence spread spectrum •... - Page 12 Please contact your InTellIneT neTWoRK solUTIons dealer ™ with comments or questions. Copyright © INTELLINET NETWORK SOLUTIONS all products mentioned are trademarks or registered trademarks of their respective owners.
