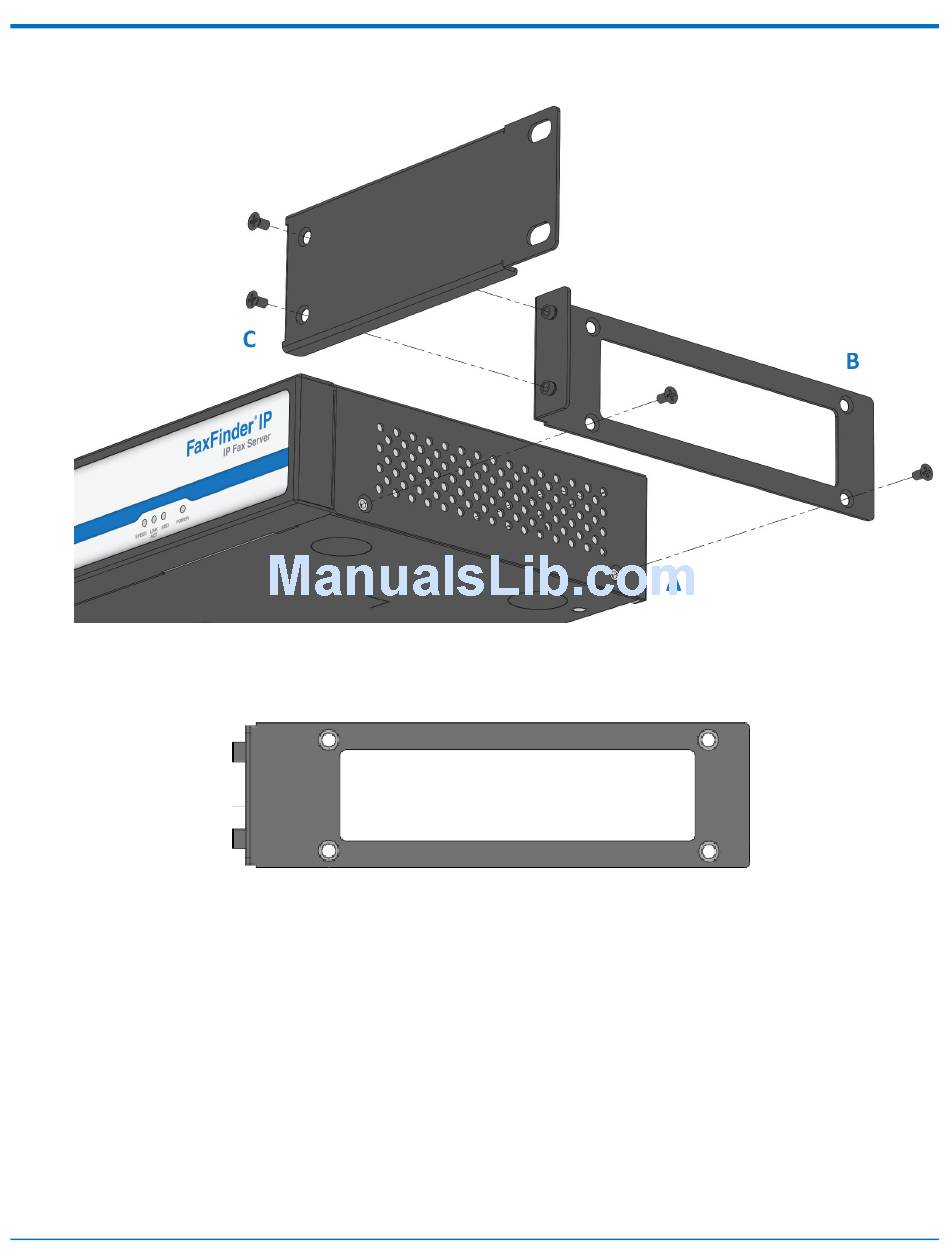

4. Secure the bracket piece shown in Figure 2 to the bottom of FaxFinder's right side using two provided
screws. Figure 1 Part B shows how to position the bracket piece.
5. Use two screws to attach the second bracket piece (Figure 3) to the posts on the first bracket as shown in
Figure 1 Part C. The flange side of the bracket should face toward the back. Figure 4 shows a FaxFinder
240-IP with both bracket pieces attached.
®
FaxFinder Fax Server FF240-IP Administrator Guide
Figure 1
Figure 2
