Summary of Contents for Atlona AT-PROHD82M

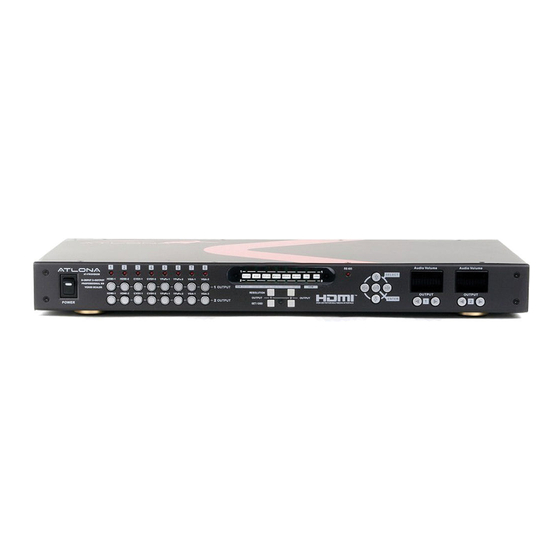

- Page 1 User Manual AtlonA 8 Input and 2 Output HD Video Scaler with 2 Matrix Outputs AT-PROHD82M www.atlona.com | toll free: 1-877-536-3976 For International: 1-408-962-0515...
-
Page 2: Table Of Contents
& RS-485 10. RS-232 Serial Commands ..........10.1. Protocol Commands ..........10.2. Front Panel Lock ..........10.3. Unit Reset ..........11. Atlona Product Registration ..........12. Safety Information ..........13. Warranty ..........www.atlona.com | toll free: 1-877-536-3976 For International: 1-408-962-0515... -
Page 3: Introduction
SVGA 800x600 to WUXGA 1920x1200. The AT-PROHD82M is also an auto signal sensing switcher. Once a new device powers on, the AT-PROHD82M will automatically select that source and display it on the selected output device. It will also take the analog stereo audio from any of the inputs and send it out on the HDMI outputs. -
Page 4: Features
FEATURES: • The AT-PROHD82M is an 8 input and 2 output matrix switcher and scaler • Any of the 8 inputs with stereo audio can simultaneously route to any output; and the same input can route to all outputs or any other combination •... -
Page 5: Panel Description
Navigate the On Screen Display for both output screens. 10) OUTPUT AUDIO-1 ADJUST Adjust Output-1 audio level via LED display 11) OUTPUT AUDIO-2 ADJUST Adjust Output-2 audio level via LED display 2. Rear Panel www.atlona.com | toll free: 1-877-536-3976 For International: 1-408-962-0515... - Page 6 16) DC POWER INLET The AT-PROHD82M is fitted with a DC power plug pack input connector. Please ensure that the plug pack used is of an approved type and is of sufficient current carrying capacity with the correct voltage and connector polarity.
-
Page 7: Remote Control
• For each destination output, select the appropriate input source by using the front panel input 1-8 select buttons, the supplied IR remote control or through the RS-232/RS-485 serial communications port • Upon power up, the AT-PROHD82M will return to its last used setting before powering down REMOTE CONTROL... -
Page 8: Installation
Connect all source equipment such as HD set top boxes, BluRay & DVD players, VCR, game system, digital media player or computer to any of the 8 inputs on the AT-PROHD82M. Connect the destination displays/tel- evisions to any of the 2 outputs using HDMI or VGA. Make all connections to source equipment and displays before connecting the power supply and powering the unit on. -
Page 9: Rs-232 Serial Commands
RS232 The Atlona AT-PROHD82M switcher can be controlled via the RS-232 serial control port to allow for interfacing to a PC, or similar third party control system. The serial communication parameters are 9600 baud, 8 bit no parity and 1 stop bit. This is often referred to as 9600 8N1. -
Page 10: Front Panel Lock
At Atlona, we respect and protect your privacy and assure you that your registration information is completely secure. Of course, Atlona product registration is totally voluntary and failure to register will not diminish your limited war- ranty rights. To register go to www.atlona.com/registration www.atlona.com | toll free: 1-877-536-3976... -
Page 11: Safety Information
Use only accessories recommended by ATLONA to avoid fire, shock or other Do not modify the wall plug. hazards. Doing so will void the warranty and safety features. - Page 12 Product, or repair or replacement of the Product that does not meet this Limited Warranty and which is returned to Atlona Technologies with a copy of Customer’s receipt. This Limited Warranty is void if failure of the Product has resulted from accident, abuse, or misapplication.
