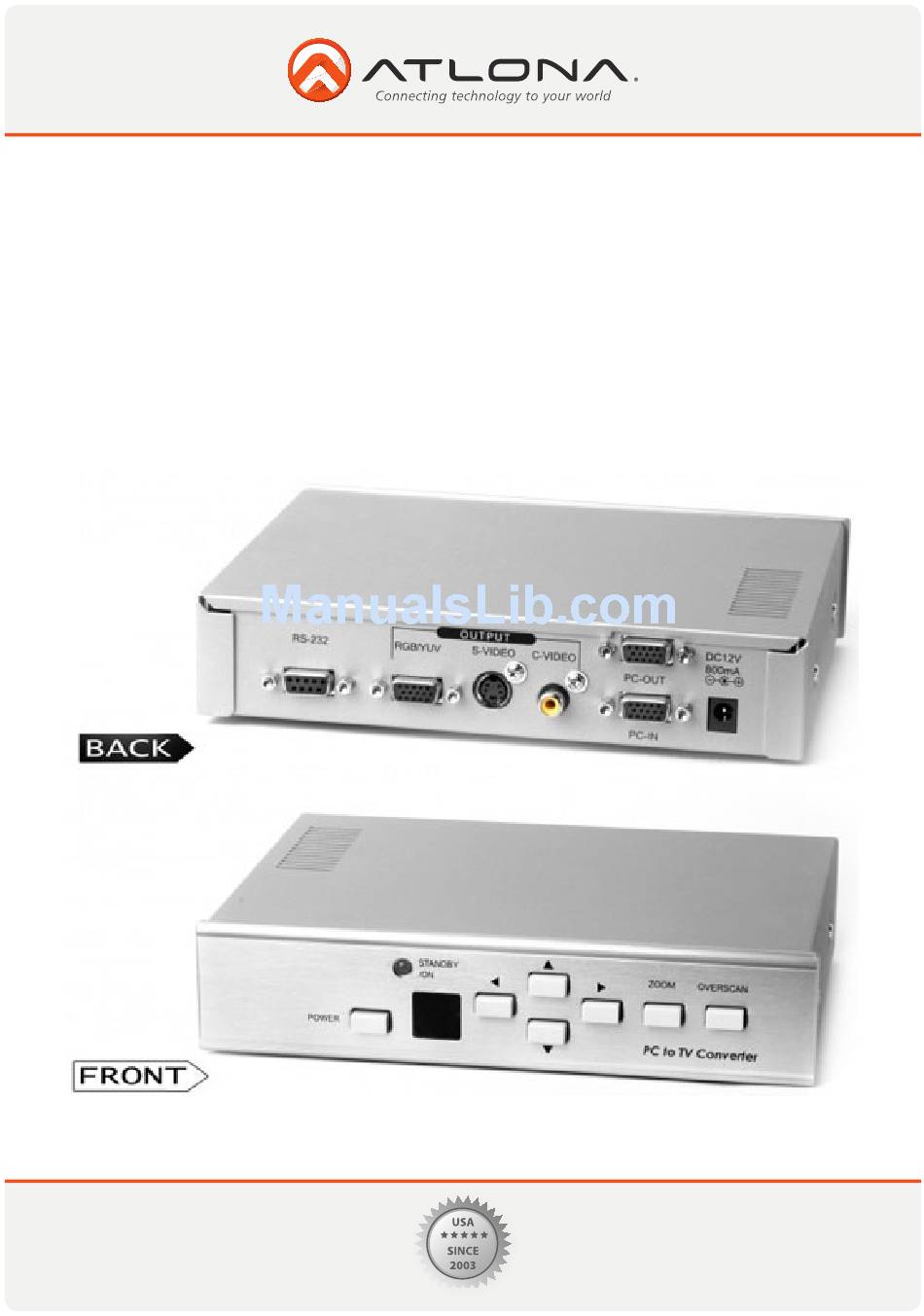

Page 1: User Manual
User Manual VGA ( PC ) TO COMPONENT / COMPOSITE / S-VIDEO CONVERTER AT-PC-AVSCOMP Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515... -
Page 2: Table Of Contents
..........6 6. Connection and Installation ..........9 7. Specifications ..........10 8. RS-232 Remote Control Protocol ..........11 8. Safety Information ..........14 9. Warranty ..........15 10. Atlona Product Registration ..........16 Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515... -
Page 3: Introduction
INTRODUCTION The AT-PC-AVSCOMP PC to Video scan converter is designed to convert a variety of computer images,from 640x480 up to 1600x1200, to interlaced NTSC or PAL video. It offers a variety of output formats including com- posite, S-Video, YUV and RGBS. It is ideal for use in applications like video conference, home theater,business presentation,lecturing room or viewing PC image on TV. -

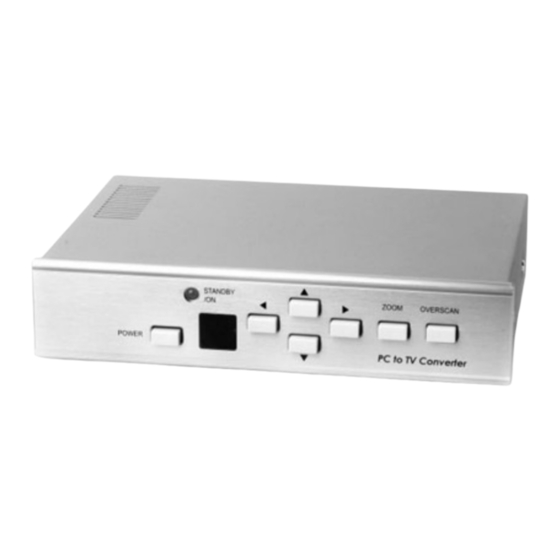

Page 4: Operation Controls And Functions
: Under zoom mode push the button to adjust the picture upward. 8. Zoom button: Push the button to zoom in or zoom out of a picture. 9. Overscan button: Push the button to overscan/underscan the picture. Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515... -
Page 5: Rear Panel
1. DC power supply 12V 800mA. 2. PC input VGA connector. 3. PC loop-through output connector. 4. Composite video out RCA connector. 5. S-video out connector. 6. RS-232 DB-9 connector. 7. RGB or YUV out connector. Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515... -
Page 6: Remote Control
15. Size/EXP: When a picture is in underscan mode, press the button to do size adjustment. When a picture is in overscan mode, press the button to do expand adjustment. 16. Aspect: Press the button to switch between standard 4:3 and widescreen 16:9 aspect ratio. Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515... -
Page 7: Rs-232 Software Operation
2. Execute setup.exe on installation CD. 3. OS maybe requires to update some files.Please re-start PC. After starting PC ready, execute setup. exe again. 4. Click taskbar menu (START)->(Programs)->(AT-PC-AVSCOMP) to execute software. If RS-232 is not ready then software enters virtual mode. - Page 8 TV system: NTSC or PAL output. Aspect pattern: 4:3 or widescreen. Test pattern: colorbar test pattern ON/OFF. Window ON Top: Application software window always on top ON/OFF. 8/9. Position/Pan and Size/Expand adjustments Position/Size for underscan Pan/Expand for overscan Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515...
- Page 9 14. Minimize: Shrink application software to window taskbar. 15. System tray: Shrink application software to system tray click the icon and return to normal window. 16. About: Display application software version and firmware version. Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515...
-
Page 10: Connection And Installation
B. Connecting the RGB out to the TV through enclosed VGA to 4 BNC cable. Select RGB as output mode: C. Connecting the YUV out to the TV through enclosed VGA to 4 BNC cable. Select YUV as output mode: Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515... -
Page 11: Specifications
HD-15(male) to HD-15(male) VGA cable x 1 1R to 1R video cable x 1 IR remote control x 1 Application software CD x 1 Power: DC 12V 800mA center:positive Dimensions: 204(W) x 155(D) x 50(H)mm Weight: 1kg Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515... -
Page 12: Rs-232 Remote Control Protocol
Command / Response codes of RS-232 transmission: “ The command / response codes are the combination of 3 bytes. the 1st, 2nd byte are text and the 3rd byte is value.” Remote Controller Command Codes to AT-PC-AVSCOMP Code Comment ‘PW’+0... - Page 13 SATURATION value = 0 ~ 63 ‘FF‘+value FLICKER value = 0 ~ 21 ‘VR’+1 VERSION require AT-PC-AVSCOMP unit firmware version ‘AL’+1 retrive AT-PC-AVSCOMP all status retrive ‘PW’+0 only when unit power off ‘PW’+1 ‘NP’+? ‘OV’+? ‘AS’+? ‘ZM’+? ‘CO’+? ‘BR‘+? ‘SA’+? ‘SH’+? ‘FF’+?
- Page 14 Converter transmits codes to Remote Controller when AT-PC-AVSCOMP operating. Code Comment ‘PW’+0 POWER power off ‘PW’+1 power on ‘NP’+0 NTSC output ‘NP’+1 PAL output ‘FZ’+0 FREEZE freeze image off ‘FZ’+1 freeze image on ‘OV’+0 OVERSCAN underscan ‘OV’+1 overscan ‘ZM’+0 ZOOM zoom off ‘ZM’+1...
-
Page 15: Safety Information
It may also cause damage to your AT-PC-AVSCOMP. Opening the product will void the warranty. Do not attempt to service the unit. Disconnect the product and contact your authorized Atlona reseller or contact Atlona directly. -
Page 16: Warranty
Atlona Technologies’ decision, either return of the price paid for the product, repair, or replacement of the product that does not meet this Limited Warranty and which is returned to Atlona Technologies with a copy of the Customer’s receipt. This Limited Warranty is void if failure of the product has resulted from accident, abuse, misapplication, or natural occurrence. -
Page 17: Atlona Product Registration
ATLONA PRODUCT REGISTRATION Thank you for purchasing this Atlona product. - We hope you enjoy it and will take an extra few moments to register your new purchase. Registration creates an ownership record if your product is lost or stolen and helps ensure you’ll receive notification of performance issues and firmware updates.
