HDBaseT Scaler with HDMI and
Analog Audio Outputs

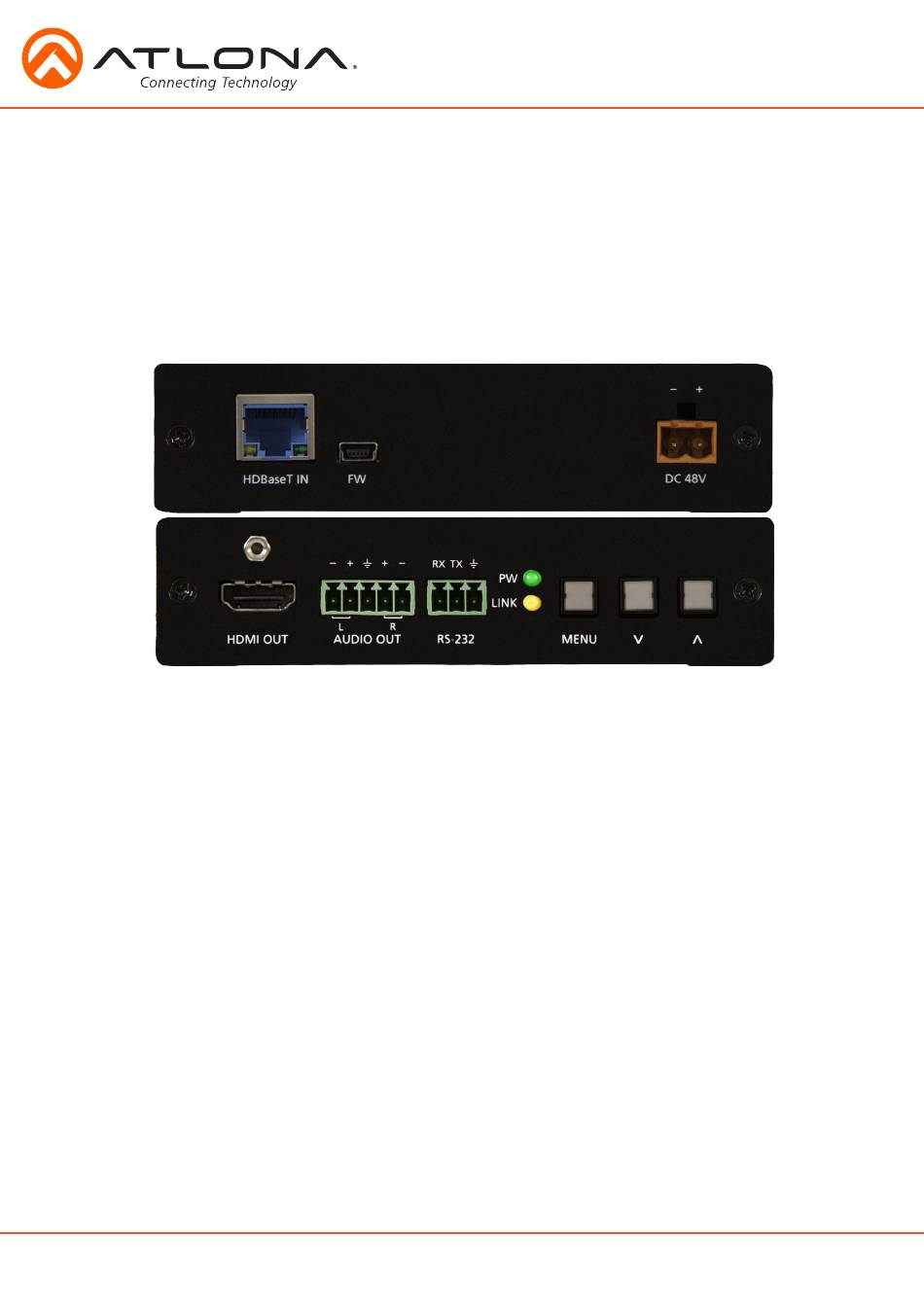

AT-HDVS-150-RX Installation Guide
Please check http://www.atlona.com/product/AT-HDVS-150-
RX for the most recent firmware update or manual.
Atlona HDVS recei ver was designed to smooth the transition from analog to digital displays in
schools and businesses, allowing advanced HDMI display devices to be used with the many VGA
computers still in use. Many displays don't support the resolutions and refresh rates typical of VGA
sources. In addition, the HDVS-150-RX is compatible with Atlona PoE switchers with HDBaseT
outputs and is a good solution when scaling is required for a specific display.
When used with a matching HDVS-150-TX or HDVS-150-TX-WP, projector control is enabled.
HDBaseT and Power over Ethernet
allow signal and power over a single category cable, with
(PoE)
RS-232 control capability.
Package Contents
• 1 x AT-HDVS-150-RX
• 3 x Captive screw female connector (5 pin: audio, 3 pin: RS-232, 2 pin: power)
• 1 x 48V DC captive screw power adapter
• 1 x Installation Guide
Toll free: 1-877-536-3976
atlona.com
Local: 1-408-962-0515
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Atlona AT-HDVS-150-RX
Summary of Contents for Atlona AT-HDVS-150-RX
- Page 1 RX for the most recent firmware update or manual. Atlona HDVS recei ver was designed to smooth the transition from analog to digital displays in schools and businesses, allowing advanced HDMI display devices to be used with the many VGA computers still in use.
- Page 2 Note: To ensure compatibility, please be certain both transmitter and receiver have blue HDBaseT ports. This ensures both products are PoE (48V) compliant. The HDVS-200-TX is not compatible with PoCC (black RJ45, 24V) devices Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
- Page 3 Use the screws at the upper contact plate and hold contact bar to release the top of the connector to compress the wires in place. wires. the wire against the contact plate. Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
- Page 4 Important! With unbalanced connections a jumper is needed between ground and negative to reduce noise RS-232 Connection Wire color RS-232 RS-232 pin out is determined by the connected differs by cable RX TX device and connects as RX , TX manufacturer. (receiver) (transmitter) (ground) (See picture 1) Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
- Page 5 On some devices, the functions of pins 2 and 3 are reversed. Set up and Control Software Set up and control software can be found on the AT-HDVS-150-RX webpage on atlona.com. URL: http://www.atlona.com/product/AT-HDVS-150-RX/ ( software found under the “Resources”...
- Page 6 Troubleshooting 1. Can I use the AT-HDVS-150-RX with an AT-HDVS-200-TX? We do not recommend that you use the AT-HDVS-200-TX with the AT-HDVS-150-RX, as this will result in the limited functionality of both products. 2. How do I check the firmware version? Press the MENU button for five seconds to show the On-Screen Display, then use the ˄...
