Summary of Contents for Atlona AT-DP400

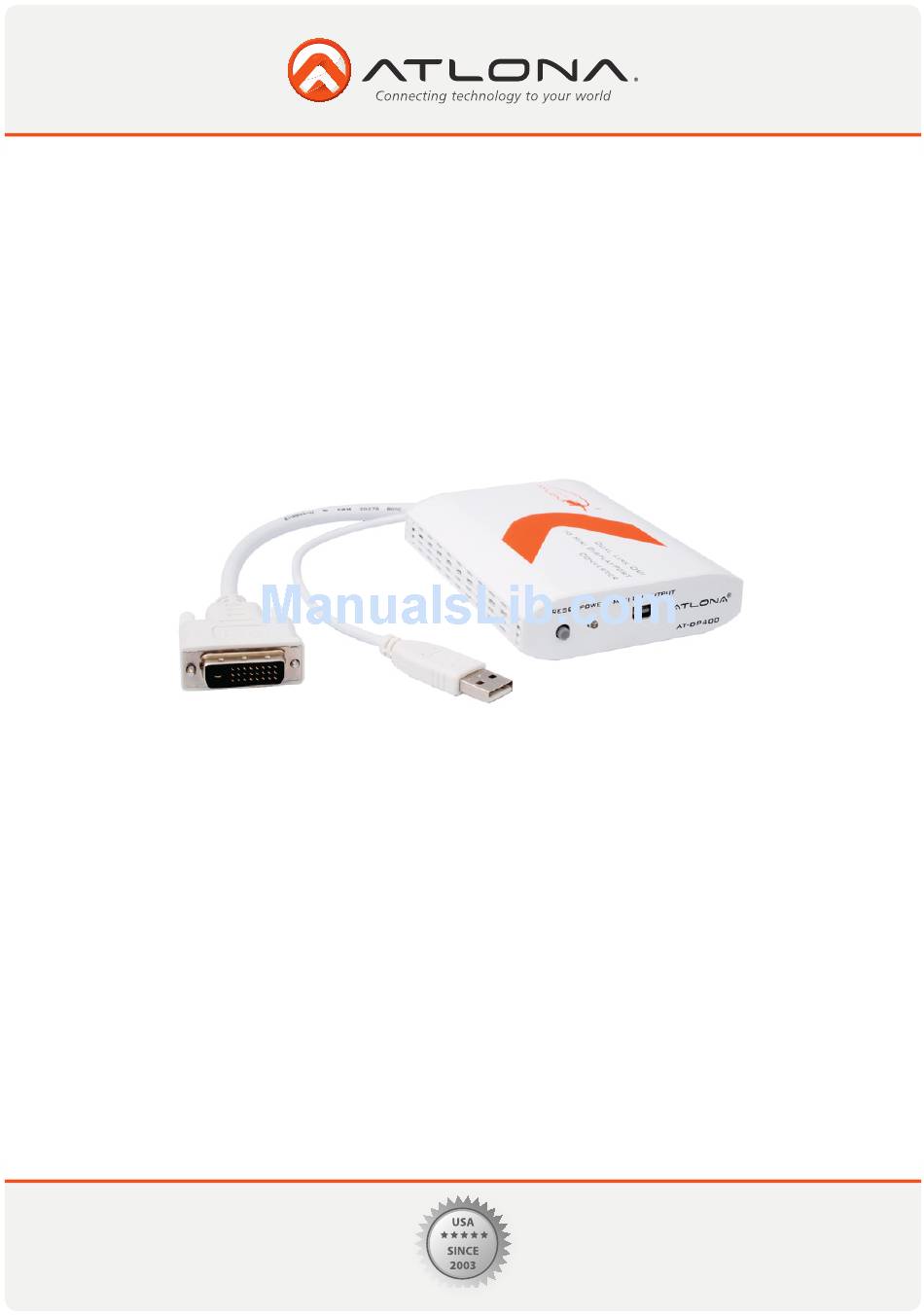

- Page 1 DVI to Mini DisplayPort Converter AT-DP400 User Manual Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515...
-
Page 2: Table Of Contents
6. Specifications 7. Panel Descriptions 7.1. Front Panel 7.2. Rear Panel 8. Pin Assignment 8.1. DVI-D connector 8.2. Mini DisplayPort Connector 9. Connection Diagram 10. Troubleshooting 11. Safety Information 12. Warranty 13. Atlona Product Registration Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515... -
Page 3: Introduction

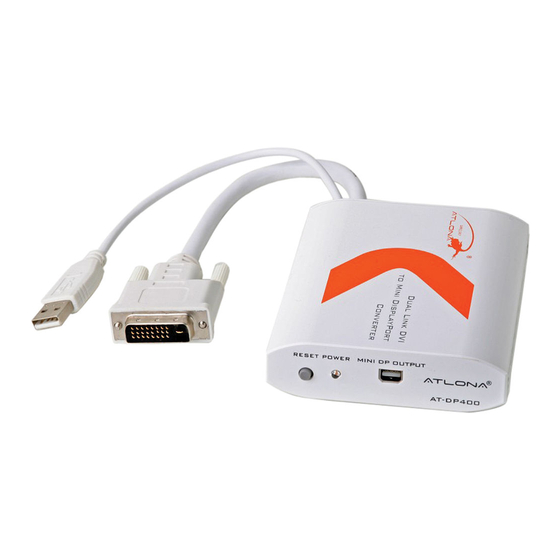

INTRODUCTION The Atlona AT-DP400 is DVI (Dual Link) to Mini DisplayPort Converter. This is one of a kind device is specifically designed for any digital DVI source signal (such as a Mac/PC Computer with DVI output) to be displayed on the Apple iMac 27”... -
Page 4: Specifications
2. DVI & USB INPUT: DVI/USB 7-inch Pig-Tail. Connect DVI to the computers DVI output for video signal and USB to the Computers USB output for power. If there is no empty USB outputs, Power to USB adapter could be used. Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515... -
Page 5: Pin Assignment
CONFIG2 ML Lane 1 (p) ML Lane 3 (p) ML Lane 1 (n) ML Lane 3 (n) ML Lane 2 (p) AUX CH (p) ML Lane 2 (n) AUX CH (n) PWR Out DP_PWR Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515... -
Page 6: Connection Diagram
CONNECTION DIAGRAM iMac 27” or Apple 24” Cinema Display AT-DP400 Mini DisplayPort cable cable cable Notebook Mini Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515... -
Page 7: Troubleshooting
Question: What does the Red Light mean on the DP400? Answer: The Red light can mean that the unit isn’t being powered on correctly. Please re-connect the USB and the DVI cables. Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515... -
Page 8: Safety Information
Never open, remove unit panels, or make any adjustments not described in this manual. Attempting to do so could expose you to dangerous electrical shock or other hazards. It may also cause damage to your AT-DP400. Opening the product will void the warranty. -
Page 9: Warranty
To the maximum extent permitted by applicable law, in no event shall Atlona Technologies or its suppliers be liable for any damages arising out of the use of or inability to use this product, even if Atlona Technologies has been advised of the possibility of such damages. Such damages include but are not limited to: special, inciden- tal, consequential, or indirect damages for personal injury, loss of business profits, business interruption, loss of business information, or any other pecuniary loss. -
Page 10: Atlona Product Registration
ATLONA PRODUCT REGISTRATION Thank you for purchasing this Atlona product. - We hope you enjoy it and will take an extra few moments to register your new purchase. Registration creates an ownership record if your product is lost or stolen and helps ensure you’ll receive notification of performance issues and firmware updates.
