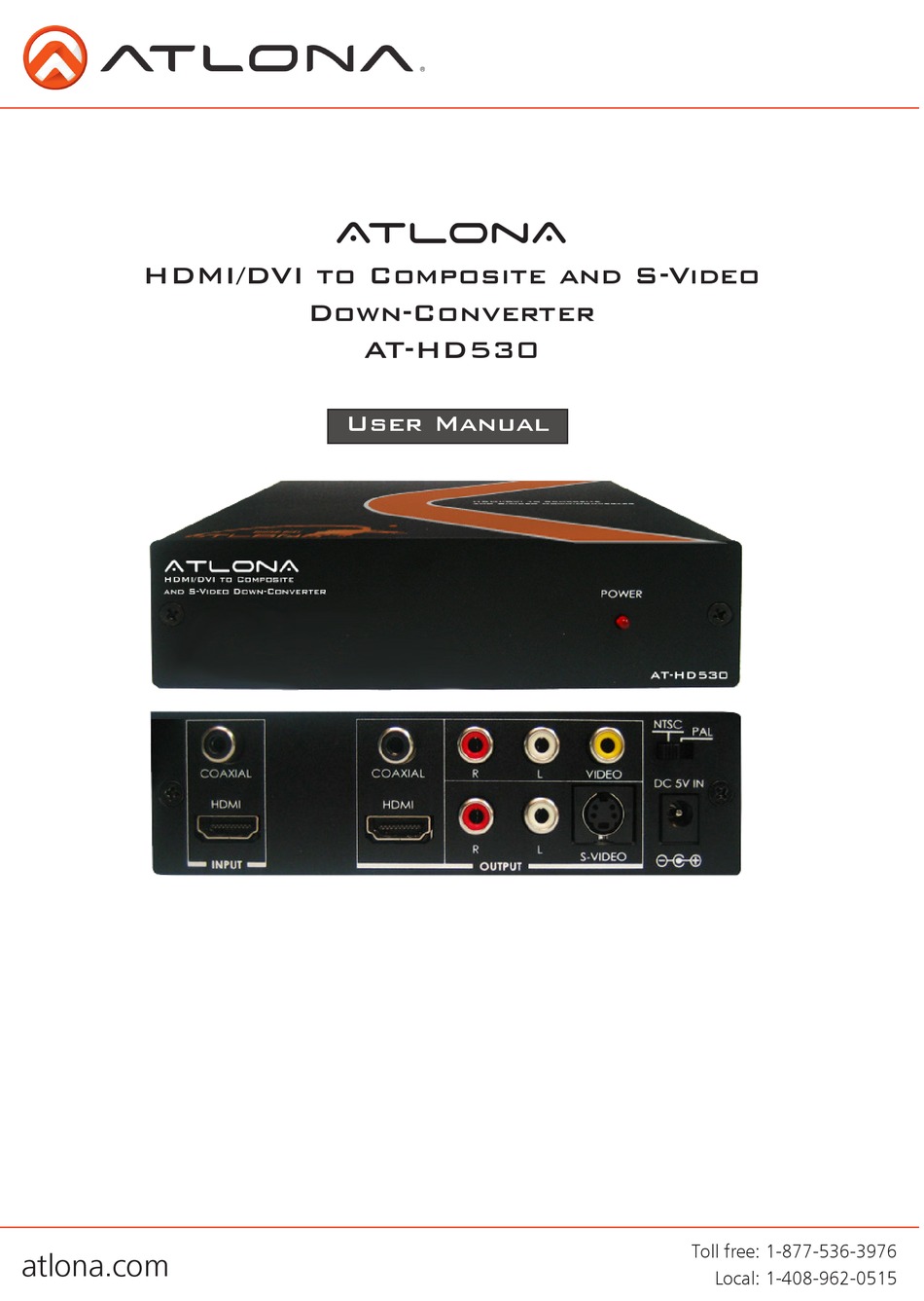

- Page 1 AtlonA HDMI/DVI to Composite and S-Video Down-Converter AT-HD530 User Manual Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
-
Page 2: Table Of Contents
3. Package Contents ..........4. Panel Descriptions ..........4.1 Front Panel ..........4.2 Rear Panel ..........5. Connection and Installation ..........6. Specifications ..........7. Safety Information ..........8. Warranty ..........9. Atlona Product Registration ..........Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 3: Introduction
Audio. Along with a featured HDMI/DVI loop-out, this converter has the ability to support resolutions up to 1080p. In addition, this unit is able to detect and down convert those resolu- tions of to PAL or NTSC formats. Atlona’s AT-HD530 is perfect for users using CRT or Standard definition displays and HD sources. -
Page 4: Panel Descriptions
6. Composite Video/S-Video: Connect the Composite or S-Video to the input of display. 7. Select between NTSC and PAL system for output. 8. Power: Plug the 5VDC power supply into the unit and connect to assigned AC wall outlet. Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 5: Connection And Installation
CONNECTION and INSTALLATION AMPLIFIER AT-HD530 DVD recorder or Monitor HDMI TV SPECIFICATIONS Video Input ports HDMI Audio Input ports Digital Coaxial (designed for DVI with Audio Applications) Output ports 1 x Composite-Video with Audio, 1 x S-Video with Audio Power Supply 5V/2.6A (universal) - Page 6 Use only accessories recommended by ATLONA to avoid fire, shock or other Do not modify the wall plug. hazards. Doing so will void the warranty and safety features.
-
Page 7: Warranty
Atlona requires that products returned are properly packed, preferably in the original carton, for shipping. Cartons not bearing a return authorization or case number will be refused. Atlona, at its sole discretion, reserves the right to reject any products received without advanced authorization. Authorizations can be requested by calling 1-877-536-3976 (US toll free) or 1-408- 962-0515 (US/international) or via Atlona’s website at www.atlona.com. -
Page 8: Atlona Product Registration
Atlona’s products may be used in conjunction with. Atlona, at its sole discretion, reserves the right not to extend its warranty offering in instances arising outside its normal course of business including, but not limited to, damage inflicted to its products from acts of god.
