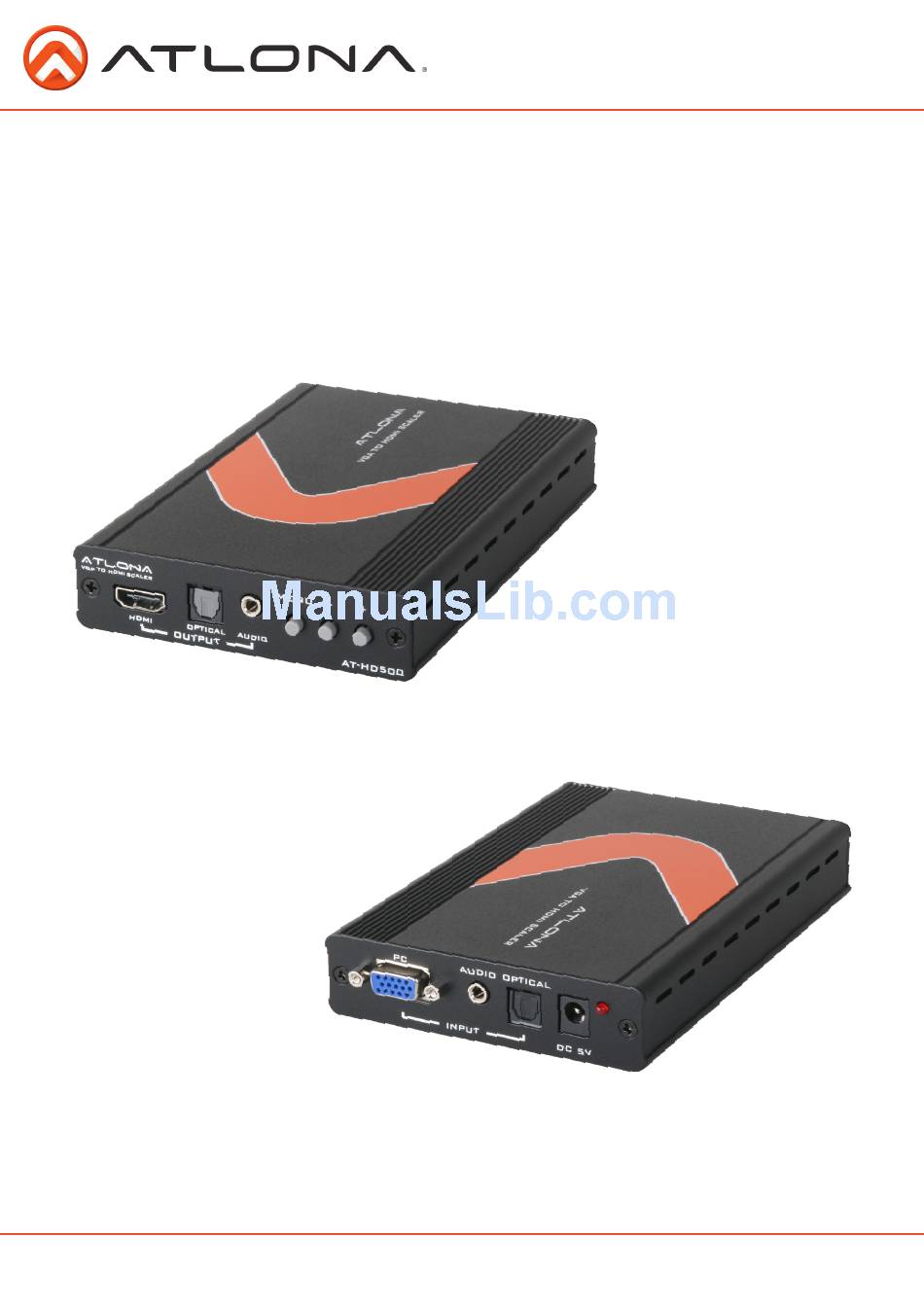

Page 1: User Manual
Atlona VGA to HDMI Converter/Scaler AT-HD500 User Manual Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 2: Table Of Contents
7. Connection and Installation ..................7 8. Device Reset ..................7 9. Specifications ..................8 10. Supported Resolutions ..................8 9. Safety Information ..................9 10. Warranty ..................10 11. Atlona Product Registration ..................11 Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 3: Introduction
Introduction The Atlona VGA to HDMI converter/scaler can receive VGA signals at VESA resolutions as low as 640x480, convert to HDMI, and scale up to 1920x1200 or 1080p. Audio isn’t forgotten, with 3.5mm (L/R analog) and TOSLink (digital) inputs, the AT-HD500 outputs analog and digital audio over 3.5mm, TOSLink, and HDMI;... -
Page 4: Panel Description
1. PC Input: Connect to a VGA source 2. Audio Input: Connect analog audio from a source device 3. Optical Input: Connect digital audio from a source device. 4. DC 5V Port: Connect the included power supply to this port. Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 5: Osd Menu
15 minutes before the output signal is shut off FACTORY RESET MENU INFORMATION SOURCE (Input) INPUT (Resolution) OUTPUT (Resolution) VERSION (Firmware) MIRROR ON / OFF EXIT Close OSD Menu Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 6: Laptop Set Up
Note: If doing extended mode and you want the second display to be on the left click on the display in the menu and drag it to the left. The displays should read 2 then 1 on the screen (pictured below). Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 7: Connection And Installation
Connection and Installation VGA and Audio source AT-PA100-G2 (optional amp) Purchase at atlona.com HDTV Integrated Amplifier Resetting the unit To reset the HD500 use the following steps: 1. Press and hold the menu button for five seconds 2. While still holding the menu button, unplug the HD500 3. -
Page 8: Specifications
0°C to 48°C Supported Resolutions INPUT (VGA) 75/85 VESA: 640x480 800x600 1024x768 1280x1024 1600x1200 1280x800 1680x1050 1920x1200 OUTPUT (HDMI) VESA: 640x480 800x600 1024x768 1280x1024 1600x1200 1280x800 1680x1050 1920x1200 VIDEO: 480i 480p 576i 576p 720p 1080i 1080p Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 9: Safety Information
Attempting to do so could expose you to dangerous electrical shock or other hazards. It may also cause damage to your AT-HD500. Opening the product will void the warranty. Do not attempt to service the unit. Disconnect the product and contact your authorized Atlona reseller or contact Atlona directly. -
Page 10: Warranty
Atlona Technologies’ and its suppliers’ entire liability and Customer’s exclusive remedy shall be, at Atlona Technologies’ decision, either return of the price paid for the product, repair, or replacement of the product that does not meet this Limited Warranty and which is returned to Atlona Technologies with a copy of the Customer’s receipt. -
Page 11: Atlona Product Registration
Atlona Product Registration Thank you for purchasing this Atlona product. - We hope you enjoy it and will take an extra few moments to register your new purchase. Registration creates an ownership record if your product is lost or stolen and helps ensure you’ll receive notification of performance issues and firmware updates.
