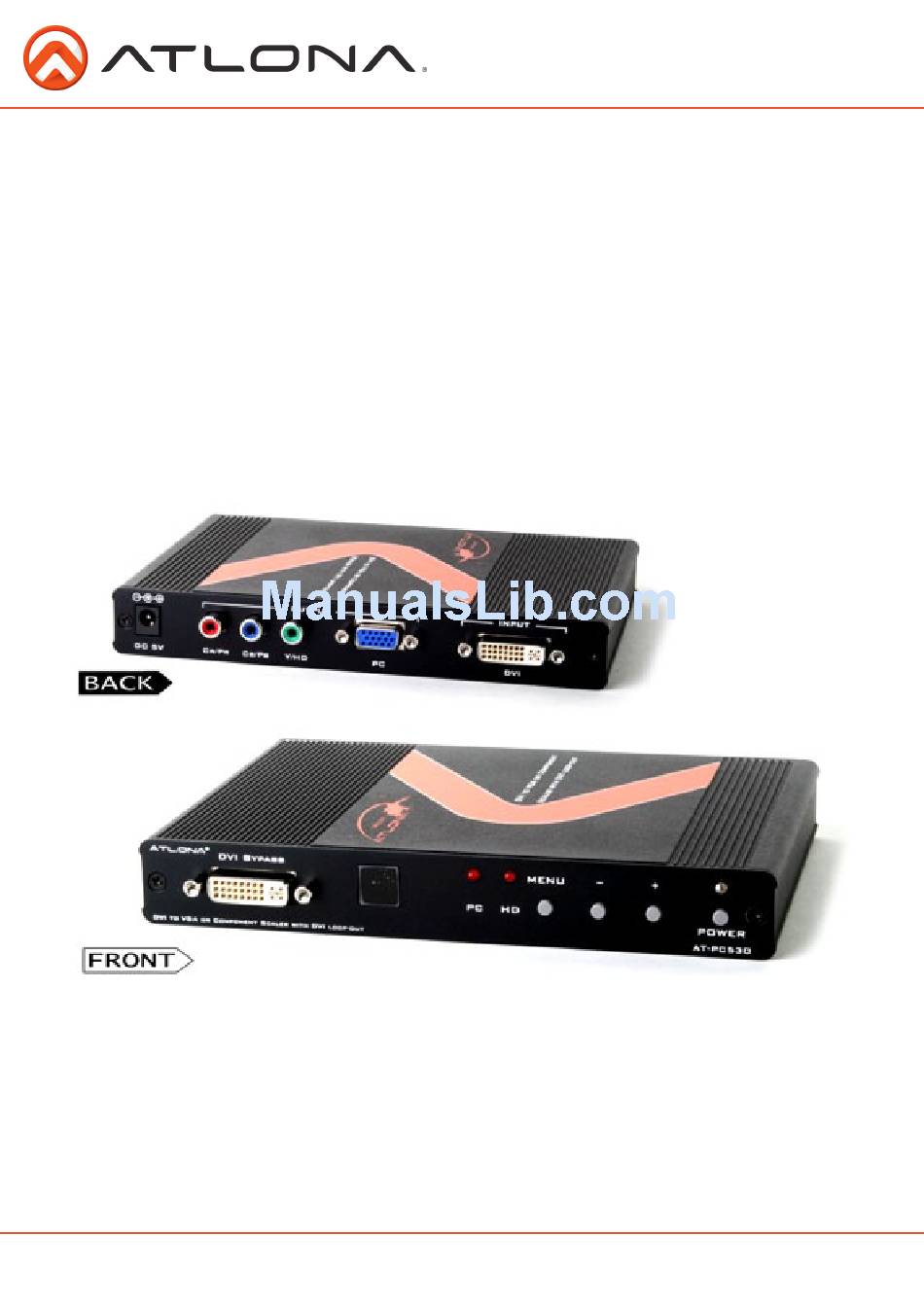

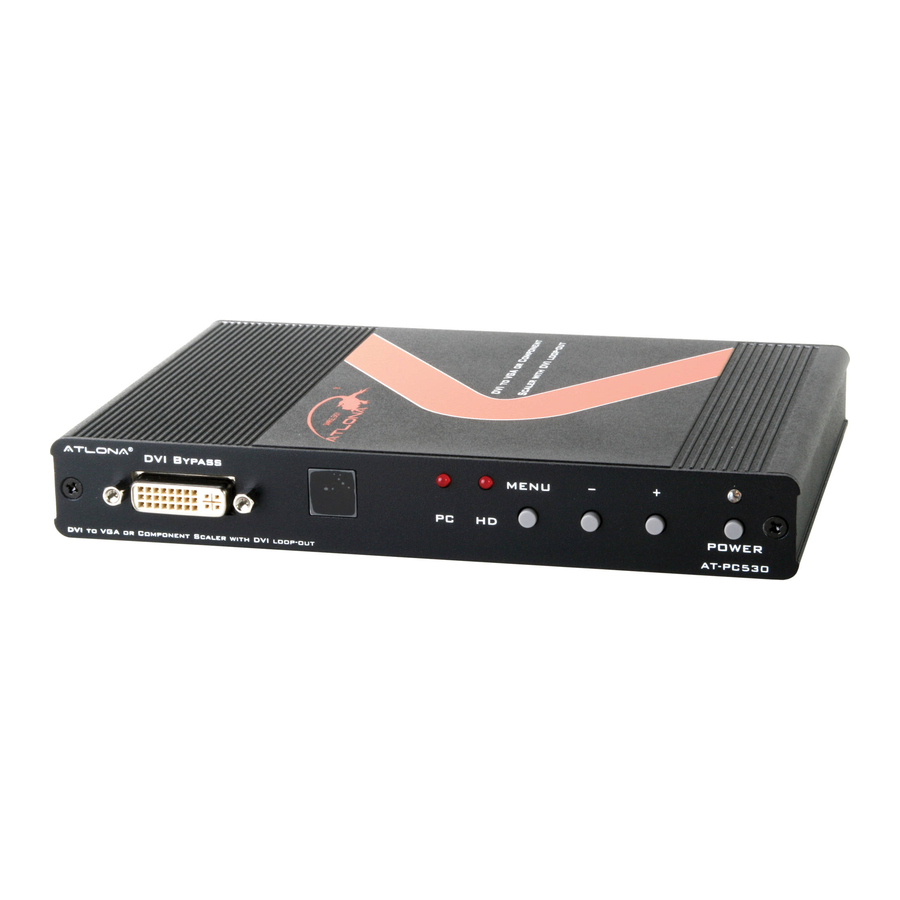

- Page 1 User Manual DVI to VGA or Component Scaler with DVI loop-out AT-PC530 Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
-
Page 2: Table Of Contents
7. DVI-D connector Pin Assignment ..........5 8. OSD Operation ..........5 9. Connection Diagram ..........6 10. Support Resolution ..........7 11. Safety Information ..........8 12. Warranty ..........9 13. Atlona Product Registration ..........10 Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 3: Introduction
1080p or 1920x1200. FEATURES • The AT-PC530 is able to accept DVI resolution from 640x480 to 1920x1200 and scaler them up or down to either component video or vga at resolutions up to 1920x1200 or 1080p. • The output resolution can be selected via IR Remote control or though On Screen Display • The On Screen Display allows user to adjust brightness, contrast, color, RGB level and H-V position. -
Page 4: Specification
0 0 C ~ 40 0 C / 32 0 F ~ 104 0 F Operating Temperature -20 0 C ~ 60 0 C / -4 0 F ~ 140 0 F Storage Temperature Relative Humidity 20~90% RH (non-condensing) Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 5: Panel Descriptions
2. OUTPUT Cr/Pr, Cb/Pb & Y/HD: Connect a component video display to this output 3. OUTPUT PC: Connect a VGA cable to a monitor 4. INPUT DVI: Connect with DVI cable from your source Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 6: Dvi-D Connector Pin Assignment
NATIVE / VGA / SVGA / XGA / SXGA /UXGA / 480i / 480p/ 720p@60Hz /1080i@60Hz / 1080p@60Hz / 576i /576p / 720p@50Hz / 1080i@50Hz / 1080p@50Hz / WXGA / WSXGA /WUXGA AUDIO HDMI / EAR PHONE / OPTICAL Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 7: Connection Diagram
- BACKGROUND 0 ~ 100 of OSD Transparent Level - EXIT Back to 1st Tier INFORMATION SOURCE (Input Interface) INPUT (Input Resolution) OUTPUT (Output Resolution) VERSION (Firmware Version) EXIT Close OSD Menu CONNECTION DIAGRAM Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 8: Support Resolution
SUPPORT RESOLUTION DVI-D INPUT VGA Output Component Output PC/HD SD/HD 480I/576I (NTSC/PAL) 480P/576P 720P@(50/60) 1080I@(25/30) 1080P@(50/60) VGA@(60/72/75/85) SVGA@(56/60/72/75/85) XGA@(60/70/75/85) SXGA@(60/75/85) UXGA@60 WXGA@60(1280x800) WSXGA@60(1680x1050) WUXGA@60(1920x1200) Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 9: Safety Information
It may also cause damage to your AT-PC530. Opening the product will void the warranty. Do not attempt to service the unit. Disconnect the product and contact your authorized Atlona reseller or contact Atlona directly. - Page 10 Atlona requires that products returned are properly packed, preferably in the original carton, for shipping. Cartons not bearing a return authorization or case number will be refused. Atlona, at its sole discretion, reserves the right to reject any products received without advanced authorization. Authorizations can be requested by calling 1-877-536-3976 (US toll free) or 1-408- 962-0515 (US/international) or via Atlona’s website at www.atlona.com.
-
Page 11: Atlona Product Registration
Atlona’s products may be used in conjunction with. Atlona, at its sole discretion, reserves the right not to extend its warranty offering in instances arising outside its normal course of business including, but not limited to, damage inflicted to its products from acts of god.
