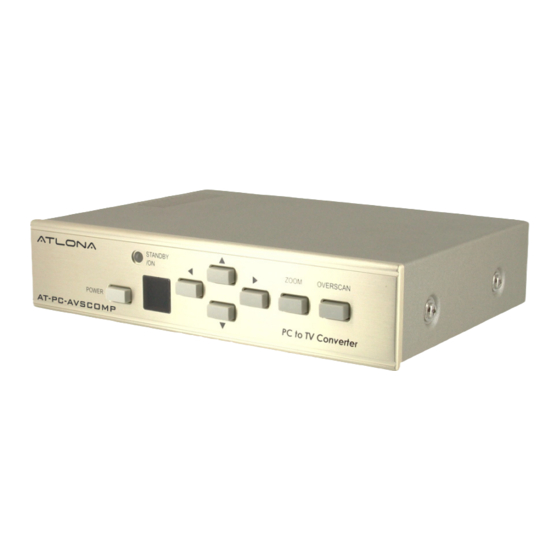

Atlona AT-PC-AVSCOMP User Manual

Pc to video converter
Hide thumbs Also See for AT-PC-AVSCOMP:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Operating Manual, User Manual
AtlonA
PC to Video Converter
AT-PC-AVSCOMP
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AT-PC-AVSCOMP and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Atlona AT-PC-AVSCOMP

Summary of Contents for Atlona AT-PC-AVSCOMP

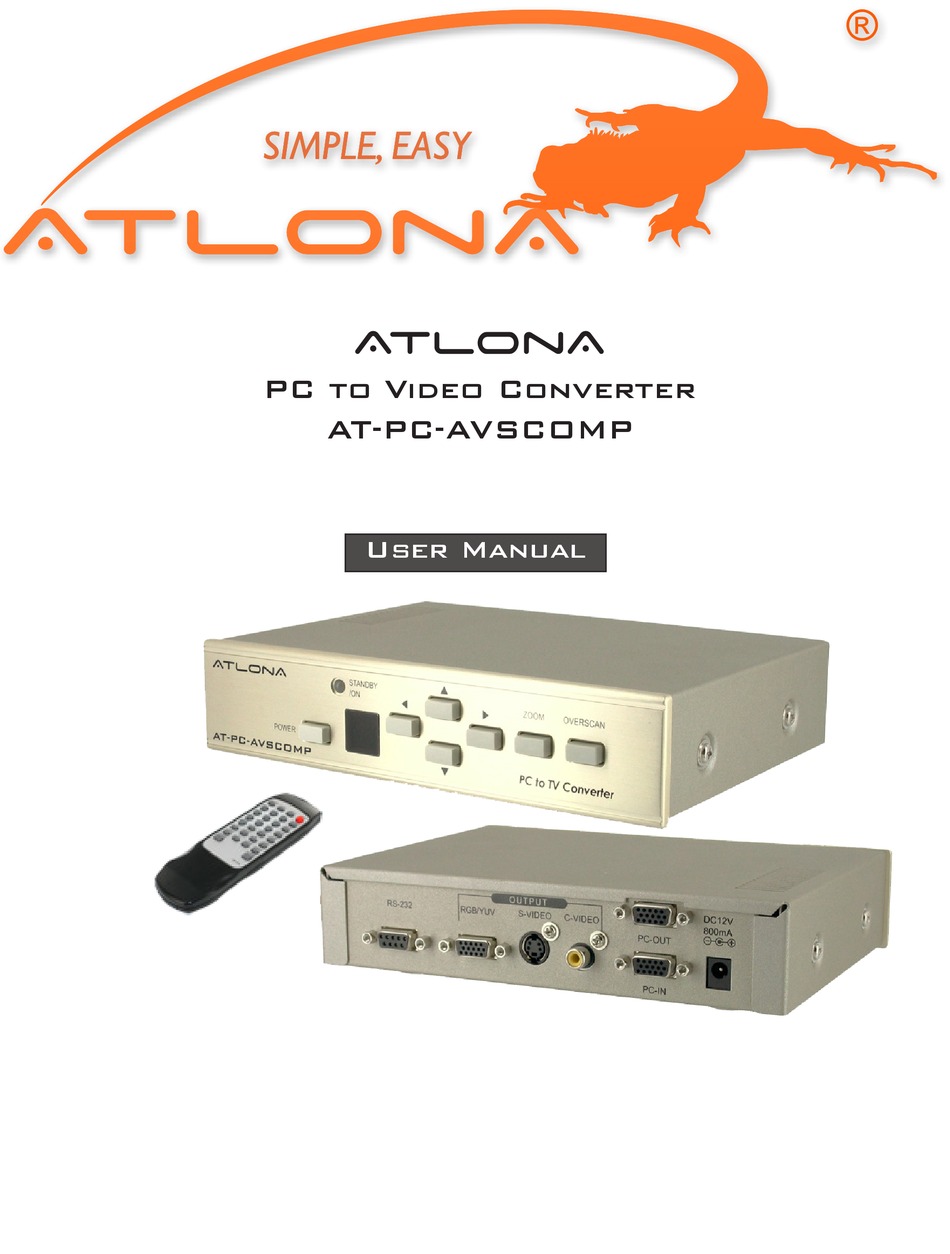

  • Page 1 AtlonA PC to Video Converter AT-PC-AVSCOMP User Manual...

  • Page 2: Table Of Contents

    ..........3.2 Rear Panel ..........3.3 Remote Control ..........4. RS-232 Software Operation ..........6. Connection and Installation ..........7. Specifications ..........8. RS-232 Remote Control Protocol ..........8. Safety Information ..........9. Warranty ..........10. Atlona Product Registration ..........

  • Page 3: Introduction

    INTRODUCTION The AT-PC-AVSCOMP PC to Video scan converter is designed to convert a variety of computer images,from 640x480 up to 1600x1200, to interlaced NTSC or PAL video. It offers a variety of output formats including composite, S-Video, YUV and RGBS. It is ideal for use in applications like video conference, home theater,business presentation,lecturing room or viewing PC image on TV.

  • Page 4: Operation Controls And Functions

    OPERATION CONTROLS and FUNCTION Front Panel 1. Standby/On indicator: The indicator illuminates in red when it is in Standby mode, illuminates in green when it is in ON mode. 2. Power button: Push the button to turn power ON or Standby. 3.

  • Page 5: Rear Panel

    Rear Panel 1. DC power supply 12V 800mA. 2. PC input VGA connector. 3. PC loop-through output connector. 4. Composite video out RCA connector. 5. S-video out connector. 6. RS-232 DB-9 connector. 7. RGB or YUV out connector.

  • Page 6: Remote Control

    Remote Control 1. Power: Power ON/Off. 2. Video setting adjustments for picture,contrast, bright,color and sharpness. OUTPUT 3. V-Reset: Press the button to reset picture adjustment 2 to factory default vaule. 4. NTSC/PAL: Press the button to select NTSC or PAL as video output. 5.

  • Page 7: Rs-232 Software Operation

    3. OS maybe requires to update some files.Please re-start PC. After starting PC ready, ex- ecute setup. exe again. 4. Click taskbar menu (START)->(Programs)->(AT-PC-AVSCOMP) to execute software. If RS-232 is not ready then software enters virtual mode. After RS-232 connection being ready, start the software again and enters real mode.
  • Page 8 5. Magnifier: Drag and move magnifier to the place where you want to see. If the screen image is changed, then click (refresh) X1.5 Close X2.0 Big frame Refresh Small frame 6. Over/Under scan: TV overscan adjustments are “pan“ and “expand“; underscan adjustments are “position“ and “size“.
  • Page 9 14. Minimize: Shrink application software to window taskbar. 15. System tray: Shrink application software to system tray click the icon and return to normal window. AT-PC-AVSCOMP On system tray 16. About: Display application software version and firmware version. Application software version...

  • Page 10: Connection And Installation

    CONNECTION and INSTALLATION A. Connecting the RGB output to the scart input of the TV using enclosed VGA to SCART cable. Select RGB as output mode: B. Connecting the RGB out to the TV through enclosed VGA to 4 BNC cable. Select RGB as output mode: C.

  • Page 11: Specifications

    SPECIFICATIONS Input terminal: HD-15 R/G/B/H/V Input resolution: Common resolution lists: VGA@60Hz up to 140Hz refresh rate SVGA@60Hz up to 120Hz refresh rate XGA@60Hz up to 85Hz refresh rate SXGA@60Hz refresh rate UXGA@60Hz refresh rate Output terminal: Composite video RCA, S-Video mini-din, PC-Out (pass through) HD-15, PC- In HD-15, RGB/YUV-Out HD-15...

  • Page 12: Rs-232 Remote Control Protocol

    Command / Response codes of RS-232 transmission: “ The command / response codes are the combination of 3 bytes. the 1st, 2nd byte are text and the 3rd byte is value.” Remote Controller Command Codes to AT-PC-AVSCOMP Code Comment ‘PW’+0...
  • Page 13 ‘PW’+0 only when unit power off ‘PW’+1 ‘NP’+? ‘OV’+? ‘AS’+? ‘ZM’+? ‘CO’+? ‘BR‘+? ‘SA’+? ‘SH’+? ‘FF’+? Converter transmits codes to Remote Controller when AT-PC-AVSCOMP operating. Code Comment ‘PW’+0 POWER power off ‘PW’+1 power on ‘NP’+0 NTSC output ‘NP’+1 PAL output ‘FZ’+0...

  • Page 14: Safety Information

    Use only accessories recommended by ATLONA to avoid fire, shock or other Do not modify the wall plug. hazards. Doing so will void the warranty and safety features.

  • Page 15: Warranty

    Product, or repair or replacement of the Product that does not meet this Limited Warranty and which is returned to Atlona Technologies with a copy of Customer’s receipt. This Limited Warranty is void if failure of the Product has resulted from accident, abuse, or misapplication.

  • Page 16: Atlona Product Registration

    At Atlona, we respect and protect your privacy and assure you that your registration information is completely secure. Of course, Atlona product registration is totally voluntary and failure to register will not diminish your limited warranty rights. To register go to www.atlona.com/registration...
