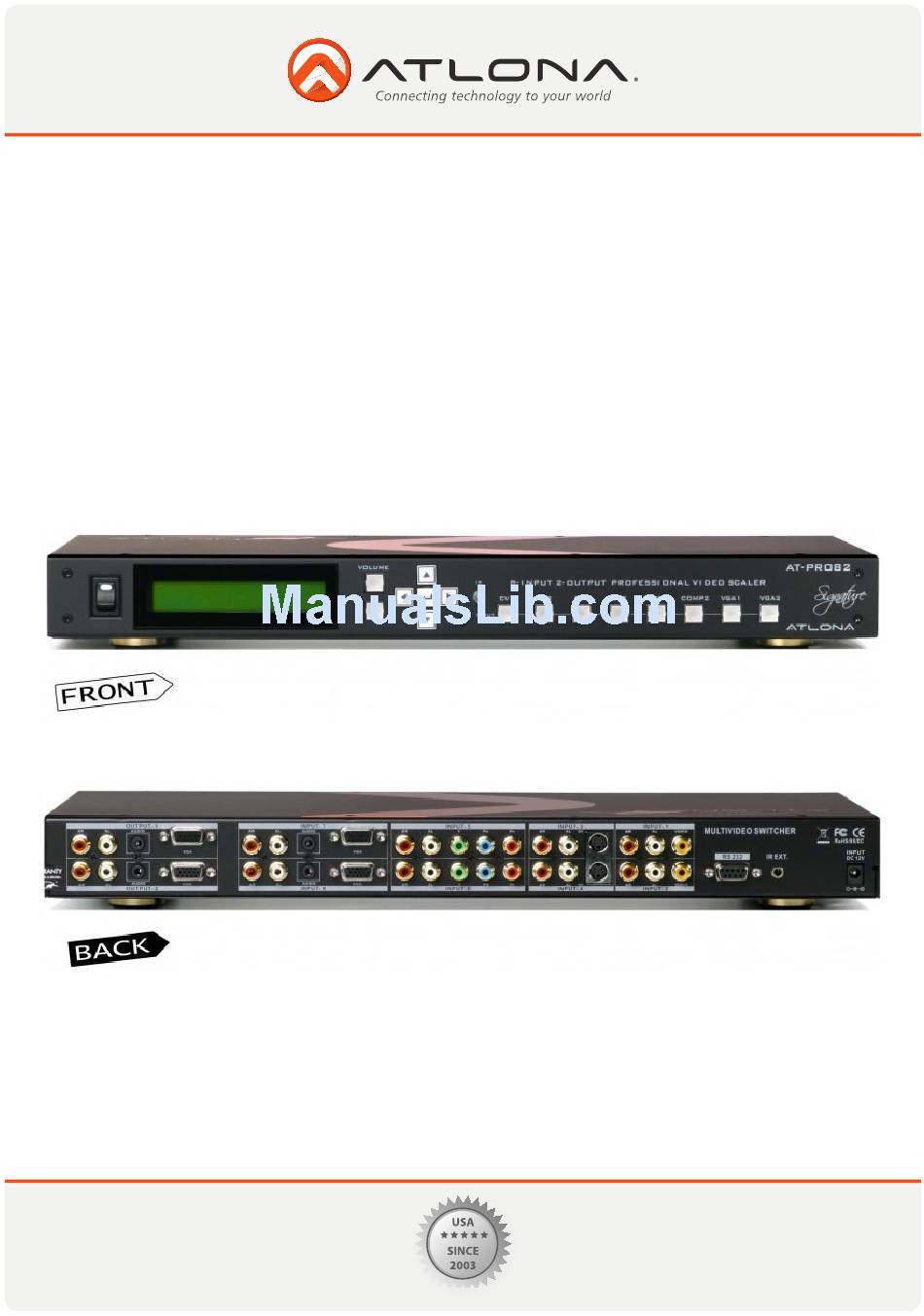

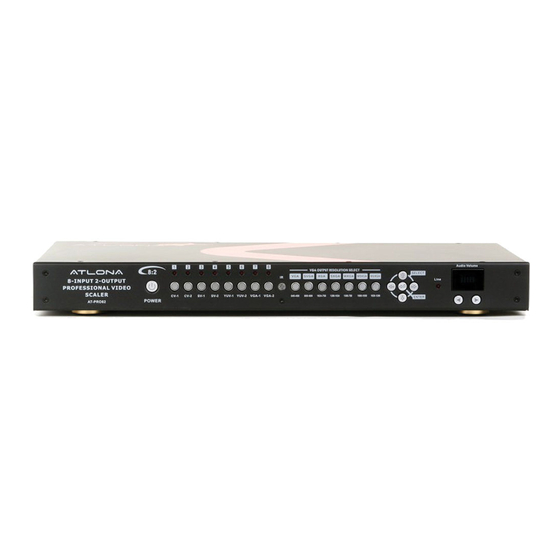

User Manual 8-input 2-output Professional Video Scaler AT-PRO82 Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515... -
Page 2: Table Of Contents
..........8 9.2 Power Off Mode ..........8 9.3 Front Panel Lock ..........8 9.4 Unit Reset ..........8 10. Installation ..........8 11. SafetyInformation ..........9 12. Warranty ..........10 13. AtlonaProductRegistration ..........11 Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515... -
Page 3: Introduction
Atlona Technologies’ AT-PR082 is a unique 8-input 2-output Professional Video Scaler designed to work as a switcher and scaler for multiple Audio/Video sources and displays. This Atlona unit is capable of switching 2 x Composite Video, 2 x S-Video, 2 x Component and 2 x VGA, all with Stereo Audio signals going out to 2 x VGA with Stereo Audio Outputs. -
Page 4: Package Contents
PACKAGE CONTENTS • Atlona 8-input 2-output Professional Video Scaler (AT-PR082) • Instruction Manual • IR Remote Control • Universal AC/DC power adapter: 12VDC PANEL DESCRIPTIONS 1. POWER SWITCH. The power switch turns the unit ON/OFF. The LED will illuminate red to indicate the switcher is ON and receiving power 2. -
Page 5: Rear Panel
8. RS232 CONTROL. RS 232 control allows for interfacing to a PC. 9. IR EXTENDER CONTROL. IR Extender to extend distance of 300M 10. POWER INPUT. Use to plug in 12V DC power adaptor. Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515... -
Page 6: Connection
Connect all displays to desired Audio/Video Outputs Power on all sources and displays Set AT-PR082 Powerswitch to (ON) When powering up, Atlona’s Matrix switcherwill return to its last used setting. For each destination output select the appropriate input source by using: • The front panel input 1-8 select buttons • RS 232... -
Page 7: Ir Extender
IR EXTENDER 1. Rear Panel IR Extender Ports 2. The IR Extender Components Setup Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515... -
Page 8: Rs-232 Serial Interface
2. RS-232 Atlona’s AT-PR082 can be controlled via the RS-232 serial control to allow interfacing with a PC, The serial communication parameters are 9600 baud, 8 bit, No Parity and 1 stop bit - this is often referred to as 9600 8N1. -
Page 9: Protocol Commands
Vol002, Vol003, Vol004, Vol005 Clear[Y] Clear the preset command [Y]. Note: Code entry is CASE SENSITIVE. Do not insert spaces between letter/number code entries. INSTALLATION VGA monitor Set Top Box DVD Player Projector RS232 Control Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515... -
Page 10: Safetyinformation
It may also cause damage to your AT-PRO82. Opening the product will void the warranty. Do not attempt to service the unit. Disconnect the product and contact your authorized Atlona reseller or contact Atlona directly. -
Page 11: Warranty
Atlona Technologies’ decision, either return of the price paid for the product, repair, or replacement of the product that does not meet this Limited Warranty and which is returned to Atlona Technologies with a copy of the Customer’s receipt. This Limited Warranty is void if failure of the product has resulted from accident, abuse, misapplication, or natural occurrence. -
Page 12: Atlonaproductregistration
ATLONA PRODUCT REGISTRATION Thank you for purchasing this Atlona product. - We hope you enjoy it and will take an extra few moments to register your new purchase. Registration creates an ownership record if your product is lost or stolen and helps ensure you’ll receive notification of performance issues and firmware updates.
