Summary of Contents for Atlona AT-PC530
-

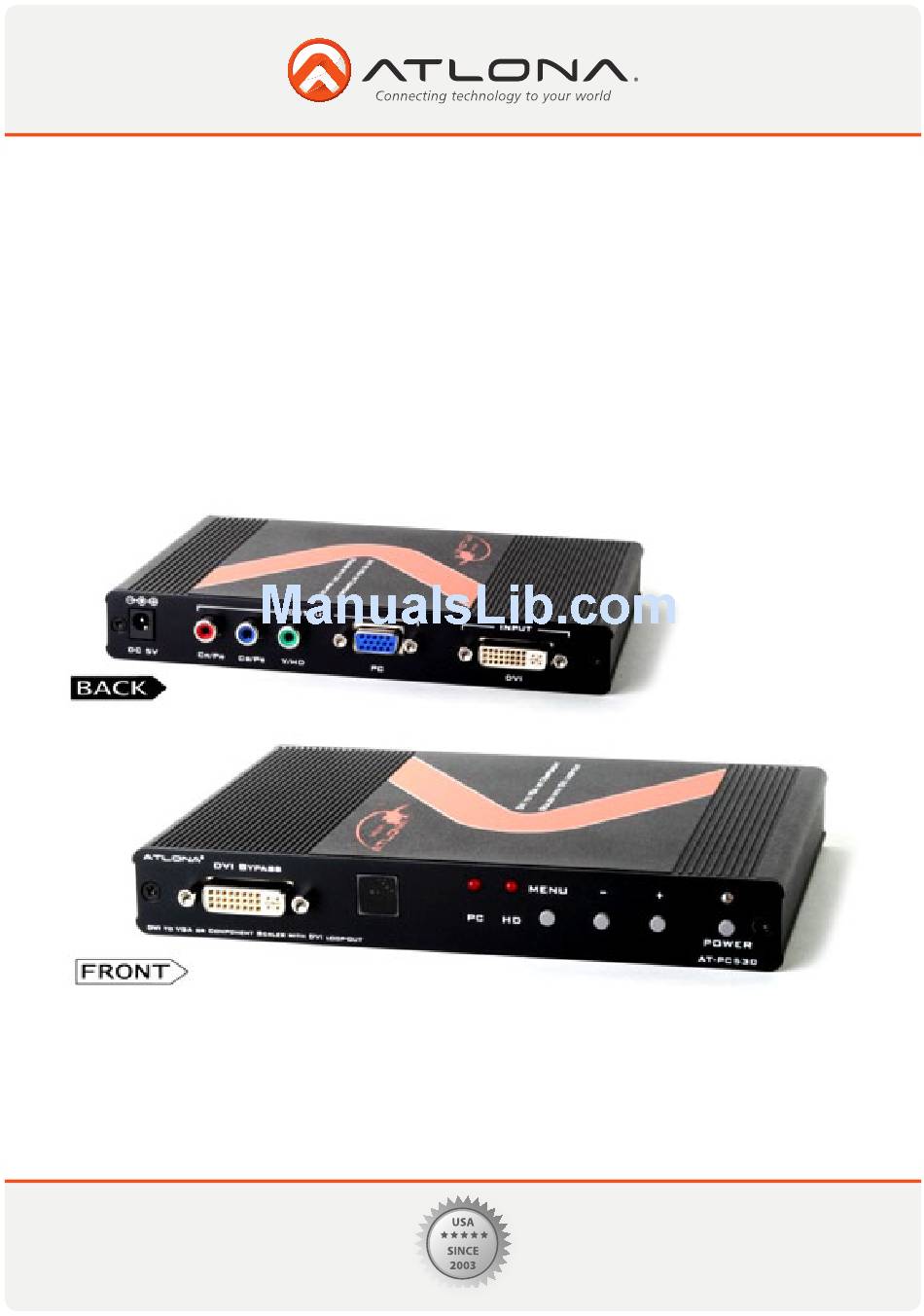

Page 1: User Manual
User Manual DVI to VGA or Component Scaler with DVI loop-out AT-PC530 Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515... -
Page 2: Table Of Contents
7. DVI-D connector Pin Assignment ..........5 8. OSD Operation ..........5 9. Connection Diagram ..........6 10. Support Resolution ..........7 11. Safety Information ..........8 12. Warranty ..........9 13. Atlona Product Registration ..........10 Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515... -
Page 3: Introduction
1080p or 1920x1200. FEATURES • The AT-PC530 is able to accept DVI resolution from 640x480 to 1920x1200 and scaler them up or down to either component video or vga at resolutions up to 1920x1200 or 1080p. • The output resolution can be selected via IR Remote control or though On Screen Display • The On Screen Display allows user to adjust brightness, contrast, color, RGB level and H-V position. -
Page 4: Specification
0 0 C ~ 40 0 C / 32 0 F ~ 104 0 F Operating Temperature -20 0 C ~ 60 0 C / -4 0 F ~ 140 0 F Storage Temperature Relative Humidity 20~90% RH (non-condensing) Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515... -
Page 5: Panel Descriptions
2. OUTPUT Cr/Pr, Cb/Pb & Y/HD: Connect a component video display to this output 3. OUTPUT PC: Connect a VGA cable to a monitor 4. INPUT DVI: Connect with DVI cable from your source Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515... -
Page 6: Dvi-D Connector Pin Assignment
NATIVE / VGA / SVGA / XGA / SXGA /UXGA / 480i / 480p/ 720p@60Hz /1080i@60Hz / 1080p@60Hz / 576i /576p / 720p@50Hz / 1080i@50Hz / 1080p@50Hz / WXGA / WSXGA /WUXGA AUDIO HDMI / EAR PHONE / OPTICAL Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515... -
Page 7: Connection Diagram
- BACKGROUND 0 ~ 100 of OSD Transparent Level - EXIT Back to 1st Tier INFORMATION SOURCE (Input Interface) INPUT (Input Resolution) OUTPUT (Output Resolution) VERSION (Firmware Version) EXIT Close OSD Menu CONNECTION DIAGRAM Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515... -
Page 8: Support Resolution
SUPPORT RESOLUTION DVI-D INPUT VGA Output Component Output PC/HD SD/HD 480I/576I (NTSC/PAL) 480P/576P 720P@(50/60) 1080I@(25/30) 1080P@(50/60) VGA@(60/72/75/85) SVGA@(56/60/72/75/85) XGA@(60/70/75/85) SXGA@(60/75/85) UXGA@60 WXGA@60(1280x800) WSXGA@60(1680x1050) WUXGA@60(1920x1200) Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515... -
Page 9: Safety Information
It may also cause damage to your AT-PC530. Opening the product will void the warranty. Do not attempt to service the unit. Disconnect the product and contact your authorized Atlona reseller or contact Atlona directly. -
Page 10: Warranty
Atlona Technologies’ decision, either return of the price paid for the product, repair, or replacement of the product that does not meet this Limited Warranty and which is returned to Atlona Technologies with a copy of the Customer’s receipt. This Limited Warranty is void if failure of the product has resulted from accident, abuse, misapplication, or natural occurrence. -
Page 11: Atlona Product Registration
ATLONA PRODUCT REGISTRATION Thank you for purchasing this Atlona product. - We hope you enjoy it and will take an extra few moments to register your new purchase. Registration creates an ownership record if your product is lost or stolen and helps ensure you’ll receive notification of performance issues and firmware updates.
