Atlona AT-PC-AVSCOMP Operation Manual

Pc to video converter
Hide thumbs Also See for AT-PC-AVSCOMP:

Advertisement

Quick Links

Download this manual See also: User Manual
AtlonA
PC to Video Converter
AT-PC-AVSCOMP

Advertisement

loading
Need help?

Need help?

Do you have a question about the AT-PC-AVSCOMP and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Atlona AT-PC-AVSCOMP

Summary of Contents for Atlona AT-PC-AVSCOMP

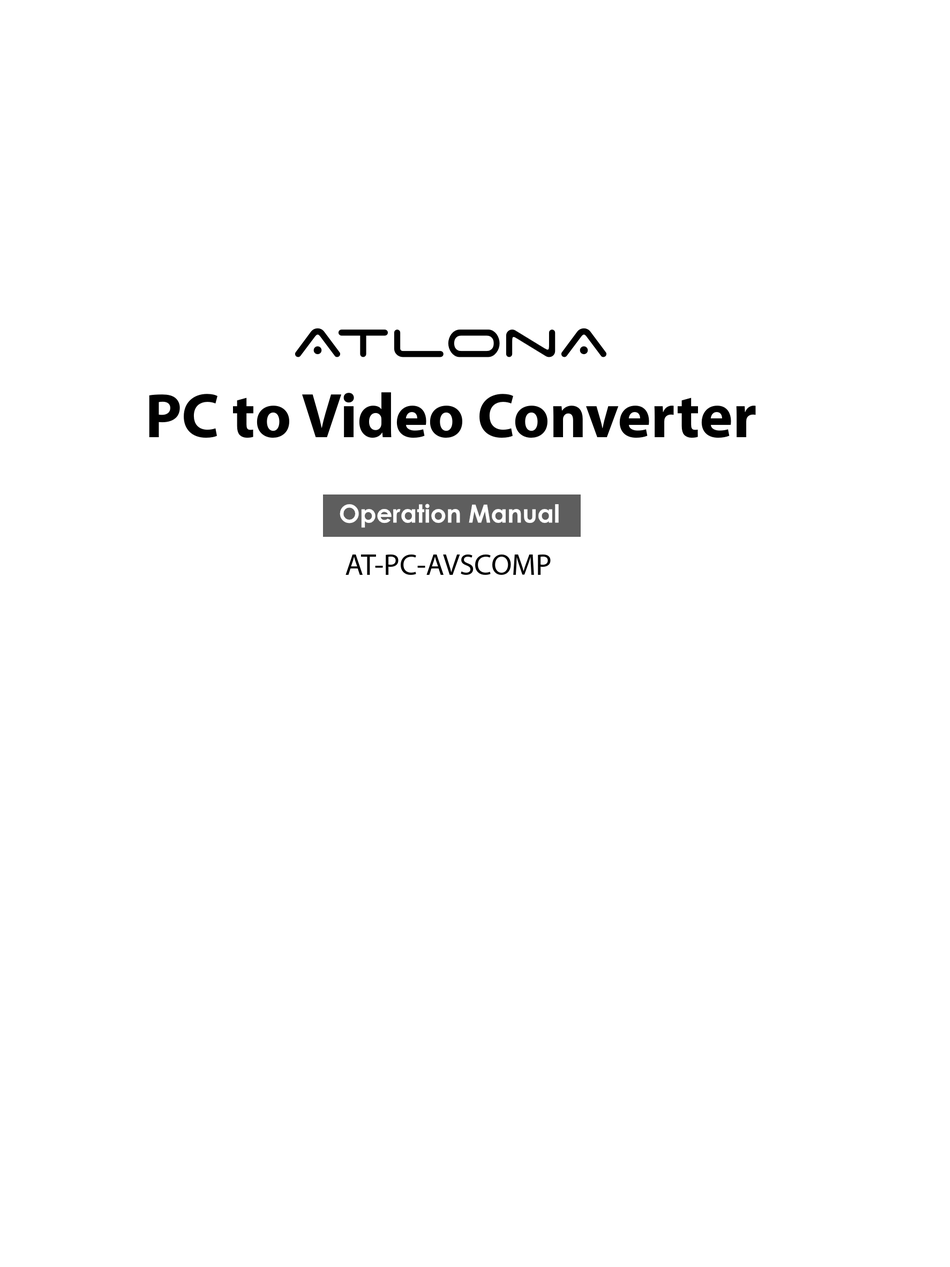

  • Page 1 AtlonA PC to Video Converter AT-PC-AVSCOMP...
  • Page 2 Applications The AT-PC-AVSCOMP PC to Video scan converter is designed to convert a variety of computer images,from 640x480 up to 1600x1200, to interlaced NTSC or PAL video. It offers a variety of output formats including composite, S-Video, YUV and RGBS. It is ideal for use in applications like video conference, home theater,business presentation,lecturing room or viewing PC image on TV.

  • Page 3: Operation Controls And Functions

    STANDBY ZOOM OVERSCAN POWER AT-PC-AVSCOMP PC to TV Converter 1. Standby/On indicator: The indicator illuminates in red when it is in Standby mode, illuminates in green when it is in ON mode. 2. Power button: Push the button to turn power ON or Standby.
  • Page 4 15. Size/EXP: When a picture is in underscan mode, press the button to do size adjustment. When a picture is in overscan mode, press the button to do expand adjustment. 16. Aspect: Press the button to switch between standard 4:3 and widescreen 16:9 aspect ratio. AtlonA ® www.atlona.com...

  • Page 5: Rs-232 Software Operation

    3. OS maybe requires to update some files. Please re-start PC. After starting PC ready, execute setup. exe again. 4. Click taskbar menu (START)->(Programs)->(AT-PC-AVSCOMP) to execute software. * If RS-232 is not ready then software enters virtual mode. After RS-232 connection being ready, start the software again and enters real mode.
  • Page 6 6. Over/Under scan: 7. Option: 8/9. Position/Pan and Size/Expand adjustments 10. Output Format: Select output format-Press repeatedly to circle through CV/SV 11. Screen freeze: 12. Video settings: 13. Close: 14. Minimize: 15. System tray: AT-PC-AVSCOMP 16. About: AtlonA ® www.atlona.com...
  • Page 7 B. Connecting the RGB out to the TV through enclosed VGA to 4 BNC cable. Select RGB as output mode: RGB/YUV G B Sync RGBS TV C. Connecting the YUV out to the TV through enclosed VGA to 4 BNC cable. Select YUV as output mode: RGB/YUV YUV TV AtlonA ® www.atlona.com...
  • Page 8 HD-15(male) to HD-15(male) VGA cable x 1, 1R to 1R video cable x 1 IR remote control x 1 Application software CD x 1 Power: DC 12V 800mA center:positive Dimensions: 204(W) x 155(D) x 50(H)mm Weight: 1kg AtlonA ® www.atlona.com...

  • Page 9: Rs-232 Remote Control Protocol

    AT-PC-AVSCOMP RS-232 Remote Control Protocol * The connection between PC-AVCOMP and remote controller with RS-232 modem cable. Pins definition of modem cable AT-PC-AVSCOMP Remote Controller Definition Definition * RS-232 transmission format: 9600 bps 8 bits AtlonA ® www.atlona.com...
  • Page 10 * Command / Response codes of RS-232 transmission: " The command / response codes are the combination of 3 bytes. the 1st, 2nd byte are text and the 3rd byte is value." Remote Controller Command Codes to AT-PC-AVSCOMP Comment 'PW'+0...
  • Page 11 Atlona AT-PC-AVSCOMP RS-232 Remote Control Protocol Converter transmits codes to Remote Controller when AT-PC-AVSCOMP operating. Code Comment power off 'PW'+0 POWER power on 'PW'+1 'NP'+0 NTSC output PAL output 'NP'+1 freeze image off FREEZE freeze image on 'FZ'+1 underscan OVERSCAN...
