Summary of Contents for Atlona AT-PC-AVSCOMP

  • Page 2 Applications The AT-PC-AVSCOMP PC to Video scan converter is designed to convert a variety of computer images,from 640x480 up to 1600x1200, to interlaced NTSC or PAL video. It offers a variety of output formats including composite, S-Video, YUV and RGBS. It is ideal for use in applications like video conference, home theater,business presentation,lecturing room or viewing PC image on TV.

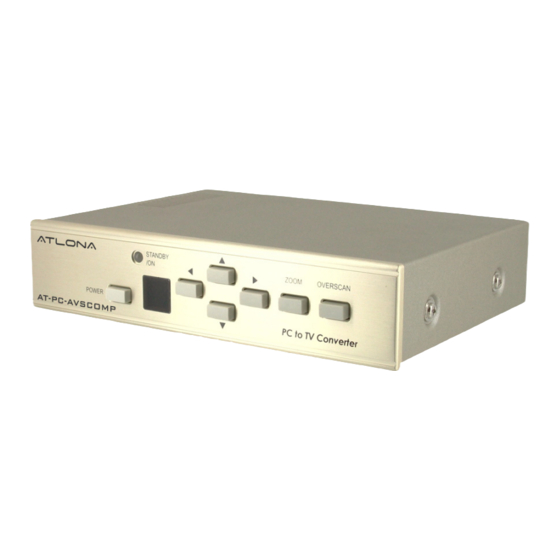

  • Page 3: Operation Controls And Functions

    ZOOM OVERSCAN POWER AT-PC-AVSCOMP PC to TV Converter 1. Standby/On indicator: The indicator illuminates in red when it is in Standby mode, illuminates in green when it is in ON mode. 2. Power button: Push the button to turn power ON or Standby.
  • Page 4 Operation Controls and Functions Remote controls and Functions 1. Power: Power ON/Off. 2. Video setting adjustments for picture,contrast, bright, color and sharpness. 3. V-Reset: Press the button to reset picture adjustment 2 to factory default vaule. OUTPUT 4. NTSC/PAL: Press the button to select NTSC or PAL as video output.

  • Page 5: Rs-232 Software Operation

    2. Mode indicator: Grey icon:Virtual mode operation. Colored icon: Real mode operation. 3. System reset: Reset AT-PC-AVSCOMP unit. 4. Zoom: Drag and move (TV-screen) to the place where you want to see. If the PC screen image is changed, then click(refresh).
  • Page 6 6. Over/Under scan: 7. Option: 8/9. Position/Pan and Size/Expand adjustments 10. Output Format: Select output format-Press repeatedly to circle through CV/SV g RGB g YUV 11. Screen freeze: 12. Video settings: 13. Close: 14. Minimize: 15. System tray: 16. About:...
  • Page 7 A. Connecting the RGB output to the scart input of the TV using enclosed VGA to SCART cable. Select RGB as output mode: RGB/YUV Configuration Scart in (3.3V) TV with Scart in B. Connecting the RGB out to the TV through enclosed VGA to 4 BNC cable. Select RGB as output mode: RGB/YUV G B Sync...

  • Page 8: Specifications

    Specifications Input terminal: HD-15 R/G/B/H/V Input resolution: Common resolution lists: VGA@60Hz up to 140Hz refresh rate SVGA@60Hz up to 120Hz refresh rate XGA@60Hz up to 85Hz refresh rate SXGA@60Hz refresh rate UXGA@60Hz refresh rate Output terminal: Composite video RCA, S-Video mini-din, PC-Out (pass through) HD-15, PC- In HD-15, RGB/YUV-Out HD-15...

  • Page 9: Pins Definition Of Modem Cable

    AT-PC-AVSCOMP RS-232 Remote Control Protocol * The connection between PC-AVCOMP and remote controller with RS-232 modem cable. Pins definition of modem cable AT-PC-AVSCOMP Remote Controller Definition Definition * RS-232 transmission format: Baud Rate : 9600 bps Data Bit : 8 bits...
  • Page 10 * Command / Response codes of RS-232 transmission: " The command / response codes are the combination of 3 bytes. the 1st, 2nd byte are text and the 3rd byte is value." Remote Controller Command Codes to AT-PC-AVSCOMP Code Comment...
  • Page 11 Atlona AT-PC-AVSCOMP RS-232 Remote Control Protocol Converter transmits codes to Remote Controller when AT-PC-AVSCOMP operating. Code Comment power off 'PW'+0 POWER power on 'PW'+1 NTSC output 'NP'+0 PAL output 'NP'+1 'FZ'+0 freeze image off FREEZE 'FZ'+1 freeze image on underscan...
