Transmitting Notes - Icom IC-440 Instruction Manual

3

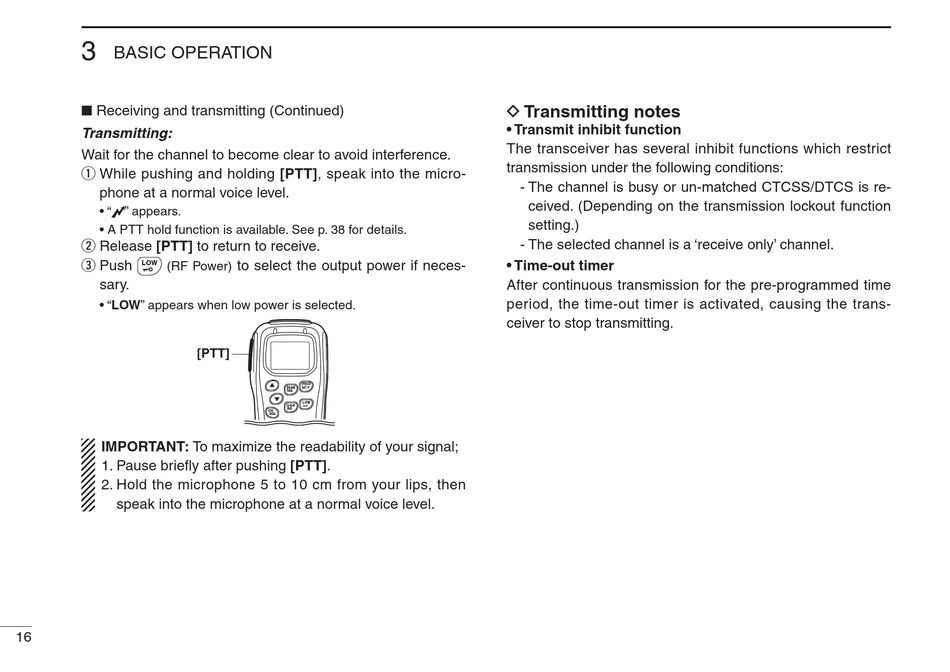

BASIC OPERATION
■ Receiving and transmitting (Continued)
Transmitting:
Wait for the channel to become clear to avoid interference.
q While pushing and holding [PTT], speak into the micro-
phone at a normal voice level.
• " " appears.
• A PTT hold function is available. See p. 38 for details.
w Release [PTT] to return to receive.
e Push
LOW
(RF Power)
sary.
• "LOW" appears when low power is selected.
IMPORTANT: To maximize the readability of your signal;
1. Pause briefl y after pushing [PTT].
2. Hold the microphone 5 to 10 cm from your lips, then
speak into the microphone at a normal voice level.
16
to select the output power if neces-
[PTT]
PRIO
SCAN SET P
TAG
LOW
O G P
RS
CH
SQL
D Transmitting notes
• Transmit inhibit function
The transceiver has several inhibit functions which restrict
transmission under the following conditions:
- The channel is busy or un-matched CTCSS/DTCS is re-
ceived. (Depending on the transmission lockout function
setting.)
- The selected channel is a 'receive only' channel.
• Time-out timer
After continuous transmission for the pre-programmed time
period, the time-out timer is activated, causing the trans-
ceiver to stop transmitting.
