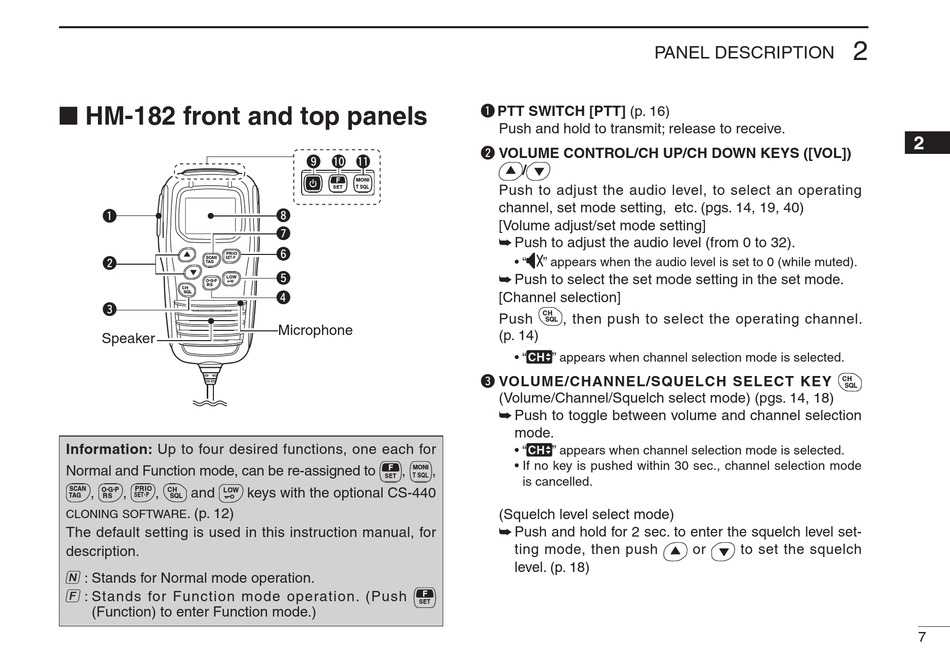

■ HM-182 front and top panels

q
PRIO
w
SCAN SET P
TAG
LOW
O G P
RS
CH
SQL
e
Speaker
Information: Up to four desired functions, one each for
Normal and Function mode, can be re-assigned to
SCAN PRIO
, O G P , , CH and LOW
SET P
TAG RS SQL
. (p. 12)
CLONING SOFTWARE
The default setting is used in this instruction manual, for
description.
N : Stands for Normal mode operation.
F : Stands for Function mode operation. (Push
(Function) to enter Function mode.)
o !0 !1
F MONI
T SQL
SET
i
u
y
t
r
Microphone
F
, MONI
SET T SQL
keys with the optional CS-440
F
SET
q PTT SWITCH [PTT] (p. 16)
Push and hold to transmit; release to receive.
w VOLUME CONTROL/CH UP/CH DOWN KEYS ([VOL])
/
Push to adjust the audio level, to select an operating
channel, set mode setting, etc. (pgs. 14, 19, 40)
[Volume adjust/set mode setting]
➥ Push to adjust the audio level (from 0 to 32).
• " " appears when the audio level is set to 0 (while muted).
➥ Push to select the set mode setting in the set mode.
[Channel selection]
CH
Push , then push to select the operating channel.
SQL
(p. 14)
• " " appears when channel selection mode is selected.
e VOLUME/CHANNEL/SQUELCH SELECT KEY
(Volume/Channel/Squelch select mode) (pgs. 14, 18)
➥ Push to toggle between volume and channel selection
mode.
• " " appears when channel selection mode is selected.
• If no key is pushed within 30 sec., channel selection mode
,
is cancelled.
(Squelch level select mode)
➥ Push and hold for 2 sec. to enter the squelch level set-
ting mode, then push
level. (p. 18)
