2-6 JUMPER SETTING FOR DEVICES ON BOARD

• The following diagrams show the locations of jumper blocks on the
mainboard.
CAUTION
• Do not remove the jumper when power is on. Always make sure the
power is off before changing any jumpers. Otherwise, mainboard could
be damaged.
• In diagrams below, all jumper pins covered with black marks stand for
closed pins.

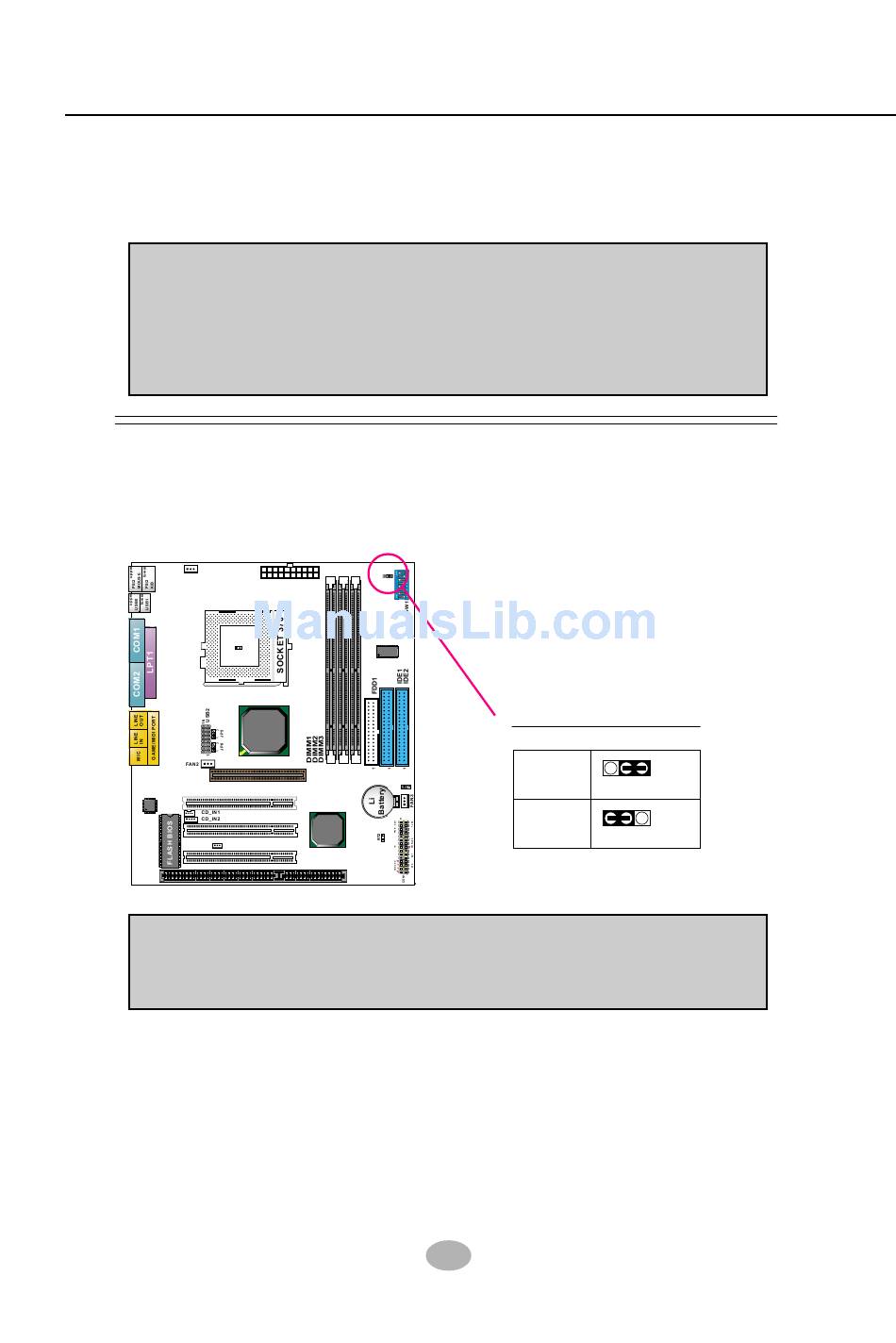

2-6.1 JP1 Power Lost Resume

FAN1
RT1
VIA
VT82C694X
AGP 4X
AC'97
Codec
1 4
1 4
JWOL1
1 3
NOTE:
This jumper allows user to use the switch of ATX power supply to
control ON/OFF switch directly instead of using the power switch on the
mainboard.
JP1
1 3
ATX POWER
Clock
Generator
JBAT1
PCI 1 1 3
PCI 2
VIA
VT82C
686A
PCI 3
ISA
26
Power Lost Resume:
Normal
(default)
1 3
JP1
Enabled
JP1
1 3
