CyberData 11233 Installation Quick Reference page 2

Verifying Operations and Settings
When you plug in the Ethernet cable or power supply:
• The round, GREEN/BLUE Status LED on the
front of the SIP Paging Adapter comes on
indicating that the power is on. Once the device
has been initialized, this LED blinks at one
second intervals.
• The square, GREEN/AMBER Link LED above
the Ethernet port indicates that the network
connection has been established. The Link LED
changes color to confirm the auto-negotiated
connection speed:
• The Link LED is GREEN at 10 Mbps.
• The Link LED is AMBER at 100 Mbps.
• The GREEN Paging LED comes on after the
device is booted and initialized. This LED blinks
when a page is in progress. You can disable
Beep on Initialization on the Device
Configuration page.
RTFM Switch
To announce the IP address: To restore the SIP Paging Adapter's factory default settings:
1. Briefly press and then quickly release the
1. Press and hold the RTFM switch while all the indicator lights turn off.
RTFM switch.
2. Continue to press the switch until after the indicator lights turn back
on, and then release the switch.
Note: The IP address announcement can be
Note: The "Restoring Defaults" announcement can be heard if a
heard if a speaker or amplified speaker is
speaker or amplified speaker is connected to the unit.
connected to the unit.
3. All SIP Paging Adapter settings are restored to the factory defaults,
and the unit reboots.
Setting Up the SIP Paging Adapter
PoE
Non PoE with 48 VDC Power Supply
Chassis Ground
Chassis ground
© 2013, CyberData Corporation, ALL RIGHTS RESERVED
Link Activity
(GREEN/AMBER LED) (GREEN LED)
Paging Status
(GREEN LED) (GREEN/BLUE LED)
RTFM Switch
To set up the SIP Paging Adapter, connect the
device to your network:
Poe
• For PoE, plug one end of an 802.3af Ethernet
cable into the SIP Paging Adapter Ethernet
port. Plug the other end of the Ethernet cable
into your network. See the figure on the left.
Non-Poe
• For Non-PoE, connect the SIP Paging Adapter
to a 48VDC power supply. See the figure on
the left.
Chassis Ground
• If required, connect the earth grounding wire to
the Chassis Ground. See the figure on the
left.
930613B Quick Reference
Connections
Page Port Output Connections
Pin Description
1 Fault Sense Input (Common)
2 Fault Sense Input (Sense)
a
3 Positive 600-Ohm Audio Output
a
4 Negative 600-Ohm Audio Output
5 Audio Ground Reference
b
6 Relay Contact - Common
b
7 Relay Contact - Normally Open
a. The 600-Ohm audio output of the
page port is also suited for interfaces
with lower input impedances.
b. 1 Amp at 30 VDC for continuous loads

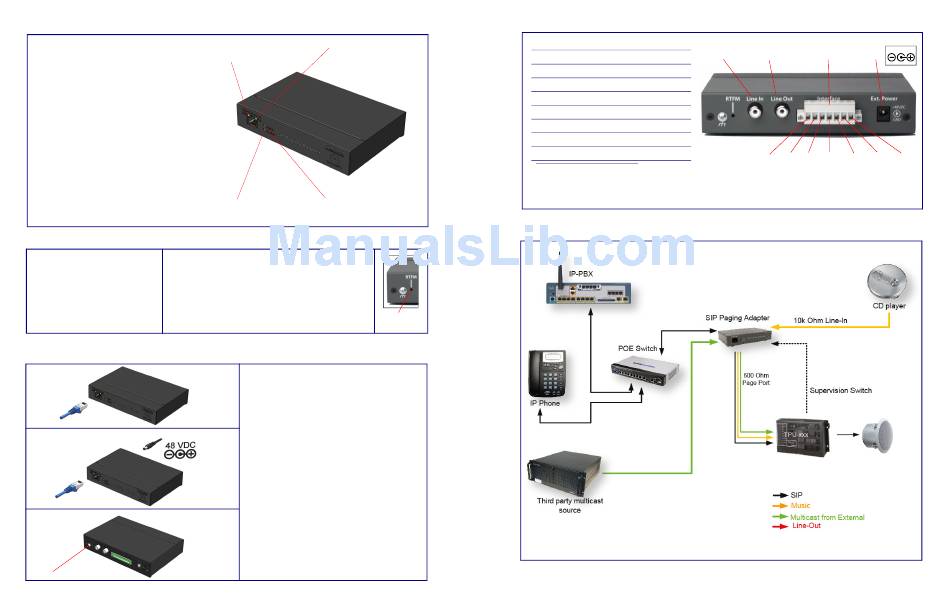

Typical Paging System Setup Using the SIP Paging Adapter
Typical SPA Configuration (600 Ohm output with Supervision switch)
Quick Reference
RCA Line In RCA Line Out Page Port Output Power
Pin 1 Pin2 Pin 3 Pin 4 Pin 5 Pin 6
930613B © 2013, CyberData Corporation, ALL RIGHTS RESERVED
48VDC
Pin 7
