Analog Devices AD9883A Specification Sheet page 11

Table V. Recommended VCO Range and Charge Pump Current Settings for Standard Display Formats
Standard Resolution
640 × 480
VGA
800 × 600
SVGA
1024 × 768
XGA
1280 × 1024
SXGA
Timing

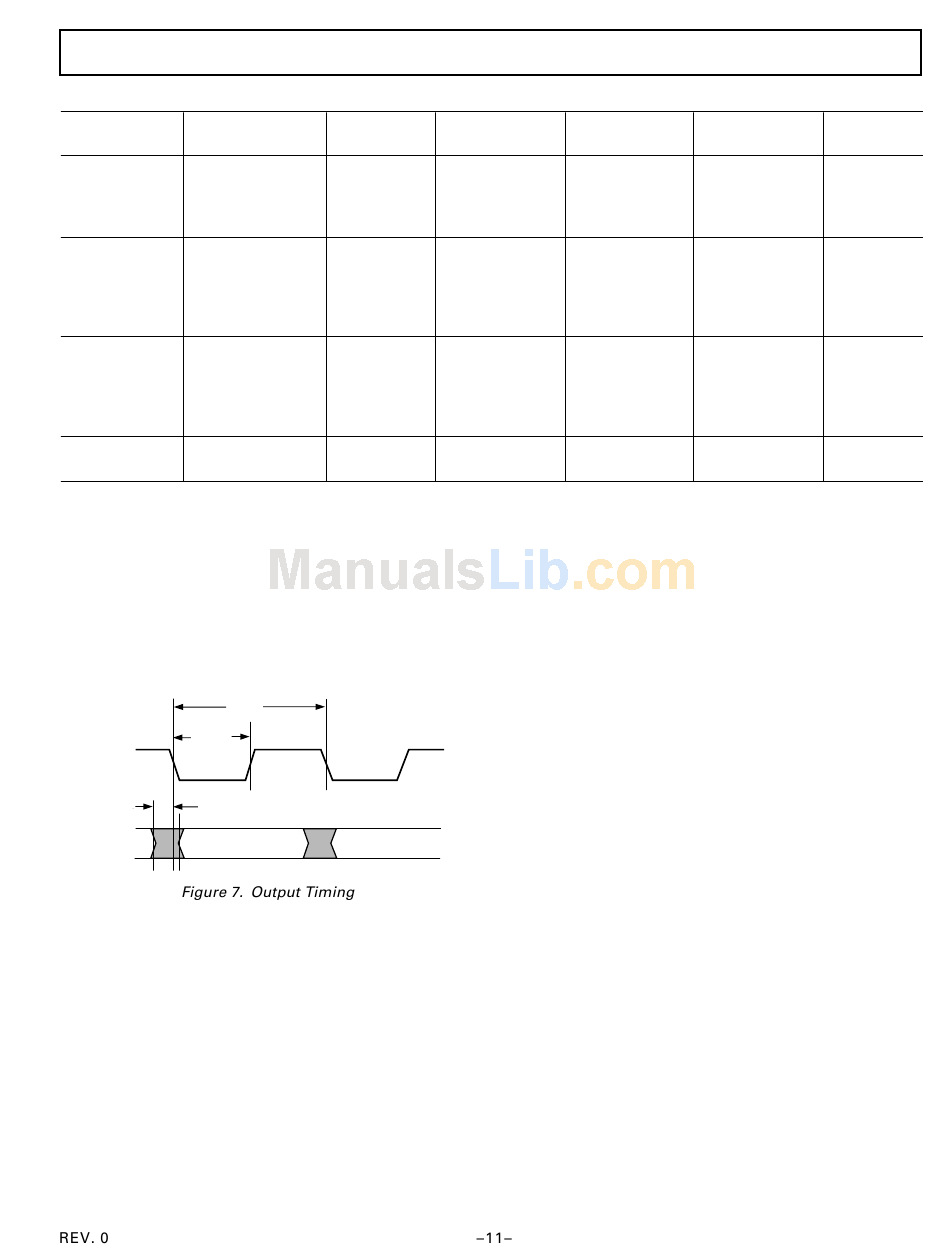

The following timing diagrams show the operation of the
AD9883A.
The Output Data Clock signal is created so that its rising edge
always occurs between data transitions, and can be used to latch
the output data externally.
There is a pipeline in the AD9883A, which must be flushed
before valid data becomes available. This means four data sets
are presented before valid data is available.
t
t
CYCLE
DATACK
t
SKEW
DATA
HSOUT
Hsync Timing
Horizontal Sync (Hsync) is processed in the AD9883A to elimi-
nate ambiguity in the timing of the leading edge with respect to
the phase-delayed pixel clock and data.
The Hsync input is used as a reference to generate the pixel
sampling clock. The sampling phase can be adjusted, with respect
to Hsync, through a full 360° in 32 steps via the Phase Adjust
register (to optimize the pixel sampling time). Display systems
use Hsync to align memory and display write cycles, so it is
important to have a stable timing relationship between Hsync
output (HSOUT) and data clock (DATACK).
Refresh
Rate
60 Hz
72 Hz
75 Hz
85 Hz
56 Hz
60 Hz
72 Hz
75 Hz
85 Hz
60 Hz
70 Hz
75 Hz
80 Hz
85 Hz
60 Hz
75 Hz
PER
Horizontal
Frequency Pixel Rate
31.5 kHz 25.175 MHz
37.7 kHz 31.500 MHz
37.5 kHz 31.500 MHz
43.3 kHz 36.000 MHz
35.1 kHz 36.000 MHz
37.9 kHz 40.000 MHz
48.1 kHz 50.000 MHz
46.9 kHz 49.500 MHz
53.7 kHz 56.250 MHz
48.4 kHz 65.000 MHz
56.5 kHz 75.000 MHz
60.0 kHz 78.750 MHz
64.0 kHz 85.500 MHz
68.3 kHz 94.500 MHz
64.0 kHz 108.000 MHz
80.0 kHz 135.000 MHz
Three things happen to Horizontal Sync in the AD9883A. First,
the polarity of Hsync input is determined and will thus have a
known output polarity. The known output polarity can be pro-
grammed either active high or active low (register 0EH, Bit 5).
Second, HSOUT is aligned with DATACK and data outputs.
Third, the duration of HSOUT (in pixel clocks) is set via regis-
ter 07H. HSOUT is the sync signal that should be used to drive
the rest of the display system.
Coast Timing
In most computer systems, the Hsync signal is provided con-
tinuously on a dedicated wire. In these systems, the COAST
input and function are unnecessary, and should not be used and
the pin should be permanently connected to the inactive state.
In some systems, however, Hsync is disturbed during the
Vertical Sync period (Vsync). In some cases, Hsync pulses
disappear. In other systems, such as those that employ Compos-
ite Sync (Csync) signals or embedded Sync-on-Green (SOG),
Hsync includes equalization pulses or other distortions during
Vsync. To avoid upsetting the clock generator during Vsync,
it is important to ignore these distortions. If the pixel clock
PLL sees extraneous pulses, it will attempt to lock to this new
frequency, and will have changed frequency by the end of the
Vsync period. It will then take a few lines of correct Hsync tim-
ing to recover at the beginning of a new frame, resulting in a
"tearing" of the image at the top of the display.
The COAST input is provided to eliminate this problem. It is
an asynchronous input that disables the PLL input and allows
the clock to free-run at its then-current frequency. The PLL can
free-run for several lines without significant frequency drift.
AD9883A
VCORNGE Current
00 101
00 110
00 110
00 110
00 110
01 100
01 100
01 100
01 101
01 110
10 100
10 100
10 100
10 100
10 110
11 101
