Summary of Contents for Modern Flames HF900CBI

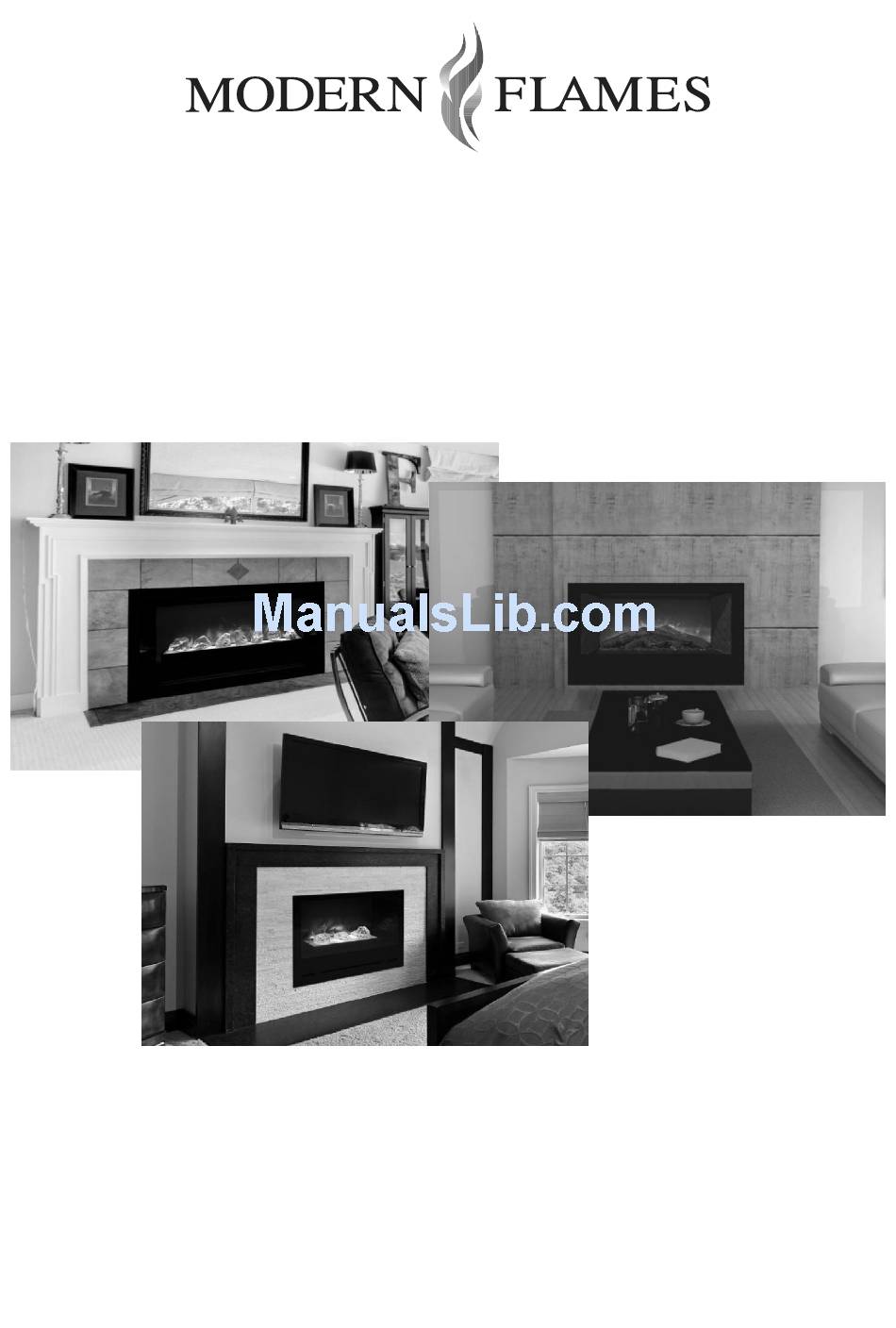

- Page 1 Home Fire CBI Electric Series HF900CBI • HF1200CBI • HF1500CBI INSTALLATION/SERVICE INSTRUCTIONS FOR USE IN UNITED STATES AND CANDA...
- Page 2 Read these instructions completely before beginning installation. Failure to follow them could cause a heater malfunction resulting in serious injury and/or property damage. WARNING: All electric heaters have hot and arcing or sparking parts inside. Do not use it in areas where gasoline, paint or flammable liquids are or are stored. This fireplace meets the construction and safety standards of H.U.D.
-
Page 3: Table Of Contents
USER INSTRUCTIONS TABLE OF CONTENTS Important Instructions ........3 Operation ........... 10 Product Dimensions ........5 Service Parts ..........11 Box Contents ..........5 Frequently Asked Questions ...... 12 Listing Approvals ......... 6 Troubleshooting ......... 13 Unpacking and Testing ........ 6 Cleaning and Maintenance Instructions .. -
Page 4: Important Instructions
USER INSTRUCTIONS IMPORTANT INSTRUCTIONS 12.To prevent possible fire, do not block air 24.Heater must not be located immediately inlets or outlets in any manner. Do not use below a socket outlet. on soft surfaces, like a bed, where 25.The appliance is not to be used by children openings may become blocked. -
Page 5: Product Dimensions
743mm (all models) Model Viewing Area Face Dimensions Firebox Dimensions HF900CBI 762mm W x 445mm H 914mm W x 743mm H 821mm W x 681mm H x 291mm D HF1200CBI 914mm W x 445mm H 1067mm W x 743mm H... -
Page 6: Listing Approvals
USER INSTRUCTIONS LISTING APPROVALS HF1500CBI HF1200CBI HF900CBI Volts/HZ AC 220V/50Hz AC 220V/50Hz AC 220V/50Hz Amps 15 Amps 15 Amps 15 Amps AC 220V/50Hz AC 220V/50Hz AC 220V/50Hz Heater 1.5kW 1.5kW 1.5kW Lamps AC 220V/50Hz 4W AC 220V/50Hz 4W AC 220V/50Hz 4W... -
Page 7: Installation
INSTALLATION INSTALLATION WARNING - RISK OF FIRE! WARNING: If the information in these in- The power cord must not be pinched or structions is not followed exactly, a fire against a sharp edge. Secure cord to or explosion may result causing property avoid tripping or snagging to reduce the damage, personal injury or death. - Page 8 5. Hang the glass face on the fire unit. Make certain that the hooks from the on the backside of the glass face are secured in all 4 slots on the fire unit. HF900CBI 838mm W x 692mm H x 305mm D HF1200CBI...
-
Page 9: Operation
OPERATION OPERATION On the bottom of the unit is a main power switch. Switch this on to begin using the fireplace. Directly below the flame, on the right hand side are 3 small LED status lights and 3 buttons. Power Heat Backlight When all indicator lights are off, pressing on... -
Page 10: Service Parts
HEATER FAN 220 V 1.5kW MFPHF HF HEATER 220 V 1.5kW MFSM120 SPINDLE MOTOR 220 V 50-60 HZ MFPHF36 LED LED LIGHT STRING HF900CBI MFPHF42 LED LED LIGHT STRING HF1200CBI MFPHF60 LED LED LIGHT STRING HF1500CBI MF PS1 POWER SWITCH... -
Page 11: Frequently Asked Questions
MAINTENANCE FREQUENTLY ASKED QUESTIONS Q. How do you program the remote control? A. The remote comes pre-programmed. No programming is necessary. Q. What distance can the remote be used from the fireplace? A. Optimal distance for the remote control is within 10 meters. Q. - Page 12 MAINTENANCE PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION A. Fireplace is not plugged in to an A. Check plug electrical outlet B. Breaker tripped or outlet has no B. Reset breaker, test outlet for power power C. Turn main power switch to the C.
-
Page 13: Cleaning And Maintenance Instructions
MAINTENANCE PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION A. Disconnect unit from power A. Wiring is loose source and inspect for loose Flame is not visible when connections unit is turned on B. Motherboard is defective B. Replace motherboard A. Disconnect unit from power A. - Page 14 MAINTENANCE NOTES...
- Page 15 MAINTENANCE NOTES...
- Page 16 © 2012 www.modernflames.com Please dispose of properly.
