SAFETY INFORMATION AND OPERATIONS MANUAL
Read these instructions completely before beginning installa-
tion. Failure to follow them could cause a heater malfunction
resulting in serious injury and/or property damage.
WARNING: All electric heaters have hot and arcing or sparking
parts inside. Do not use it in areas where gasoline, paint or
flammable liquids are or are stored.
This fireplace meets the construction and safety standards of
H.U.D. for application in manufactured homes when installed
according to these instructions.
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.

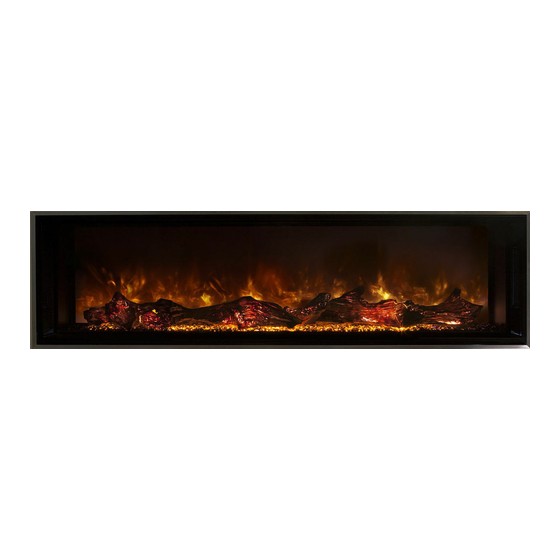

AMBIANCE LINEAR 40
AMBIANCE LINEAR 60
AMBIANCE LINEAR 100
Advertisement
Table of Contents
Related Manuals for Modern Flames AMBIANCE LINEAR 40
Summary of Contents for Modern Flames AMBIANCE LINEAR 40
- Page 1 AMBIANCE LINEAR 40 AMBIANCE LINEAR 60 AMBIANCE LINEAR 100 SAFETY INFORMATION AND OPERATIONS MANUAL Read these instructions completely before beginning installa- tion. Failure to follow them could cause a heater malfunction resulting in serious injury and/or property damage. WARNING: All electric heaters have hot and arcing or sparking parts inside.
-
Page 2: Table Of Contents
Table of Contents Important Instructions......2 Installation........6 Listing Approvals.......3 Operation.........9 Product Dimensions......4 Service Parts……………………….10 Box Contents………......5 Frequently Asked Questions……..12 Unpacking and Testing…....5 Troubleshooting……………………13 Locating Fireplace......6 Cleaning and Maintenance……….15 Important Instructions Do not install fireplace directly WARNING: Improper installation, on carpet or similar surface adjustment, alteration, service or which may restrict air circula- maintenance can cause injury or... -
Page 3: Listing Approvals
Important Instructions mechanical adjustment, or repair. block air intakes or exhaust in any 6. Do not use outdoors. manner. Do not use on soft sur- 7. This heater is not intended for faces, like a bed, where openings use in bathrooms, laundry areas and may become blocked. -
Page 4: Product Dimensions
Product Dimensions AL CLX 40 40” W x 25.5” H x 3.48” D AL CLX 60 60” W x 25.5” H x 3.48” D AL CLX 100 100” W x 25.5” H x 3.48” D... -
Page 5: Box Contents
Box Contents 1 Mounting 4 Wall Anchors Bracket 4 Small Washer 1 Fire Unit Head Screws 4 Large Washer Head Screws 1 Glass Face 1 Remote 3 L-metal Brackets Unpacking and Testing This heater is for use on 120 volts. The cord has a plug as shown at A. An adapter as shown at C is available for connecting three-blade grounding-type plugs to two-slot re- ceptacles. -
Page 6: Locating Fireplace
Locating Fireplace CAUTION: Do not locate in a moist room such as a bathroom or laundry room. CAUTION: Wear gloves safety glasses for protection during installation and mainte- nance. This electric fireplace can be installed framed in to a wall or simply hung on the wall. - Page 7 Recessed Installation: 1-1/8 inches, this area must not be 1. Prepare frame opening according to blocked by any additional trim, tile, etc. chart. Frame opening is slightly larger as this will block proper air flow. This is a than the fire unit. semi-permanent installation.
- Page 8 Wall-hung Installation: 4. Use the included L metal bracket to 1. Hang the mounting bracket with the secure the bottom of the fire unit to the included large washer head screws and wall. This is a semi-permanent installa- wall anchors. Wall anchors should be tion.
-
Page 9: Operation
Operation On the bottom of the unit is a main power switch. Switch this on to begin using the fireplace. Directly below the flame, on the right hand side are 3 small LED status lights and 3 buttons. Power Heat Backlight When all indicator lights are off, pressing on any button will only show... -
Page 12: Frequently Asked Questions
Frequently Asked Questions Q. How do you program the remote control? A. The remote comes pre-programmed. No programming is necessary. Q. What distance can the remote be used from the fireplace? A. Optimal distance for the remote control is within 10 yards. Q. -
Page 13: Troubleshooting
Troubleshooting PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION Nothing comes on A. Fireplace is not plugged in A. Check plug (touch screen, etc.) to an electrical outlet B. Breaker tripped or outlet B. Reset breaker, test outlet has no power for power C. - Page 14 PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION Fireplace turns off A. Fireplace has overheated A. Turn off major power switch and will not turn back and safety disc has snapped and waiting 5 minutes to turn it or circuit breaker has tripped back on or reset circuit breaker Can operate fireplace A.
-
Page 15: Cleaning And Maintenance
Cleaning and Maintenance There is very little maintenance involved with your electric fireplace. Please fol- low the few points below: On a semi-annual basis unplug the machine from it’s power source, remove the glass face of the fireplace and dust the fire unit with a dry cloth. Be care- ful not to brush any wires that may be exposed as you do this. - Page 16 © 2011 www.modernflames.com Please dispose of properly.
