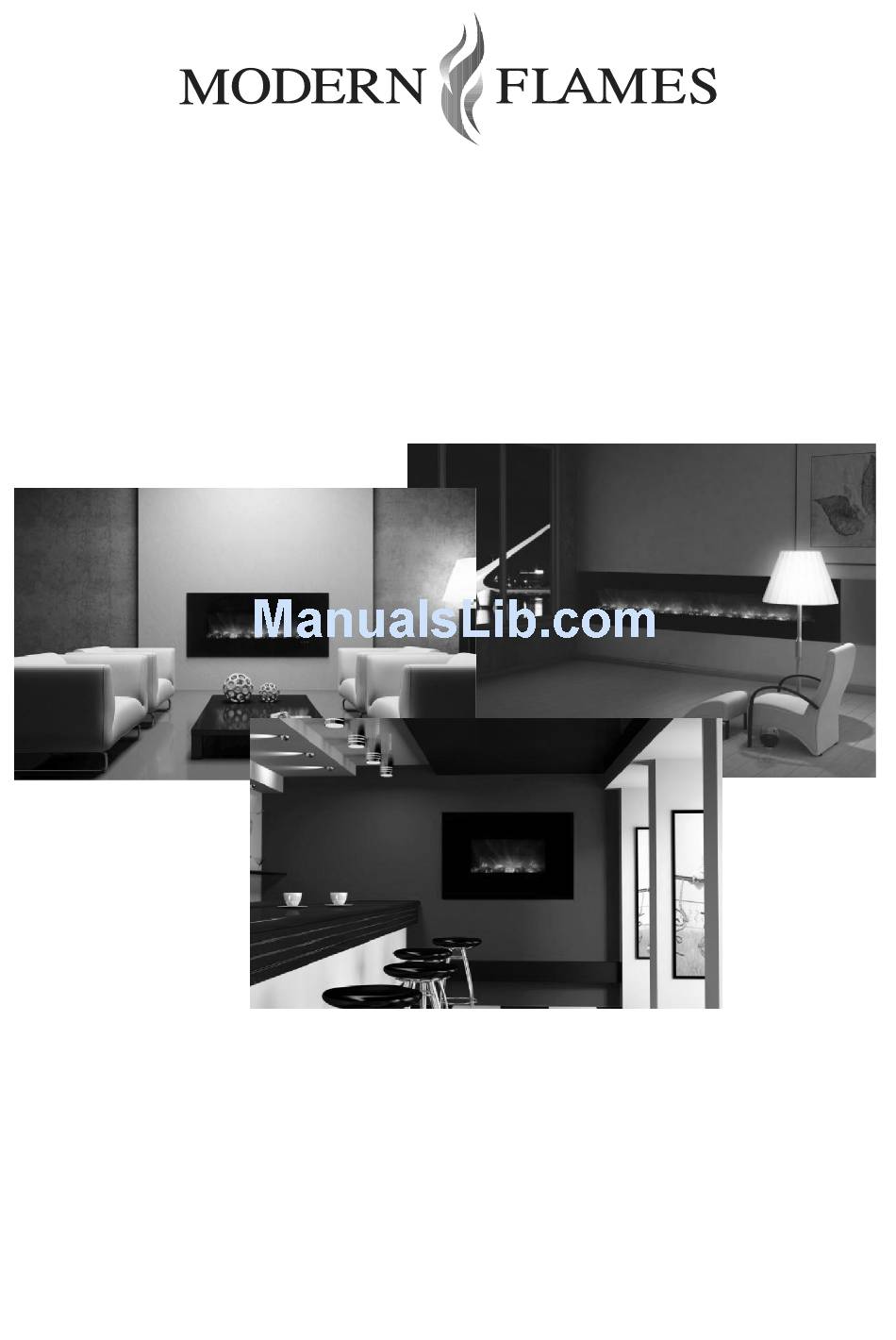

- Page 1 Ambiance CLX Electric Series AL40CLX • AL60CLX • AL80CLX • AL100CLX • AL144CLX INSTALLATION/SERVICE INSTRUCTIONS FOR USE IN UNITED STATES AND CANADA...
- Page 2 Read these instructions completely before beginning installation. Failure to follow them could cause a heater malfunction resulting in serious injury and/or property damage. WARNING: All electric heaters have hot and arcing or sparking parts inside. Do not use it in areas where gasoline, paint or flammable liquids are or are stored. This fireplace meets the construction and safety standards of H.U.D.
-
Page 3: Table Of Contents
USER INSTRUCTIONS TABLE OF CONTENTS Important Instructions ........3 Operation ........... 10 Power Data ..........4 Service Parts ..........11 Product Dimensions ........5 Frequently Asked Questions ...... 12 Box Contents ..........5 Troubleshooting ......... 13 Unpacking and Testing ........ 6 Cleaning and Maintenance Instructions .. -
Page 4: Power Data
USER INSTRUCTIONS IMPORTANT INSTRUCTIONS the heater off and inspect for any objects on locations. Never locate heater where it may or adjacent to the heater that may have fall into a bathtub or other water container. blocked the airflow or otherwise caused high 14. -
Page 5: Product Dimensions
25 1/2” (all models) Model Viewing Area Face Dimensions Firebox Dimensions AL40CLX 22” W x 10” H 40” W x 25 1/2” H 24 1/4” W x 19 1/4” H x 5 1/2” D AL60CLX 42” W x 10” H 60”... -
Page 6: Unpacking And Testing
USER INSTRUCTIONS UNPACKING AND TESTING This heater is for use on 120 volts. The cord has a plug as shown at A. An adapter as shown at C is available for connecting three- blade grounding-type plugs to two-slot recep- tacles. The green grounding lug extending from the adapter must be connected to a per- manent ground such as a properly grounded outlet box. -
Page 7: Installation
INSTALLATION INSTALLATION WARNING - RISK OF FIRE! WARNING: If the information in these in- The power cord must not be pinched or structions is not followed exactly, a fire against a sharp edge. Secure cord to or explosion may result causing property avoid tripping or snagging to reduce the damage, personal injury or death. - Page 8 Fascia will cover the plug and outlet. Power cord 4. Hang the face on the fire unit. Make certain AL40CLX 25” W x 19 3/4” H x 4” D that the hooks from the on the backside of the AL60CLX 45”...
- Page 9 Use the chart below to see proper distance between the screws used to hold the mount- ing bracket. Power cord AL40CLX 17 3/4 inches AL60CLX 29 3/4 inches AL80CLX 49 3/4 inches 5. Hang the glass face on the fire unit. Make...
-
Page 10: Operation
OPERATION OPERATION On the bottom of the unit is a main power switch. Switch this on to begin using the fireplace. Directly below the flame, on the right hand side are 3 small LED status lights and 3 buttons. Power Heat Backlight When all indicator lights are off, pressing on... -
Page 11: Service Parts
MAINTENANCE AL CLX SERVICE PARTS ITEM PHOTO COMMENTS PRINTED CIRCUIT BOARD CONTROLS LOW MFPCB1 VOLTAGE AND HIGH VOLTAGE FUNCTIONS MFTC1 LCD TOUCH CONTROL MFRR1 REMOTE CONTROL IR RECEIVER MF12VT1 TRANSFORMER MFHF12015 HEATER FAN 120 V 1500 WATTS MFPHF AL HEATER 120 V 1500 WATTS MFSM120 SPINDLE MOTOR 120 V 50-60 HZ MFP40 LED... -
Page 12: Frequently Asked Questions
MAINTENANCE AL40WMB WALL MOUNT BRACKET AL40 AL60WMB WALL MOUNT BRACKET AL60 AL80WMB WALL MOUNT BRACKET AL80 AL100WMB WALL MOUNT BRACKET AL100 AL144WMB WALL MOUNT BRACKET AL144 ALGLS40 GLASS FACE AL40 ALGLS60 GLASS FACE AL60 ALGLS80 GLASS FACE AL80 ALGLS100 GLASS FACE AL100 ALGLS144 GLASS FACE AL144 FREQUENTLY ASKED QUESTIONS... -
Page 13: Troubleshooting
MAINTENANCE TROUBLESHOOTING PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION A. Fireplace is not plugged in to an A. Check plug electrical outlet B. Breaker tripped or outlet has no B. Reset breaker, test outlet for power power C. Turn main power switch to the C. -
Page 14: Cleaning And Maintenance Instructions
MAINTENANCE PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION A. Disconnect unit from power A. Wiring is loose source and inspect for loose Flame is not visible when connections unit is turned on B. Motherboard is defective B. Replace motherboard A. Disconnect unit from power A. -
Page 15: Wiring Diagram
MAINTENANCE WIRING DIAGRAM NOTES... - Page 16 © 2012 www.modernflames.com Please dispose of properly.
