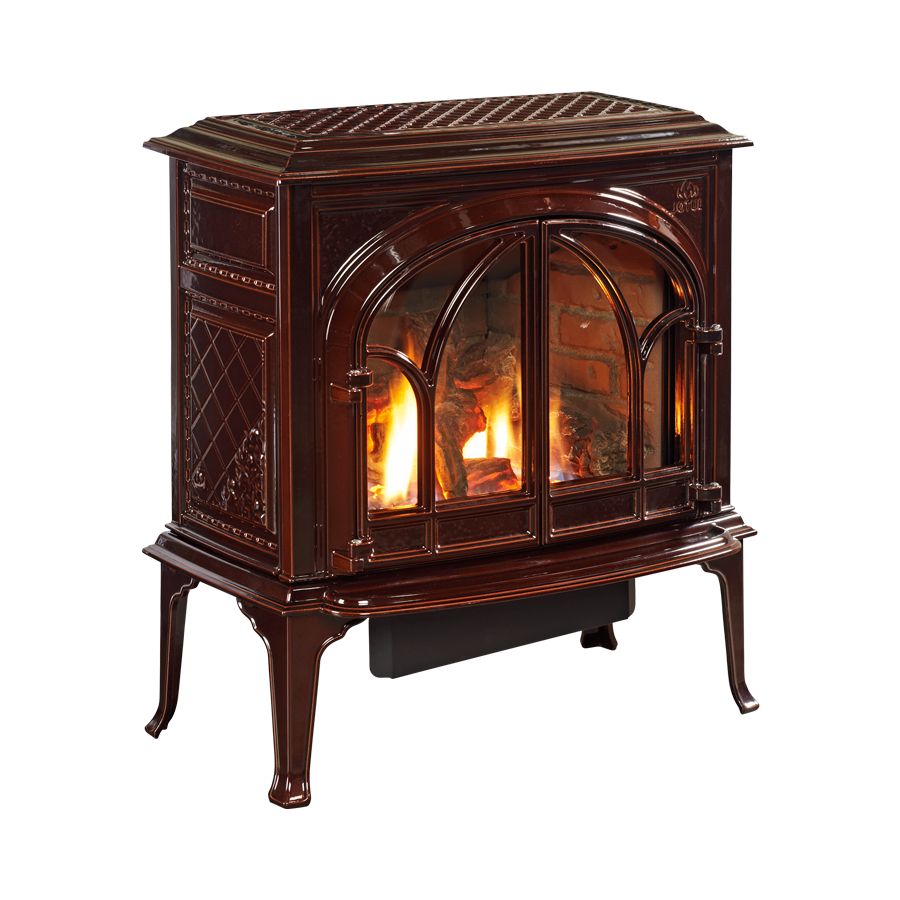

Jøtul GF 400 DV Sebago Installation And Operation Instructions Manual

Direct vent gas stove
Hide thumbs Also See for GF 400 DV Sebago:
Table of Contents

Advertisement

Quick Links

WARNING: If the information in
these instructions is not followed
exactly, a fire or explosion may
result causing property damage,
personal injury or death.
– Do not store or use gasoline or
other flammable vapors and liquids
in the vicinity of this or any other
appliance.
– WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical
switch; do not use any phone in
your building.
• Immediately call you gas supplier
from a neighbor's phone. Follow the
gas supplier's instruction.
• If you cannot reach your gas
supplier, call the fire department.
– Installation and service must be
performed by a qualfied installer,
service agency or the gas supplier.
– A carbon monoxide (CO) detector
shall be installed in the same room
as the appliance in the Common-
wealth of Massachusetts.
Installation and

Operation Instructions

AVERTISSEMENT: Assurez-vous de
bien suivreles instructions données
dans cette notice pour réduire
auninimum le risque d'incendie ou
d'explosion ou pour éviter tout
dommage matériel, toute blessure ou
la mort.
– Ne pas entreposer ni utiliser d'essence
ni d'autres vapeurs ou liquides
inflammables dans le voisinage de cet
appareil ou de tout autre appareil.
– QUE FAIRE SI VOUS SENTEZ UNE ODEUR
DE GAZ:
• Ne pas tenter d'allumer l'appareil.
• Ne touchez à aucum interrupteur. Ne
pas vous servir des téléphones se
trouvant dans le bâtiment où vous
trouvez.
• Appelez immédiatement votre
fournisseur de gaz depuis un voisin.
Suivez les instructions du fournisseur.
• Si vou ne pouvez rejoindre le
fournisseur de gaz, appelez le service
des incendies.
– L'installatione l'entretien doivent être
assurés par un installateur ou un ser-
vice d'entretien qualifié ou par le
fournisseur de gaz.
1
