Jøtul GF 400 CF Installation And Operation Instructions Manual

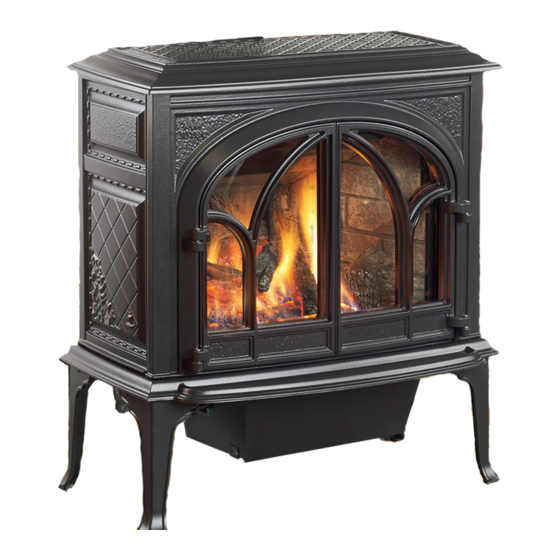

Conventional flue gas stove
Hide thumbs
Table of Contents

Advertisement

Quick Links

Installation and

Operation Instructions

WARNING: If the information in
these instructions is not followed
exactly, a fire or explosion may
result causing property damage,
personal injury or death.
– Do not store or use gasoline or
other flammable vapors and
liquids in the vicinity of this or any
other appliance.
– WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical
switch; do not use any phone in
your building.
• Immediately call your gas sup
plier from a neighbor's phone.
Follow the gas supplier's
instruction.
• If you cannot reach your gas
supplier, call the fire department.
– Installation and service must be
performed by a qualified installer,
service agency or the gas supplier.


Advertisement

Table of Contents
loading

Related Manuals for Jøtul GF 400 CF

Summary of Contents for Jøtul GF 400 CF

  • Page 1: Operation Instructions

    Installation and Operation Instructions WARNING: If the information in these instructions is not followed exactly, a fire or explosion may result causing property damage, personal injury or death. – Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
  • Page 2 Jøtul appliance. Save this user manual and Annual service - year 9 Sign.: make sure it is available for service personnel. Company: Date: Service details: Model Name: Jøtul GF 400 CF Serial No.: Annual service - year 0 Sign.: Purchase Date: Company: Date:...

  • Page 3: Table Of Contents

    Table of Contents THIS OWNER’S MANUAL PROVIDES INFORMATION TO ENSURE SAFE INSTALLATION AND EFFICIENT, DEPENDABLE OPERATION OF YOUR STOVE. PLEASE READ THESE INSTRUCTIONS IN THEIR ENTIRETY AND MAKE . Technical Information ......4 THEM AVAILABLE TO ANYONE USING OR SERVICING THIS GAS STOVE. .

  • Page 4: Technical Information

    Jøtul GF 400 CF 336 mm Technical Information 4 mm Material: Cast iron/steel 330 mm Finish: Enamel or Matte Black paint Flue outlet: Top or Rear Vent system: BV-standard system Weight: Approx. 86 kg (product) 673 mm PIN: 0063BS5908 Figure 1. Top View dimensions.

  • Page 5: General Information

    Jøtul .This is only to be installed by qualified should be called for service. personnel. This product, the Jøtul GF 400 CF, may only be used  It is permitted to install the appliance against a wall ...

  • Page 6: Installer Information

    ��������������������������� ����������������������� ������������������������������� Fixing The GF 400 CF is designed as a freestanding appliance and as such does not require additional fixing. Requirements for Floor Plate The appliance may stand on a wooden floor. A floor plate of non-combustible material is required if the appliance is to be placed on carpet, vinyl, linoleum or other combustible material.
  • Page 7 ��������������� ����������� 600 mm ���������������� ���������������� � � ������� ����� ����������� ������� ����� Figure 7. Clearance to a combustible shelf. Figure 8. Vent height requirements. Flue System Installation Closure Plate Installation Flue outlet (spigot) dimensions: It is permissible to install this appliance using a closure Internally = 8 mm plate installation similar to traditional outset gas fires.
  • Page 8 Minimum Clearances from Combustible All brick flues or any flue previously used with Material to the Vent System solid fuel or gas appliances must be left with the appropriate debris collection volume below the flue All pipe components must be installed according to ap- proval and the instructions of the manufacturer.
  • Page 9 Brick Kit Note: Install the optional Antique Brick Kit 55375 before installing the log set. See instructions supplied with that kit. The GF 400 CF log set must be installed before operating the burner. The log set includes four log pieces, packaged inside the firebox, and a quantity of ceramic embers.
  • Page 10 Gas Installation Testing Gas Pressure Gas installation must only be performed by qualified personnel. It is important to adhere to national and local Correct gas pressure is important for the safe use of gas in regulations that apply. In the UK these include BS5440 Pt the appliance.
  • Page 11 �� Figure 19. ������ ���� The thermo- ���� ����� couple and ����� ���� ���� thermopile should be fully See Air Shutter detail below. engulfed by the pilot flames. Adjusting the Burner Orifice Holder Burner adjustments must only be performed by qualified personnel.

  • Page 12: User Information

    User Information General Operating Instructions Assembly, installation, maintenance and gas conversion Lighting (if required) must be performed by a qualified person in accordance with the instructions for assembly, Installa- Note! Odors when using the stove: tion and use enclosed with the product. The installation When used for the first time, the appliance may emit may only be operated after it has been inspected by a an irritating gas that may smell a little.

  • Page 13: External Maintenance

    � � � � � � Figure 23. Valve Controls. Figure 24. Burner Switch location. Adjusting the Heat Setting 4. Push in the gas control knob (B) as far as possible and hold it in. Simultaneously, push in the ignition knob (A) Heat and flame size can be adjusted by turning the regu- until the spark ignites the pilot flame located to the lator knob (C) marked “HI, LOW”, which is located next to...

  • Page 14: Troubleshooting

    Troubleshooting � � � When No Spark is Generated at the Pilot Head It is uncommon for the Piezo spark ignitor (fig 5-A) to fail, unless it has mechanical damage. If the spark is not conducted forward, it could be the result of a break in the �...
  • Page 15 When There is No Gas Flow Thermocouple (Fig. 26) and Thermopile To The Pilot Head (Fig. 27) This is the trouble-shooting procedure for the gas supply: Check if all gas connections are sealed by using strong A thermocouple is in principle a thermal generator and soapy water (avoid synthetic soaps).
  • Page 16 Make sure the flame is centred at the thermocouple. Make sure the thermocouple is enveloped by the flame up to at least 3 mm from the tip (see fig.0). Check the � � voltage generated by the thermocouple. Connect the multimeter (fig.6-E) with plus to the ball point (D) at the end of the copper wire.
  • Page 17 Problems With the Flame Pattern Tall, narrow, yellow flames Burner Orifice These flames can soot the vent system and may be the result of insufficient oxygen supply. Check for correct air volume by measuring the opening (fig.) at the air shut- ter.
  • Page 19 Jøtul GF 400 CF Parts List Blue Black Ivory Brown Blue Cast Iron Parts Matte Black Enamel Enamel Majolica Majolica Enamel Enamel Left Side Plate 03989 03987 03989 039847 039848 30. Base Plate 039639 039637 039639 0396347 0396348 Legs, (4)
  • Page 20 This appliance must be installed in conformance with local and national building regulations. Before beginning the installation, it is important that the these instructions be carefully read and understood. Jøtul maintains a policy of continual product development. Consequently, products may differ in speci- fication, color or type of accessories from those illustrated or described in various publications.
