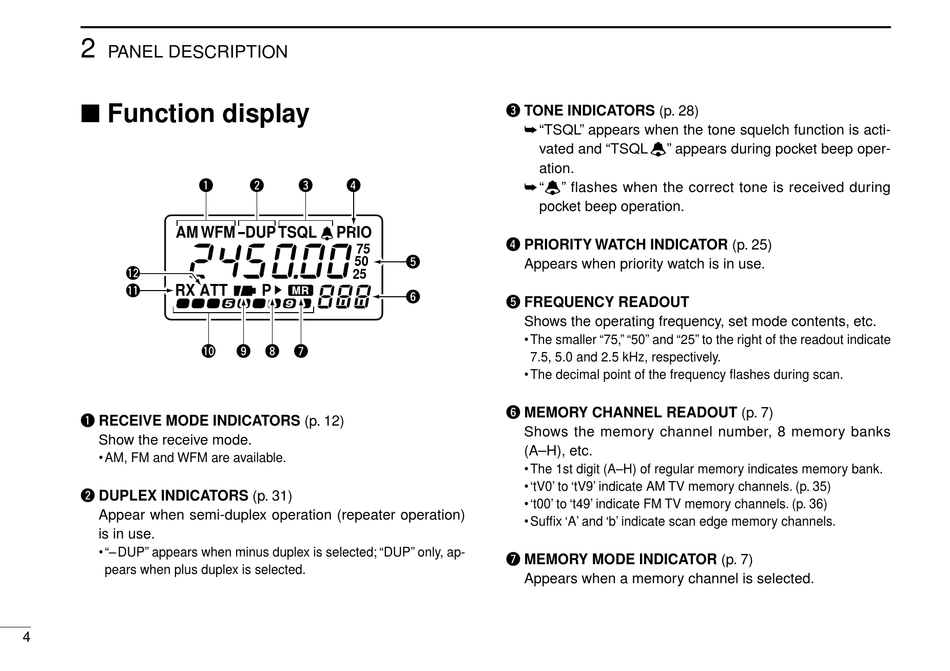

PANEL DESCRIPTION

Function display

q
AM FM DUP W
!2
!1
RX ATT
!0
q RECEIVE MODE INDICATORS (p. 12)
Show the receive mode.
• AM, FM and WFM are available.
w DUPLEX INDICATORS (p. 31)
Appear when semi-duplex operation (repeater operation)
is in use.
• "– DUP" appears when minus duplex is selected; "DUP" only, ap-
pears when plus duplex is selected.
4
w e r
TSQL PRIO
t
P
y
o i u
e TONE INDICATORS (p. 28)
"TSQL" appears when the tone squelch function is acti-
vated and "TSQL ë" appears during pocket beep oper-
ation.
"ë" flashes when the correct tone is received during
pocket beep operation.
r PRIORITY WATCH INDICATOR (p. 25)
Appears when priority watch is in use.
t FREQUENCY READOUT
Shows the operating frequency, set mode contents, etc.
• The smaller "75," "50" and "25" to the right of the readout indicate
7.5, 5.0 and 2.5 kHz, respectively.
• The decimal point of the frequency flashes during scan.
y MEMORY CHANNEL READOUT (p. 7)
Shows the memory channel number, 8 memory banks
(A–H), etc.
• The 1st digit (A–H) of regular memory indicates memory bank.
• 'tV0' to 'tV9' indicate AM TV memory channels. (p. 35)
• 't00' to 't49' indicate FM TV memory channels. (p. 36)
• Suffix 'A' and 'b' indicate scan edge memory channels.
u MEMORY MODE INDICATOR (p. 7)
Appears when a memory channel is selected.
