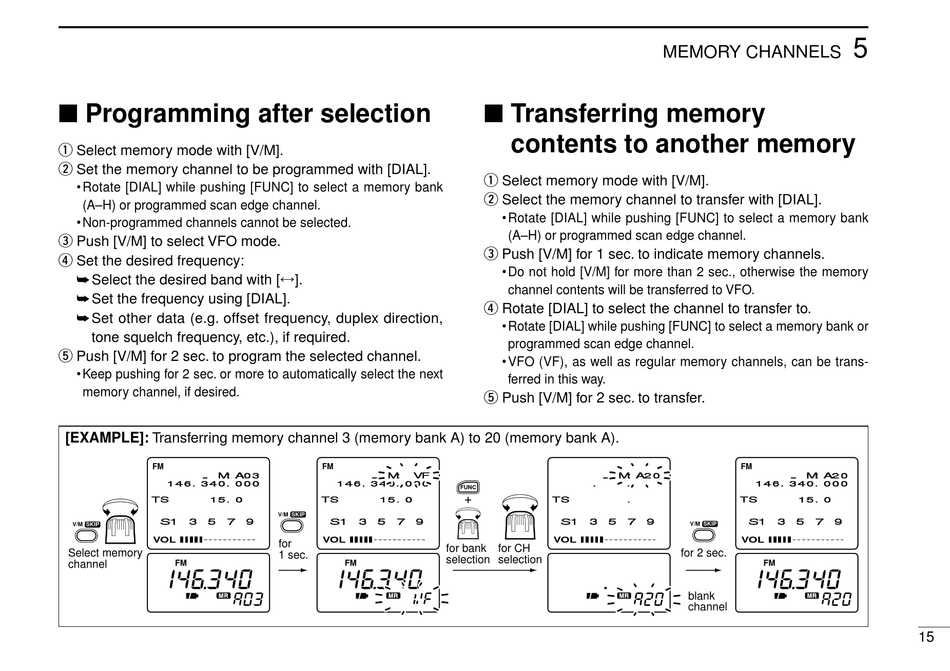

Programming after selection

q Select memory mode with [V/M].
w Set the memory channel to be programmed with [DIAL].
• Rotate [DIAL] while pushing [FUNC] to select a memory bank
(A–H) or programmed scan edge channel.
• Non-programmed channels cannot be selected.
e Push [V/M] to select VFO mode.
r Set the desired frequency:
Select the desired band with [↔].
Set the frequency using [DIAL].
Set other data (e.g. offset frequency, duplex direction,
tone squelch frequency, etc.), if required.
t Push [V/M] for 2 sec. to program the selected channel.
• Keep pushing for 2 sec. or more to automatically select the next
memory channel, if desired.
[EXAMPLE]: Transferring memory channel 3 (memory bank A) to 20 (memory bank A).
FM
M:A03
146.340.000
TS 15.0
S1 3 5 7
V/M SKIP
VOL
Select memory
channel FM
FM
M: VF
146.340.000
TS 15.0
V/M SKIP
9 S1 3 5 7 9
VOL
for
1 sec.
FM
Transferring memory
contents to another memory
q Select memory mode with [V/M].
w Select the memory channel to transfer with [DIAL].
• Rotate [DIAL] while pushing [FUNC] to select a memory bank
(A–H) or programmed scan edge channel.
e Push [V/M] for 1 sec. to indicate memory channels.
• Do not hold [V/M] for more than 2 sec., otherwise the memory
channel contents will be transferred to VFO.
r Rotate [DIAL] to select the channel to transfer to.
• Rotate [DIAL] while pushing [FUNC] to select a memory bank or
programmed scan edge channel.
• VFO (VF), as well as regular memory channels, can be trans-
ferred in this way.
t Push [V/M] for 2 sec. to transfer.
M:A20
.
FUNC
+ TS
S1 3 5
VOL
for bank for CH
selection selection
MEMORY CHANNELS
FM
. 146.340.000
. TS 15.0
7 9 S1 3 5
V/M SKIP
VOL
for 2 sec.
FM
blank
channel
5
M:A20
7 9
15
