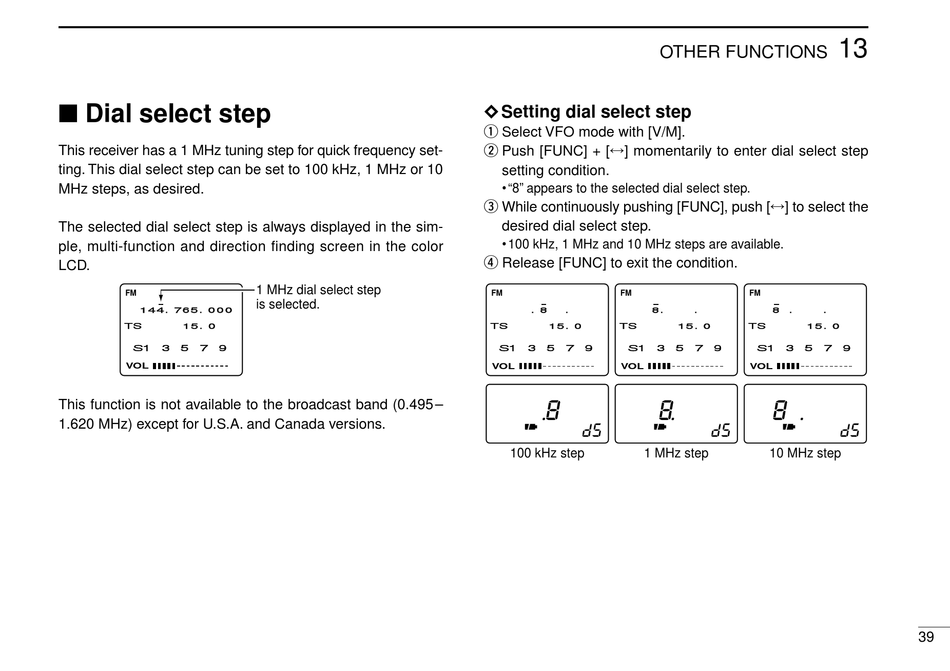

Dial select step

This receiver has a 1 MHz tuning step for quick frequency set-
ting. This dial select step can be set to 100 kHz, 1 MHz or 10
MHz steps, as desired.
The selected dial select step is always displayed in the sim-
ple, multi-function and direction finding screen in the color
LCD.
FM
144.765.000
TS 15.0
S1 3 5 7 9
VOL
This function is not available to the broadcast band (0.495 –
1.620 MHz) except for U.S.A. and Canada versions.
1 MHz dial select step
is selected.
OTHER FUNCTIONS
◊ Setting dial select step
q Select VFO mode with [V/M].
w Push [FUNC] + [↔] momentarily to enter dial select step
setting condition.
• "8" appears to the selected dial select step.
e While continuously pushing [FUNC], push [↔] to select the
desired dial select step.
• 100 kHz, 1 MHz and 10 MHz steps are available.
r Release [FUNC] to exit the condition.
FM FM
.8 . 8.
TS 15.0 TS
S1 3 5 7 9 S1 3
VOL VOL
100 kHz step 1 MHz step
13
FM
. 8 . .
15.0 TS 15.0
5 7 9 S1 3 5 7 9
VOL
10 MHz step
