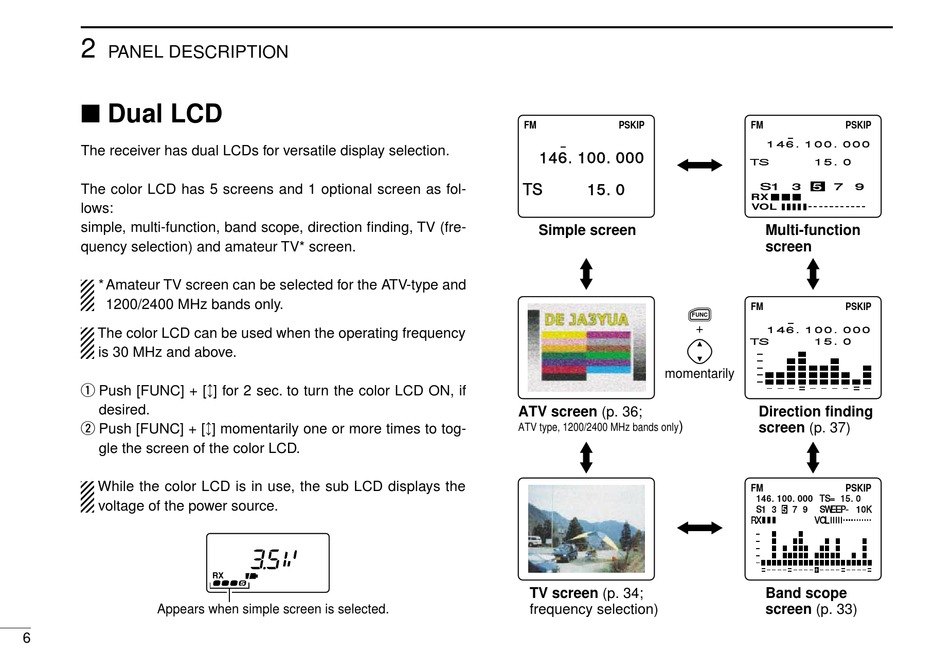

PANEL DESCRIPTION

Dual LCD

The receiver has dual LCDs for versatile display selection.
The color LCD has 5 screens and 1 optional screen as fol-
lows:
simple, multi-function, band scope, direction finding, TV (fre-
quency selection) and amateur TV* screen.
* Amateur TV screen can be selected for the ATV-type and
1200/2400 MHz bands only.
The color LCD can be used when the operating frequency
is 30 MHz and above.
q Push [FUNC] + [↕] for 2 sec. to turn the color LCD ON, if
desired.
w Push [FUNC] + [↕] momentarily one or more times to tog-
gle the screen of the color LCD.
While the color LCD is in use, the sub LCD displays the
voltage of the power source.
Appears when simple screen is selected.
6
RX
FM PSKIP
146.100.000
TS 15.0
Simple screen
FUNC
+
momentarily
ATV screen (p. 36;
)
ATV type, 1200/2400 MHz bands only
TV screen (p. 34;
frequency selection)
FM PSKIP
146.100.000
TS 15.0
S1 3 5 7 9
RX
VOL
Multi-function
screen
FM PSKIP
146.100.000
TS 15.0
Direction finding
screen (p. 37)
FM PSKIP
146.100.000 TS= 15.0
S1 3 5 7 9 SWEEP- 10K
RX VOL
Band scope
screen (p. 33)
