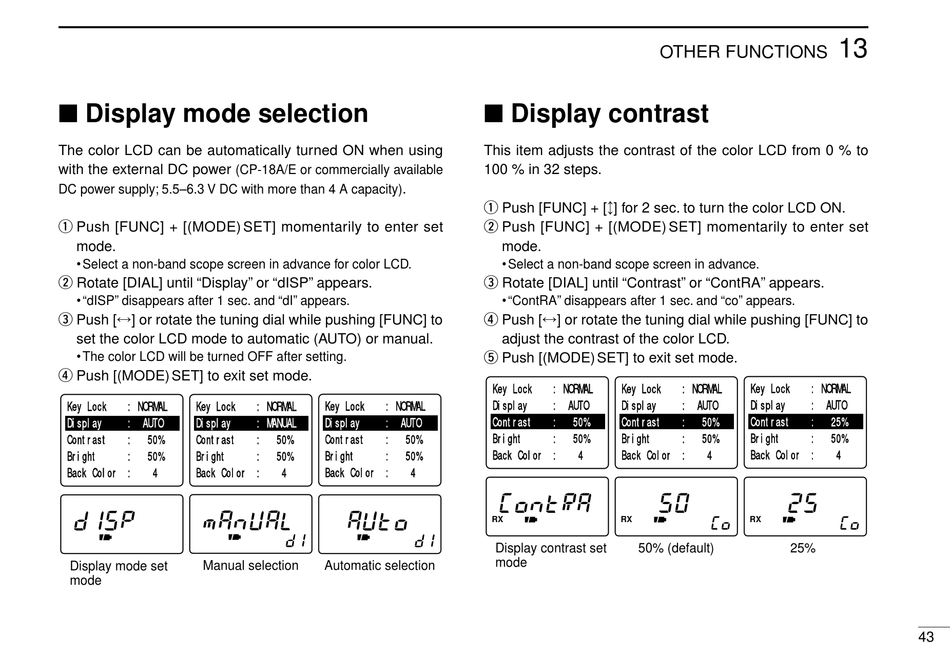

Display mode selection

The color LCD can be automatically turned ON when using
with the external DC power
(CP-18A/E or commercially available
DC power supply; 5.5–6.3 V DC with more than 4 A capacity)
q Push [FUNC] + [(MODE) SET] momentarily to enter set
mode.
• Select a non-band scope screen in advance for color LCD.
w Rotate [DIAL] until "Display" or "dISP" appears.
• "dISP" disappears after 1 sec. and "dI" appears.
e Push [↔] or rotate the tuning dial while pushing [FUNC] to
set the color LCD mode to automatic (AUTO) or manual.
• The color LCD will be turned OFF after setting.
r Push [(MODE) SET] to exit set mode.
Key Lock : NORMAL Key Lock
Display : AUTO Display
Contrast : 50% Contrast
Bright : 50% Bright
Back Color : 4 Back Color :
Manual selection
Display mode set
mode
.
: NORMAL Key Lock : NORMAL
: MANUAL Display : AUTO
Contrast : 50%
: 50%
: 50% Bright : 50%
Back Color : 4
4
Automatic selection
OTHER FUNCTIONS

Display contrast

This item adjusts the contrast of the color LCD from 0 % to
100 % in 32 steps.
q Push [FUNC] + [↕] for 2 sec. to turn the color LCD ON.
w Push [FUNC] + [(MODE) SET] momentarily to enter set
mode.
• Select a non-band scope screen in advance.
e Rotate [DIAL] until "Contrast" or "ContRA" appears.
• "ContRA" disappears after 1 sec. and "co" appears.
r Push [↔] or rotate the tuning dial while pushing [FUNC] to
adjust the contrast of the color LCD.
t Push [(MODE) SET] to exit set mode.
Key Lock : NORMAL Key Lock
Display : AUTO Display
Contrast : 50% Contrast
Bright : 50% Bright
Back Color : 4 Back Color :
RX RX
Display contrast set 50% (default)
mode
13
Key Lock : NORMAL
: NORMAL
: AUTO Display : AUTO
: 50% Contrast : 25%
: 50% Bright : 50%
4 Back Color : 4
RX
25%
