Pocket Beep Operation - Icom COMMUNICATIONS RECEIVER IC-R3 Instruction Manual

Tone Squelch: TSQL Tone Squelch: TSQL
Tone Freq. : 88.5 Tone Freq. :
Duplex : OFF Duplex
Offset Freq.: 0.600 Offset Freq.:
Scan Resume : 2SEC Scan Resume : 2SEC
Tone frequency set 88.5 Hz (default)
mode
• Available subaudible tone frequencies
67.0 82.5 100.0 123.0 151.4
69.3 85.4 103.5 127.3 156.7
71.9 88.5 107.2 131.8 159.8
74.4 91.5 110.9 136.5 162.2
77.0 94.8 114.8 141.3 165.5
79.7 97.4 118.8 146.2 167.9
" CONVENIENT
Store subaudible tone frequencies and tone squelch ON/OFF
settings in memories for easy recall.
The receiver has 50 tone frequencies and consequently
their spacing is narrow. Therefore, some tone frequencies
may receive interference from adjacent ones.
Tone Squelch: TSQL
88.5 Tone Freq. : 254.1
: OFF Duplex : OFF
0.600 Offset Freq.: 0.600
Scan Resume : 2SEC
254.1 Hz tone
(unit: Hz)
171.3 189.9 210.7 250.3
173.8 192.8 218.1 254.1
177.3 196.6 225.7
179.9 199.5 229.1
183.5 203.5 233.6
186.2 206.5 241.8
SUBAUDIBLE TONE OPERATION

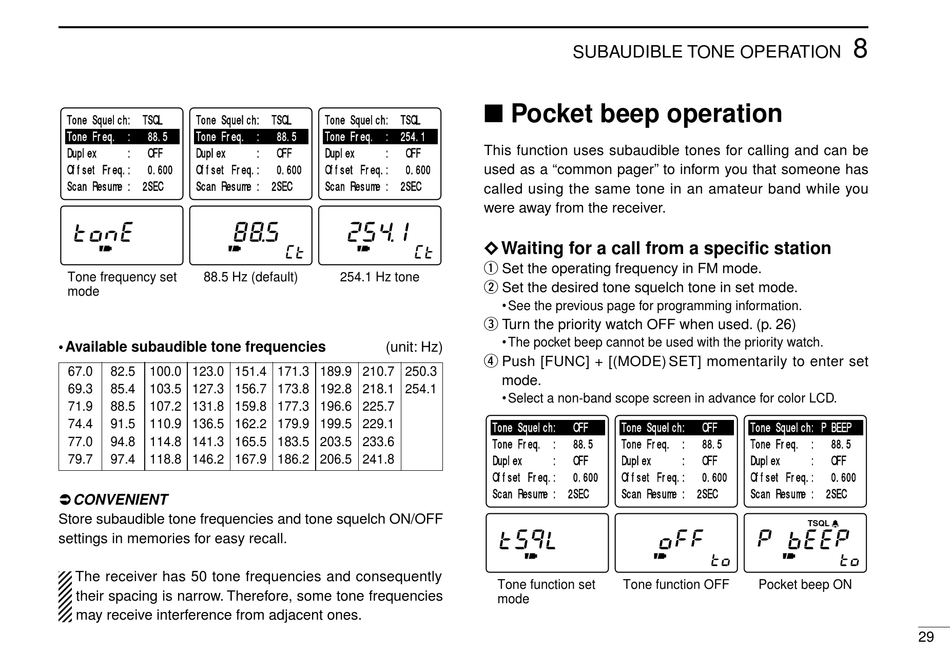

Pocket beep operation

This function uses subaudible tones for calling and can be
used as a "common pager" to inform you that someone has
called using the same tone in an amateur band while you
were away from the receiver.
◊ Waiting for a call from a specific station
q Set the operating frequency in FM mode.
w Set the desired tone squelch tone in set mode.
• See the previous page for programming information.
e Turn the priority watch OFF when used. (p. 26)
• The pocket beep cannot be used with the priority watch.
r Push [FUNC] + [(MODE) SET] momentarily to enter set
mode.
• Select a non-band scope screen in advance for color LCD.
Tone Squelch: OFF Tone Squelch:
Tone Freq. : 88.5 Tone Freq. :
Duplex : OFF Duplex
Offset Freq.: 0.600 Offset Freq.:
Scan Resume : 2SEC Scan Resume : 2SEC
Tone function set Tone function OFF
mode
8
OFF Tone Squelch: P BEEP
88.5 Tone Freq. : 88.5
: OFF Duplex : OFF
0.600 Offset Freq.: 0.600
Scan Resume : 2SEC
TSQL
Pocket beep ON
29
