DWG Series GSM/CDMA VoIP Gateway User Manual
channels communication based on certain protocol(TCP or UDP). If DMZ host and forwarding
rules have conflicts, will be determined by forwarding rules configurations.
4.5.6 Static route(Option under "route mode")
Static route is the route rules in IP communication. Generally speaking, no need to config static
route. Configuring static route is necessary in such conditions: when several network segaments
exist in LAN network and there's certain application between these network segament. Please
cancel "internet sharing" under " Network configuration" first, then configure the "static route".
In commly use, please don't configure static route. If static rule is wrong, the devices may not
work.
4.6 Mobile configuration
4.6.1 Basic configuration
Configuration details are as below:

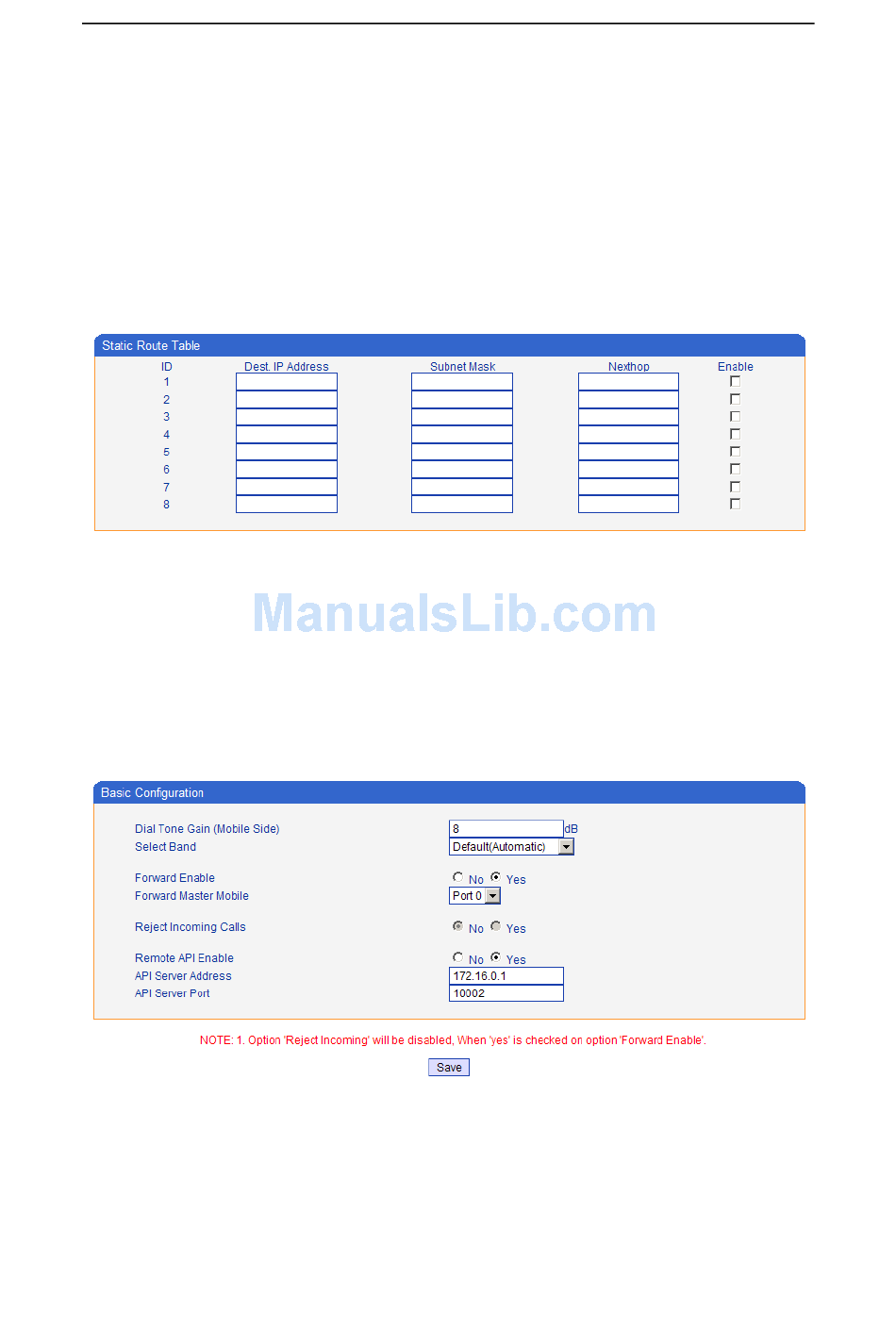

Figure 4‐3‐14 Configuration of Static route
Figure 4‐3‐15 Basic Configuration
22
