DWG Series GSM/CDMA VoIP Gateway User Manual
4.4 System Information
System information interface shows the basic information of status information, Mobile
information and SIP information.
4.4.1 System information
【MAC Address】Displays the current MAC of the gateway, for example: 00‐1F‐D6‐16‐O3‐7C;
【Network Mode】DWG2001/DWG2004/DWG2008 support two types network mode, which is
bridge and route modes;
【Network】shows IP address and subnet mask.
【DNS Server】Displays DNS server IP address in the same network with the gateway.
【System Up Time】shows the time period of the device running. For example,:1h: 20m, 24s;

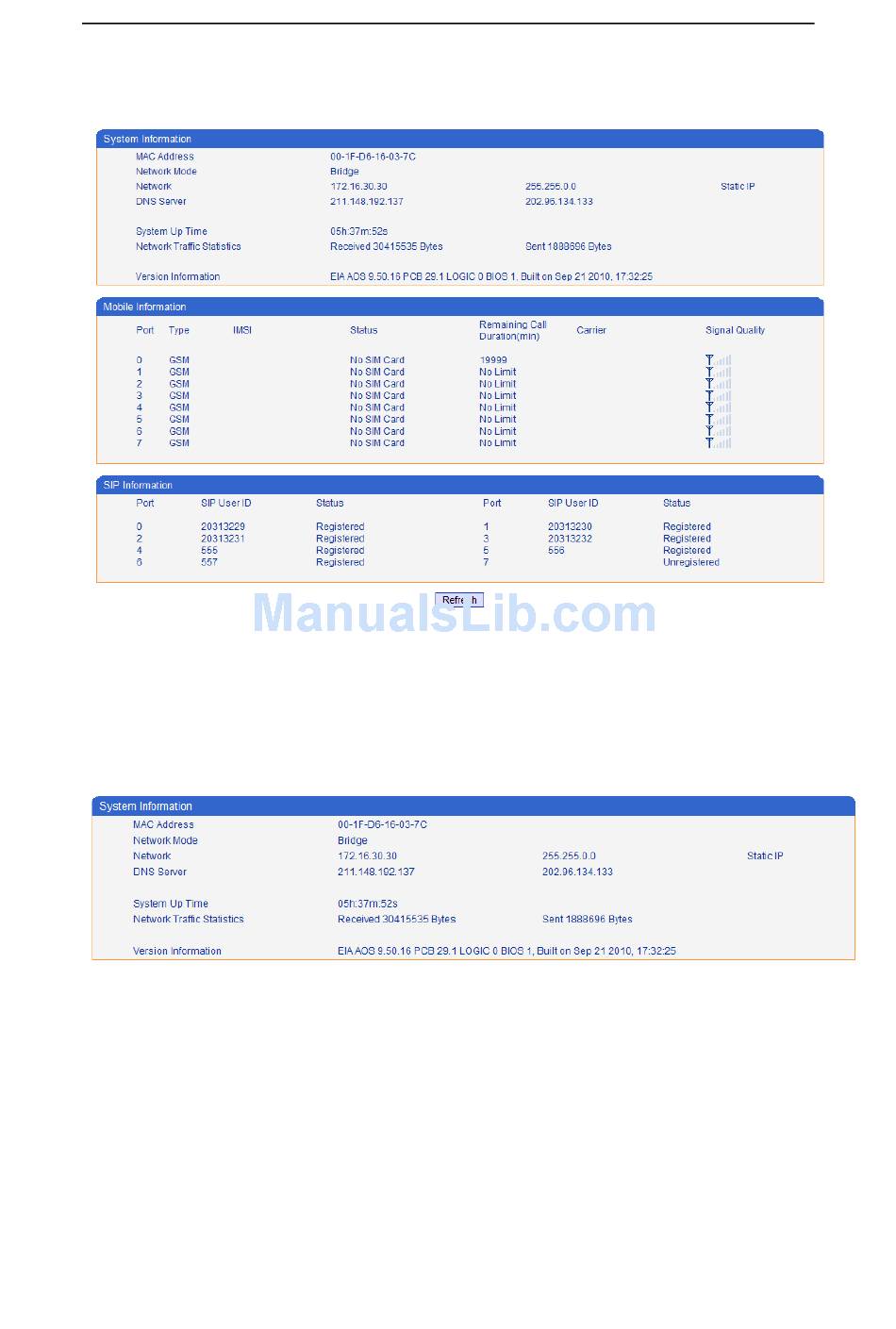

Figure 4‐3‐2 system information
Figure 4‐3‐3 system information
