Page 1

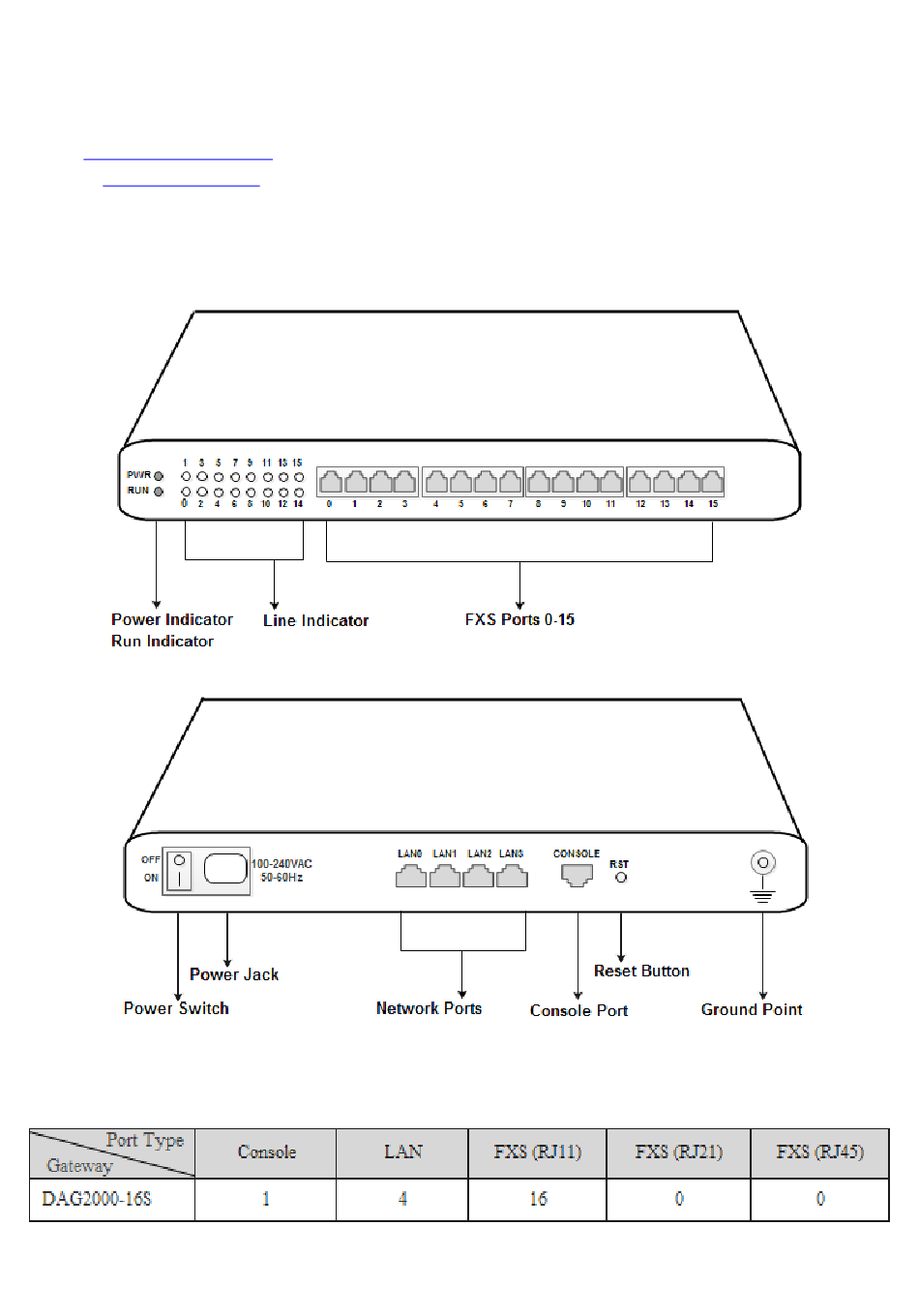

Thanks for Choosing Dinstar’s DAG2000-16S VoIP Gateway! Please read this installation guide carefully before install the gateway. If you need any technical support, please contact us. Tel: +86-755-61919966. Email: support@dinstar.com Website: www.dinstar.com DAG2000-16S Appearance Number of Ports...
Page 2
2. The adapter of DAG2000-16S accepts AC input voltage of 100-240V. Please ensure stable and safe power supply. 3. To guarantee stabilized running of DAG2000-16S, please ensure there is enough network bandwidth. 4. To ensure the gateway can work normally, you’d better install the gateway in a device room where temperature and humidity are appropriate.
Page 3
Telephone Connection Power Connection & Grounding Modify PC’s IP Address Modify the IP address of PC to make it at the same network segment with the DAG2000-16S gateway, since the default IP address of the gateway is 192.168.11.1. (1) On the PC, click “Network ...
Page 4
Modify IP Address of DAG2000-16S If you want to modify the IP address of DAG2000-16S, please click “Network Local Network” in the navigation tree on the left, and then input new IP address and DNS server address on the...
Page 5
Configure SIP Server Information Log into DAG2000-16S, and then click SIP Server in the navigation tree and then enter the address of the SIP server which is to be registered. Click Save in the last. 十年专注 铸就品质 Click Port in the navigation tree on the left, and then click Add. Input the SIP account and authentication password assigned by the SIP server.
Page 6
Basic Operations • Dial *158# to query the IP address of LAN port of DAG2000-16S; • Dial *114# to query the telephone number of a FXS port; • Dial *165*000000# to restore default IP address, username and password; • Restore factory default settings:(1)dial *166*000000#; (2)Press the RST button for 7 seconds;...
